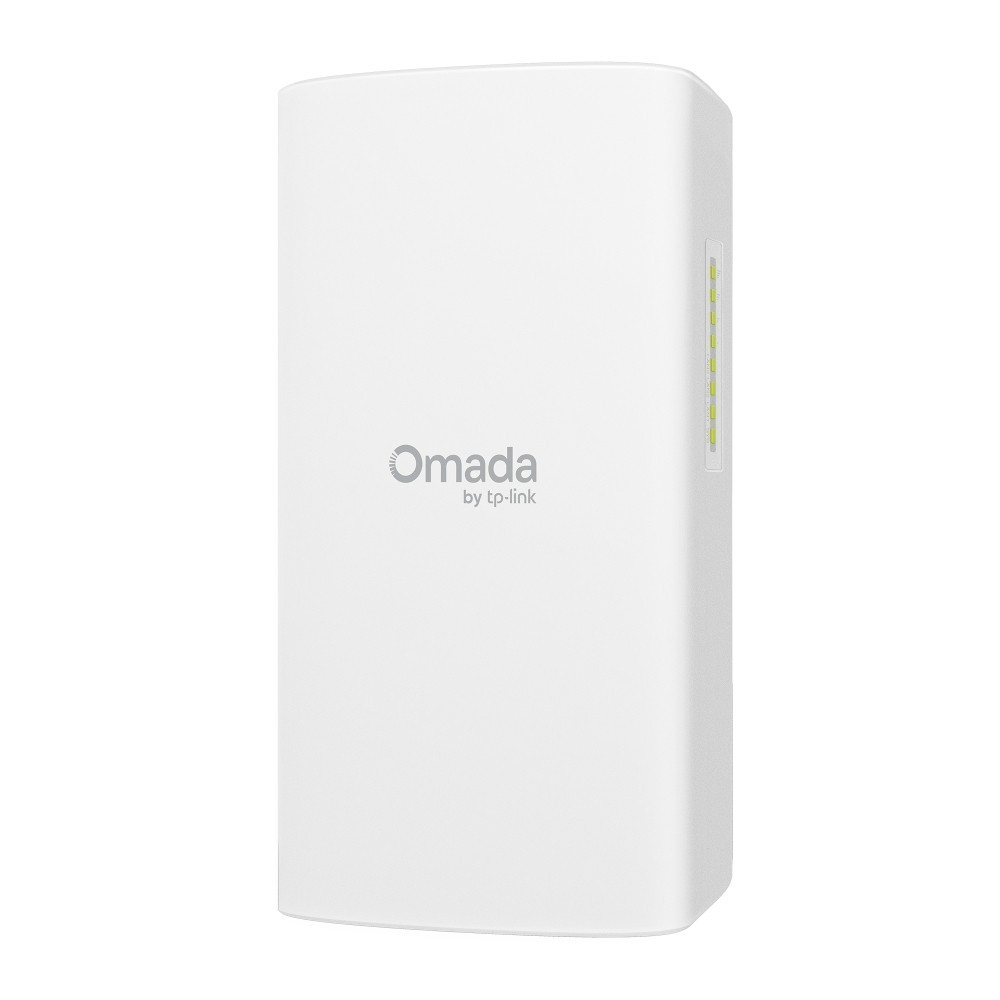

TP-Link Flex Bridge 5 | Omada 5 GHz 867Mbps Long-Range Wireless Flex Bridge
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
TP-Link Flex Bridge 5 | Omada 5 GHz 867Mbps Long-Range Wireless Flex Bridge
Price: US $149.99

Features:

  • Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging:Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.*
  • Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations.△
  • Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
  • Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
  • Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
  • Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.**
  • Flexible Power Supply Options: Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.
  • App-Guided Alignment for Optimal Performance: Simply bridge alignment with real-time signal strength visualization on the Omada app.
  • Remote Monitoring with Standalone & SDN Management: Use the Omada app for easy on-site setup-no internet required. For added flexibility, switch to Omada SDN, enabling cloud management via the Omada app or web portal for seamless control, and monitor from anywhere.

• Pairing Code Switch

• 802.3at/af PoE
• 24V Passive PoE (54V Passive PoE Adapter Included - For Dry Indoor Use Only)

PoE: 26.06W with PoE out

• 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas
• Beamwidth: Horizontal 40°, Vertical 18°

• 5 GHz

• Multiple SSIDs: 1
• Wireless Statistics
• Reboot Schedule
• RADIUS Accounting
• Static IP/Dynamic IP
• Rate Limit
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast

• Rogue AP Detection
• Wireless Encryption

<23dBm (5 GHz, band 1/2, EIRP)
<30dBm (5 GHz band3, EIRP)

• FCC:
<23.5dBm (5 GHz band1)
<25dBm (5 GHz band4)

• Omada Hardware Controller
• Omada Software Controller

• Installation Guide
• Mounting Kit
• Passive PoE Adapter
• Power Cord

• Contact discharge: ±4kV
• Common mode 10/700: ±6kV

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing
