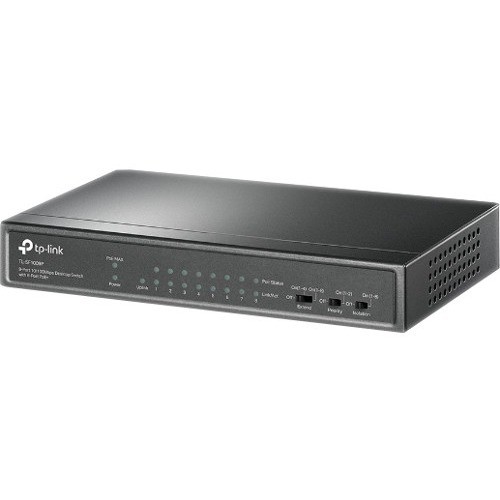

TP-Link TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - Limited Lifetime Protection (247181) TP-Link TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - Limited Lifetime Protection (247181)
International Customers: All electronic products are packaged for sale in the US with US voltage.
Package Contents: 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ Power Adapter Installation Guide
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Product Description
This item is brand-new, factory sealed.
9 10/100 Mbps RJ45 ports
8 PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports
Up to 250 m data and power transmitting range under Extend Mode
Priority Mode ensures high priority of ports 12 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8 PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority ports power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. HARDWARE FEATURES
Interface
9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate
1.3392 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1.8 Gbps
Max Power Consumption
3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected) SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1-2)
Isolation Mode Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1009P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0-40 oC (32-104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing Item Dimension (L"x W"x H")
12 x 9 x 3
Weight
3.00 LB
Warranty Information
Limited LifetimePackage Contents:
- 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
- Power Adapter
- Installation Guide
SpecificationManagement & ProtocolsManageableNoPower DescriptionPower SourcePower AdapterPoE Budget65 WPoE (RJ-45) PortYesPower Consumption3.60 WPhysical CharacteristicsProduct MaterialMetalForm Warranty3 YearInterfaces/PortsNetwork (RJ-45)YesUplink PortYesPort/Expansion Slot Details
- 8 x Fast Ethernet PoE+
- 1 x Fast Ethernet Network
Total Number of Network Ports9General InformationBrand NameTP-LinkMarketing Information Professional 9-Port Unmanaged Switch with 8 PoE+ Ports Plug and Play, with PoE Transmission for Surveillance up to 250 m TL-SF1009P Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 8? PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. Plug and Play, No Configuration Required Ideal for IP Surveillance - Up to 250 m Transmissions With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas. Ideal for IP Surveillance-Higher Performance and Security Priority Mode and Isolation Mode make surveillance smoother and safer. Priority Video Quality Guaranteed Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on. One-Click Traffic Separation for Ports 1-8 With one click, Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. Intelligent Power Management When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. Durable Metal Casing The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on. More from the Manufacturer Product TypeEthernet SwitchProduct Name9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ManufacturerTP-LINK Technologies Co., LtdManufacturer Part NumberTL-SF1009PProduct ModelTL-SF1009PMedia & PerformanceEthernet TechnologyFast EthernetMedia Type SupportedTwisted PairNetwork Technology10/100Base-TTitleProduct TitleTP-Link TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+ - Limited Lifetime Protection (TLSF1009P)Network & CommunicationLayer Supported2Networking Standards
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3x
