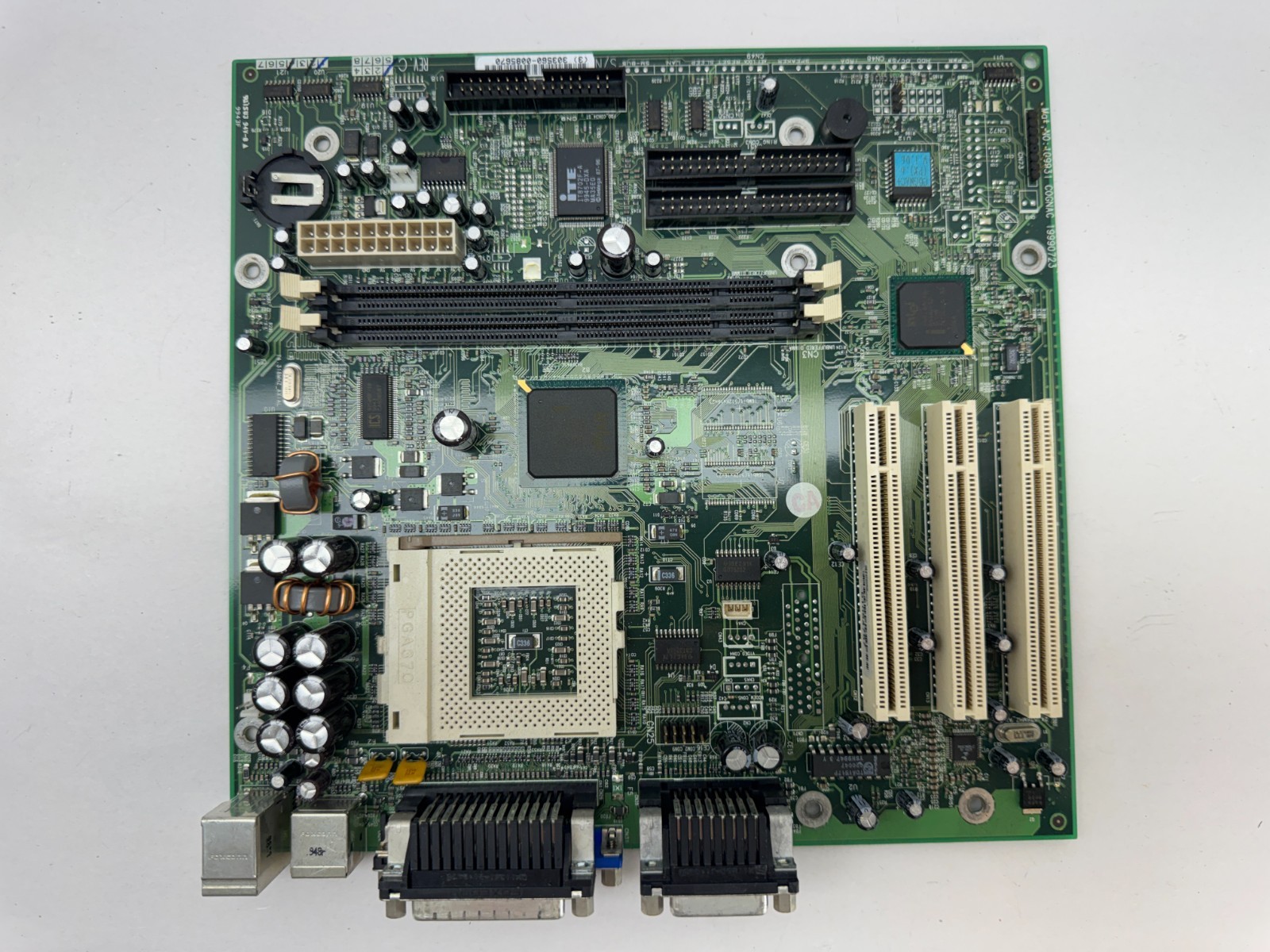

TriGem Cognac Socket 370 Micro ATX Motherboard - Intel 810 Chipset
Original OEM Micro-ATX motherboard manufactured by TriGem Computer, commonly found in vintage HP Pavilion and eMachines desktop systems. Powered by the Intel 810 (Whitney) chipset featuring integrated Intel 3D graphics, Socket 370 processor support, dual 168-pin SDRAM DIMM slots, and onboard AC'97 audio. Ideal for period-correct Windows 98SE and Windows ME retro PC builds and OEM desktop restorations.
Key Specifications:- Brand / Manufacturer: TriGem Computer, Inc.- Model / Codename: Cognac (PCB Marking: Mat NO: 109931 COGNAC 19990723)- Hardware Revision: Rev. C- Serial Number: (3) 303560-0085670- CPU Socket: Socket 370 (PGA370)- Supported Processors: Intel Celeron (PPGA Mendocino / FC-PGA Coppermine-128) and Intel Pentium III (100MHz FSB)- Front Side Bus (FSB): 66 / 100 MHz- Chipset: Intel 810 (FW82810 GMCH / FW82801 ICH)- Integrated Graphics: Intel DirectAGP 3D Graphics via GMCH with rear VGA port- Memory: 2x 168-pin SDRAM DIMM sockets (PC100 SDR SDRAM, up to 512MB)- Expansion Slots: * 3x 32-bit PCI slots * 1x AMR (Audio/Modem Riser) slot- Integrated Audio: Crystal / Cirrus Logic CS4299 AC'97 compliant audio codec- Super I/O Controller: ITE IT8702F-A- Storage Interfaces: 2x Ultra ATA IDE channels (40-pin), 1x Floppy drive connector (34-pin)- Power Connector: Standard 20-pin ATX power connector- RTC Battery: Standard CR2032 socket- Form Factor: Micro ATX (approx. 9.4" x 9.4" / 23.8 cm x 23.8 cm)
Rear Panel I/O Ports:- 2x PS/2 Ports (Keyboard & Mouse)- 2x USB 1.1 Ports- 1x VGA Video Output (DB-15 female, blue)- 1x Parallel (LPT / Printer) Port (DB-25 female)- 1x Serial (COM) Port (DB-9 male)- 1x Game / MIDI Port (DB-15 female)- 3x 3.5mm Audio Jacks (Line-in, Line-out, Microphone)
Package Includes:- 1x TriGem Cognac Rev. C Socket 370 Motherboard (as pictured)
