NOS open box Tripp Lite B007-008 8-port rackmount KVM switch with on-screen display. Box has been opened for photos. Switch, manual, interlocking feet, and power adapter are present and appear unused. No server cables included (P753-series 3-in-1 PS/2 kits are sold separately).
Manufacturer: Tripp Lite, now part of Eaton. Made in China. RoHS compliant. UPC 037332043573
Controls up to 8 computers from one PS/2 keyboard, PS/2 mouse, and VGA monitor. Cascade additional B007-008 units to 512 computers. Port select by front pushbuttons, hotkeys, or OSD. Autoscan intervals 3, 5, 10, 15, 20, 30, 40, or 60 seconds. Password security. Keyboard and mouse emulation for boot. Two LEDs per port (online and selected) plus power LED.
- Computers: 8 direct, 512 cascaded
- Users: 1 local
- Console: 1x HD15 female VGA, 1x mini-DIN6 PS/2 keyboard, 1x mini-DIN6 PS/2 mouse
- CPU ports: 8x HD15 male VGA, 8x mini-DIN6 keyboard, 8x mini-DIN6 mouse
- Video: VGA / SVGA / Multisync, up to 1920 x 1440, 180 MHz bandwidth
- Power: DC 9V, 1.08 W max. External adapter included (labeled 0AD1-0909-06EG, UL/CSA, Made in China). Short runs can operate from the keyboard port; adapter is required for daisy-chain or long cables
- Housing: steel, black, 1U
- Size: 19 x 6 x 1.75 in
- Weight: about 6.25 lb (shipping carton about 8 lb, 6 x 22.5 x 10 in)
- Operating: 41–104°F, 0–80% RH non-condensing
Compatible with major OS of the era except native Mac and Sun. USB computers need a PS/2 adapter such as Tripp Lite B015-000. Optional IP access was via B051-000. Cables are not included.

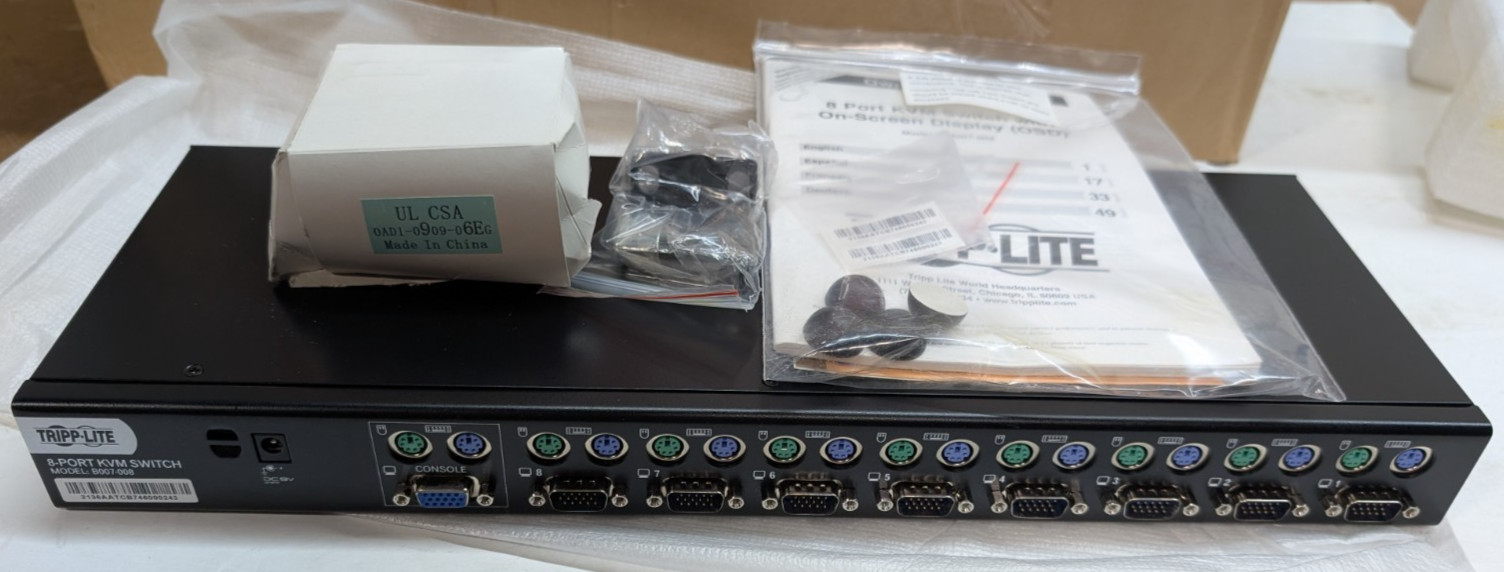

What you get: B007-008 switch, original carton, user manual, interlocking feet, DC 9V adapter, and small hardware bag as shown. No P753 KVM cable kits.
