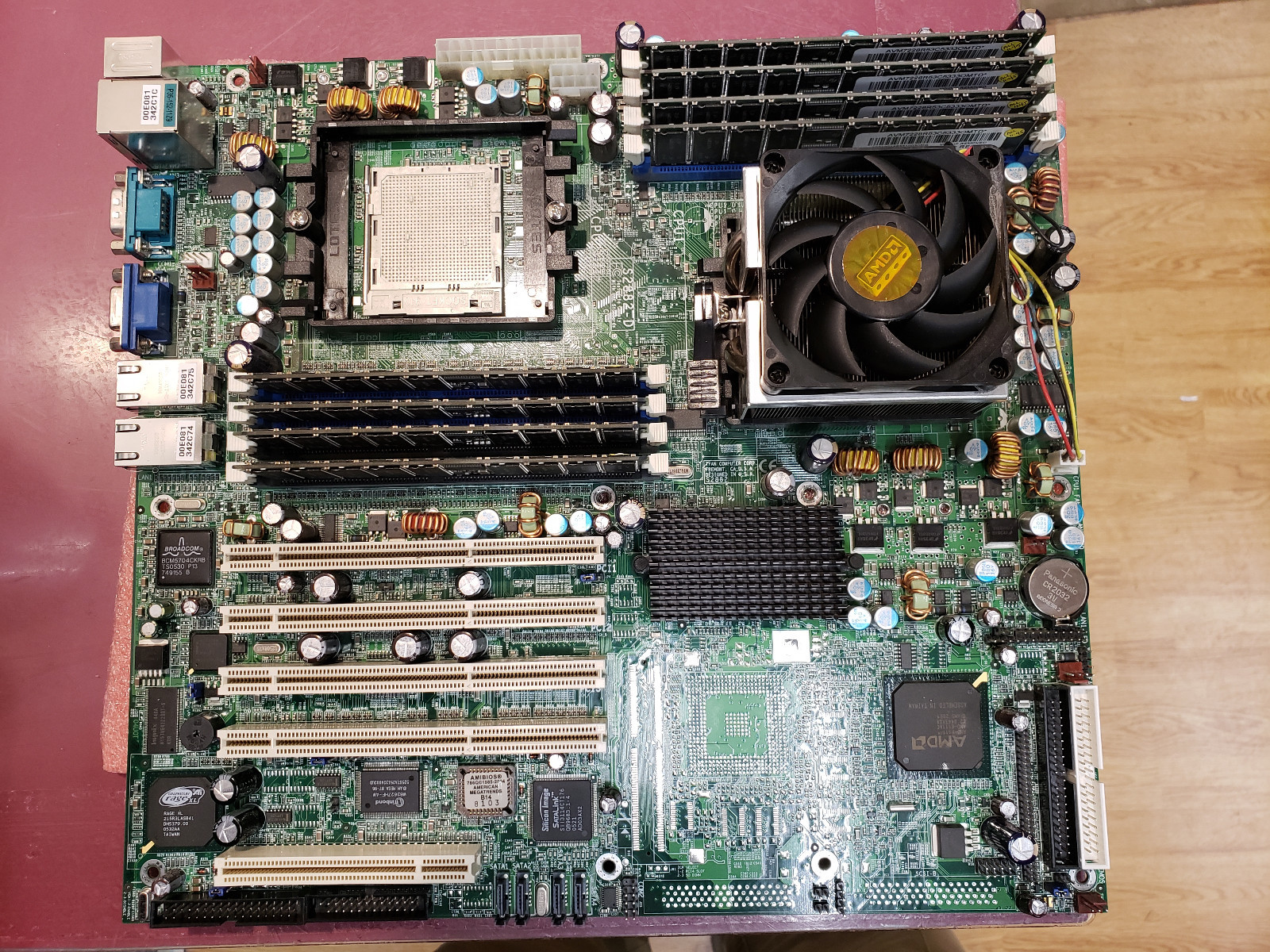

This listing is for pulled a Server board that includes Dual Core Opteron 275DC processor, Heatsink, I/O back Plate, 8GB Registered DDR Server ram that was on the board when it was pulled from service. Original Manual, original Driver CD, still in package cable set for I/O and floppy.
This was pulled from our data center from a working server. It is sold as is, but it was pulled working. Images are actual board and everything we will send along with it. We are including manual, original box, and backplate for I/O as well. Any questions feel free to email us.
We are glad to ship anywhere in the world, but shipping outside of the continental US will be at the buyers expense and will be extra charge over the pricing. The shipping cost is TBD and will be based on where it is being shipped to outside the US. In US we will ship for free with buy it now option.
Specifications
Processor
• Dual µPGA 940-pin ZIF sockets
• Up to two Opteron 200 series processors
• Supports Single and Dual Core processors
• Two onboard 3-phase VRMs
• 128-bit DDR dual-channel memory controller
(integrated in CPU)Chipset
• AMD-8131™ HyperTransport™ PCI-X Tunnel
• AMD-8111 HyperTransport™ I/O Hub
• Super I/O ASIC
• Analog Devices ADM1027 Hardware Monitoring ICMemory
• 128-bit dual channel memory bus
• Eight 184-pin 2.5-Volt DDR DIMM sockets
• Supports up to 32GB of Registered DDR
• Supports ECC type memory modules
• Supports DDR 266/333/400
• Supports Single/Dual/Quad Rank mem. modulesExpansion Slots (Total of five usable slots)
• Two independent 64-bit PCI-X buses
- Two 100/66/33 MHz PCI-X slots at
PCI-X bus A
- Two 133/100/66/33 MHz PCI-X slots at
PCI-X bus B
• One legacy 32-bit 33 MHz (5V) PCI slot Back Panel I/O Ports
• Stacked PS/2 mouse and keyboard ports
• Stacked two USB v1.1 ports + 1 RJ45 10/100
Base-T port w/ activity LED
• One 9-pin UART serial port
• One 15-pin VGA port
• Two RJ45 10/100/1000 Base-T ports with
activity LEDIntegrated I/O
• One floppy connector supports up to two drives
• One 9-pin serial ports connector
• One 25-pin parallel port connector
• Four USB v1.1 ports
• Three front panel LAN activity LED connectorsSystem Management
• Two 3+1-pin CPU fan header with tachometer
input and smart fan control (PWM)
• Five 3-pin system fan headers with tachometer
input, three of them with smart fan control
• One 2-pin Chassis Intrusion header
• Temperature, voltage and fan monitoring
• Watchdog timerIntegrated PCI Graphics
• ATI® RAGE™ XL PCI graphics controller
• 8MB Frame Buffer of video memory
Integrated LAN Controllers
• Broadcom BCM5704C dual-channel GbE
- Two RJ-45 LAN connectors with LEDs
- Connected to PCI-X Bridge A
• Intel 82551QM 10/100 LOM
- Operating at 32-bit/33MHz PCI busIntegrated Enhanced IDE Controller
• Dual IDE channels supports up to four EIDE
devices
• Supports for UDMA 33/66/100/133 IDE drives
and ATAPI compliant devicesIntegrated SATA Controller
• Silicon Image Sil3114 SATA RAID Accelerator
• Supports S-ATA 1.0 specification
• Supports 4 channel SATA port for up to four
SATA devices
• Supports RAID 0, 1, 0+1
• Connected to legacy 32-bit 33MHz PCI busIntegrated Dual Channel SCSI (option)
• Adaptec AIC-7902W Dual-Ch.
U320 SCSI controller
• Connects to PCI-X Bridge A
• Adaptec® ZCR card supportIntelligent Platform Management Interface Header
• M3291, IPMI 2.0 Remote System Mgmt Card
- Renesas H8S2167 BMC Controller
- Monitoring mother board hardware
monitor sensor
- Serial-over-LAN
- Remote power control
- M3291 card is optionalBIOS
• AMI® BIOS 8.0 on 4Mbit LPC Flash ROM
• Supports APM 1.2 & ACPI 1.0
• Power Management S1, S4, and S5 support Form Factor
• Extended ATX footprint
(13" x 12", 304.8 x 330.2 mm)
• EPS12V universal power connectorsRegulatory
• FCC Class B (Declaration of Conformity)
• CE (Declaration of Conformity).
