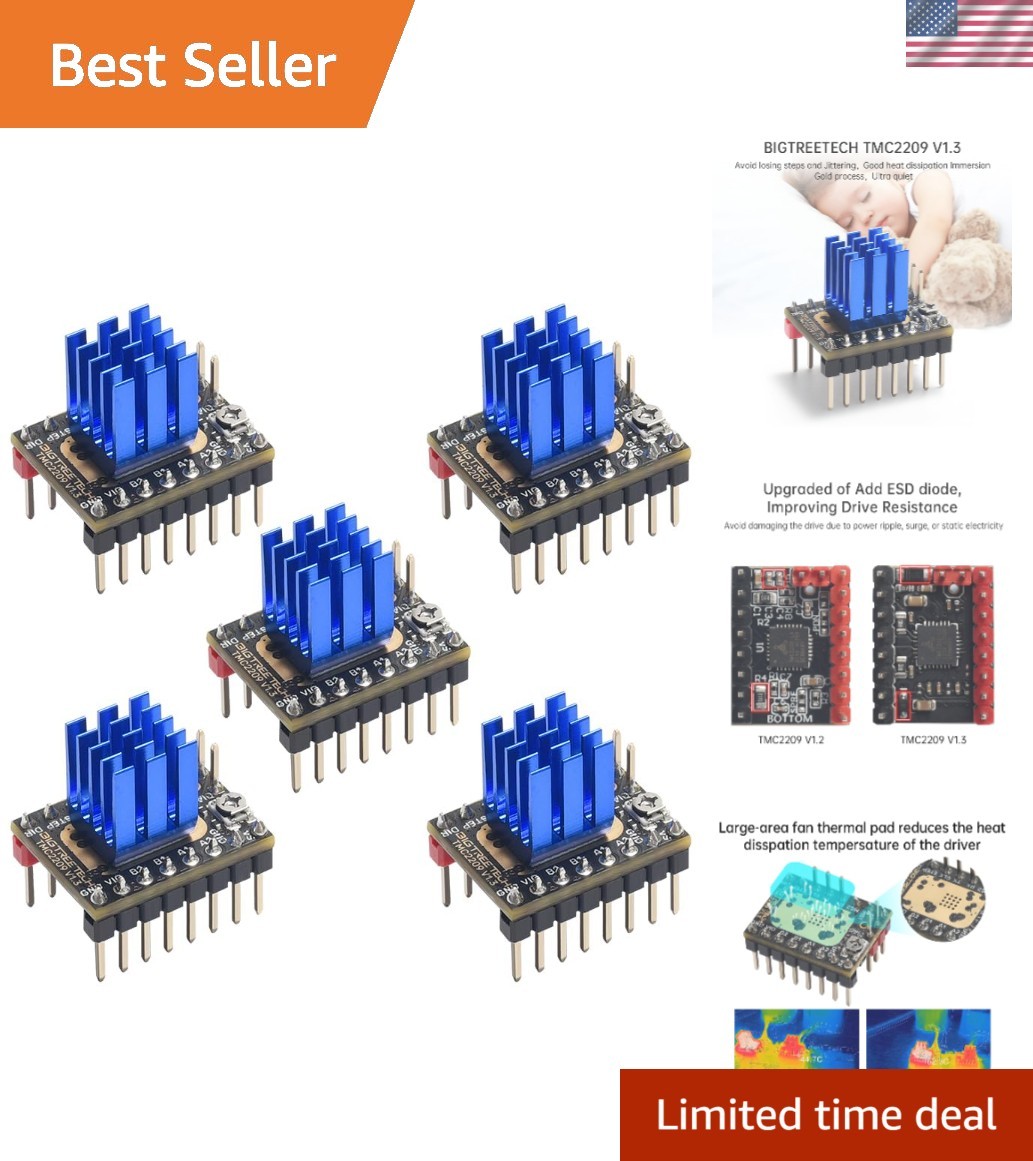

Stepper Motor Driver, UART/Step/DIR Mode

Ultra-silent Stepper Motor Driver: tmc2209 stepper motor driver adopts StealthChop2 silent motor operation technology is an ultra-silent motor driver IC for two-phase stepper motors. Continuous current up to (peak , voltage ranges from to the maximun output of 28v. It can operate bipolar stepper motors from 1 to 1/256 step modes

BTT TMC2209 stepper motor driver support UART, STEP/ DIR Mode, except that you need to modify the firmware for the mode you use. for detailed tutorials, please refer to the GITHUB instructions

Sensorless Homing: BTT tmc2209 stepper motor driver uses Stallguard4 locked motor technology to detect changes in motor current, providing an abnormal signal when the motor rotates abnormally. And use this measurement to detect the end of axis' stroke and produce 3D printers without limit switches

Widely Compatible: TMC 2209 stepper driver with most 3D printer motherboards on the market, such as btt octopus pro, skr turbo/skr 3, Manta M4P/M5P/M8P, MKS Gen L... etc. It saves the expensive cost of redesign. It can perfectly replace the non-silent TMC2100/A4988/DRV8825/LV8729 stepper driver and is the most cost-effective choice

Avoid losing steps and jittering: The motor controlled by the PWM chopper mode operated more smoothly and without jitter. It can effectively avoid problemsuch as running deviation losing step and fault caused by the overlode of the chip. Better printing effect

After-sales service: The manual and installation instructions have been uploaded to Github. If you have any problems during use, please tell us through

stepper motor driver adopts StealthChop2 ultra-quiet technology. It is an ultra-silent motor driver IC for two-phase stepper motors. Its continuous drive current is 2A and peak current is Compared with , the driving current of this IC is not only improved by , but also this IC increases the function of locked-motor .
