Features:

⭐Upgrade to Next-Gen WiFi 6E: Comes with a greater capacity and improved performance, this WiFi 6E network card supports the latest 802.11ax technology, such as OFDMA, MU-MIMO, 1024QAM, Target Wake Time(TWT). It delivers a high-speed data rate even in dense or congested environments and gives you an incredibly fast gaming experience with ultra-low latency.

⭐Lag-Free Connection: Intel AX210 chipset extends WiFi into 6GHz band, updating your wifi to tri-band with maximum speeds up to 574Mbps on 2.4GHz, 2400Mbps on 5Ghz, 2400Mbps on 6Ghz. 2.4GHz for the long range transmission, 5GHz for gaming and 4K streaming, while 6GHz is ideal for ultra-smooth and real-time gaming or an immersive VR experience.

⭐Bluetooth 5.3 & WPA3 Security: The newest BT5.3 provides a powerful wireless data connection between your computer and Bluetooth enabled devices, with 2x faster transmission speeds, 4x greater range. In addition, advanced WPA3 security protocol greatly protects the network from hackers and malware, letting you relax with a peace of mind and just enjoy the high-speed WiFi.

⭐High Gain Antennas & Magnetized Base: Two external 5dBi antennas ensure strong signal reception and transmission, greatly increasing network coverage for a smoother online experience. With a magnetized base and 3.6ft RF cable, you can place it anywhere--your desktop or the computer chassis, to get optimal wireless signal. Easily install with the standard or low profile bracket.

⭐Compatiblity & Warranty: Compatible with Windows 10/11, Linux for desktop PC, you can get the driver from our website. Works with PCIe X1/X4/X8/X16 slots( Not for PCI slot). We provide 12-month worry free warranty(extra 6 months for registered members) and life-long technical support, just feel free to contact us if you have any problem.

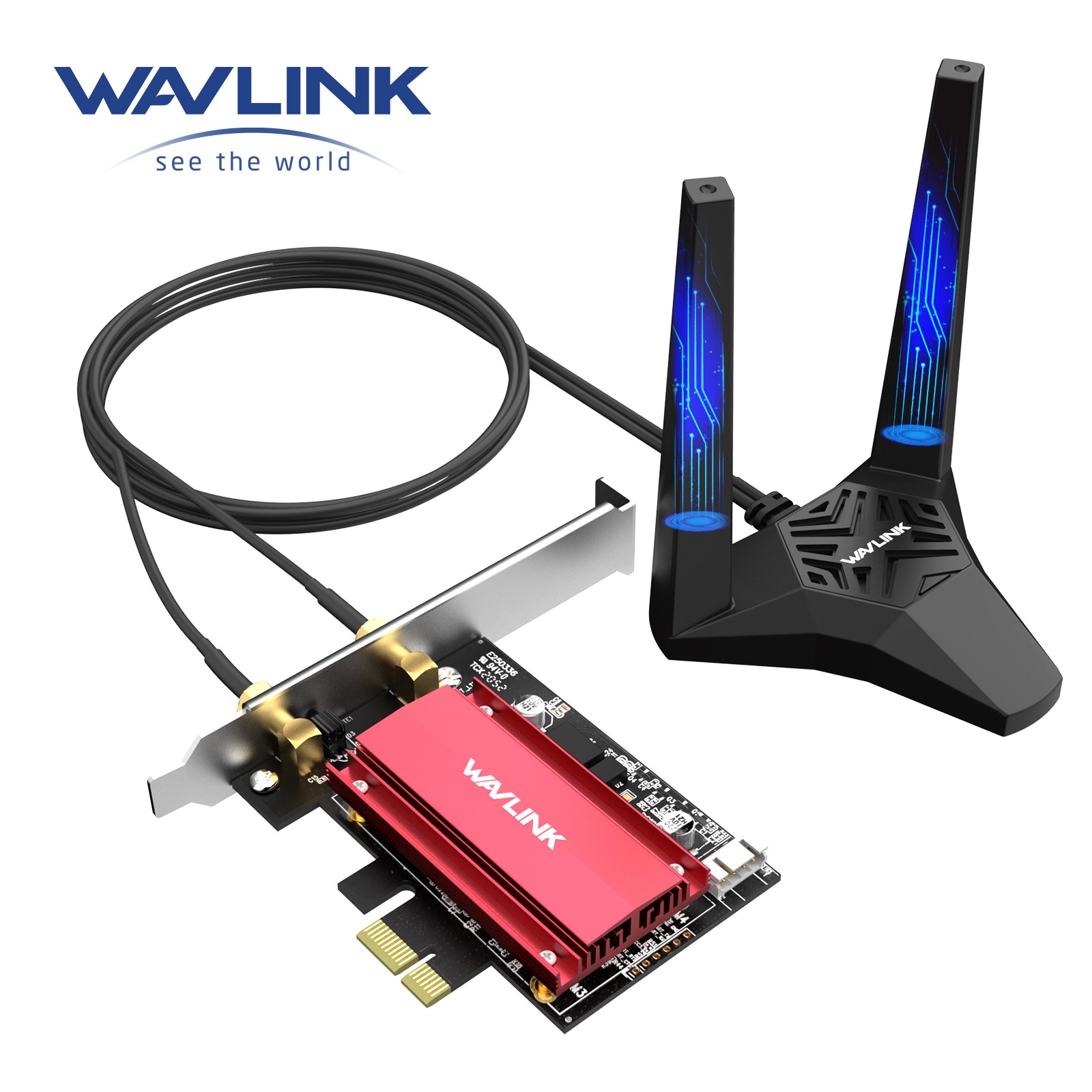

Wavlink Wi-Fi 6E AX5400 PCIe Tri-band WiFi Adapter with Magnetic Antenna Base--Soaring to New Height!

Product Overview
Wavlink Tri-Band PCI-E is an AX5400 wireless adapter for desktops that supports the latest Bluetooth 5.3. The wireless adapter features stable signal, high speed rate and superior performance. Compliant with 802.11 ax specification,the wireless adapter supports 2.4G, 5G and 6G bands. With 1024-QAM and MU-MIMO technology, WL-WN675X3 delivers wireless signal faster and more effectively by cooperating with an MU-MIMO compatible router.

Latest Bluetooth 5.3
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.2. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Compatible OS
Support Windows 10/11 64-bit, Linux
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

WPA3 Security
The latest WiFi security protocol, WPA3, brings new capabilities to improve cyber security. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Robust Connection with Dual High-Gain Antennas
Two 5dBi high-performance antennas with a magnetized base extend your existing WiFi reception capabilities by allowing you to stream throughout your home. Place the antenna base anywhere on your desktop to find the optimal location for signal reception.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Specification
Product Model: WN675X3(chipset: Intel AX210)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 2400Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 1024QAM, Target Wake Time(TWT)
Support System: Win 11/10 (64 bit), Linux
Bluetooth Version: Bluetooth 5.3
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA/ WPA2/ WPA3, WPA-PSK/ WPA2-PSK Encryption

Package Contents
-1x WiFi 6E AX5400 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna
-1x Low Profile Bracket
-2x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. Recommended to use a wifi6 or wifi6e compatible router for faster wireless speed and better network performance of our PCIE wifi adapter.
3. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
4. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
5. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
6. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
7. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.

⭐Pioneering Wi-Fi 7 Technology: Empowered by Wi-Fi 7, this card unleashes the complete capabilities of the 6 GHz band, offering outstanding bandwidth and dedicated, congestion-free channels tailored for your desktop. With enhancements like 4096-QAM and 320MHz, this adapter achieves staggering wireless speeds, enabling seamless playback of multiple media streams at once.

⭐Unmatched Tri-Band Speed: The Intel BE200 chipset takes your WiFi to the next level by extending it into the 6GHz band. This tri-band capability enables maximum speeds of up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and another 5800Mbps on 6GHz. Meet the use of high bit rate 4K/8K video, VR/AR applications, remote working, video conferencing and cloud computing scenarios.

⭐Bluetooth 5.4 & WPA3 Security: The latest BT5.4 technology revolutionizes your wireless data connection between your computer and Bluetooth-enabled devices. With 2x faster transmission speeds and a 4x greater range, you can experience seamless connectivity and enhanced performance. Additionally, the advanced WPA3 security protocol ensures robust protection against hackers and malware, providing a secure network environment.

⭐320MHz Transfer Rate & 4K-QAM Modulation: Wi-Fi 7 makes a further breakthrough based on Wi-Fi 6/6E. The High Band Simultaneous (HBS) Multi-Link technology can double the potential channel bandwidth to a maximum of 320MHz. 4K-QAM technology packs more data into the waveform signal, featuring faster data transfer rate and better overall network performance.

⭐Wider Coverage & Compatiblity: Boost your Wi-Fi reception using two high-performance, multi-directional antennas with a magnetized base. Adjust the antenna base to find the optimal signal reception location on your desktop. This device is compatible with Windows 10/11 for desktop PCs, and you can download the driver from our website. It works with PCIe X1/X4/X8/X16 slots (Not compatible with AMD motherboards).

WAVLINK Wi-Fi 7 BE8800 PCIe Tri-band WiFi Adapter--Innovative Wireless Connectivity!
WAVLINK Wi-Fi 7 Tri-Band PCI-E is a BE8800 wireless adapter for desktops that supports the latest Bluetooth 5.4. It has the MLO feature that effectively reduces signal interference and transmission delays, providing a faster and more reliable wireless networking experience. Compliant with 802.11 be specification,the wireless adapter supports 2.4G, 5G and 6G bands. With 4096-QAM and MU-MIMO technology, WN685BE3-A delivers wireless signal faster and more effective by cooperating with an MU-MIMO compatible router.

Latest Bluetooth 5.4
Solve the problem of a poor signal by achieving 2x quicker speeds and 4x greater coverage than BT4.0. Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard.

Powerful BE200 Chip
The BE200 incorporates the latest IEEE Wi-Fi specification of 802.11BE, introducing the new band extension for Wi-Fi: UHB (Ultra High Band).

Compatible OS
Support Windows 10/11 64-bit
*Please note that to utilize 6GHz band, the user must be on Windows 11 version.

Adjustable Antennas for Peak Performance
Easily find the optimal location for the strongest Wi-Fi signal with adjustable, high-performance antennas with magnetic base.

Dual Brackets
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Important Note
We put plastic film on its PCI-e interface for protection before the product is shipped. Please remove it before connecting to the PC's PCI-e slot.

Steps to Install the Wi-Fi Card
1. Power off the PC, open the case, find one available PCIe slot.
2. Insert the PCIe into the corresponding slot. Works with PCIe x1, x4, x8, x16.
3. Plug the BT cable into the 9-pin USB connector on the motherboard and the 4-pin connector on the card.
4. Install the antennas, adjust the dock accordingly for better signal.
5. Download and install the driver from WAVLINK official website. Then, enjoy！

Specification
Product Model: WN685BE3-A(chipset: Intel BE200)
Transmission Rate: 2.4GHz: 574Mbps, 5GHz: 2400Mbps, 6GHz: 5800Mbps
Protocol Standard: support IEEE 802.11a/b/g/n/ac/ax/be
Frequency Band: 2.4GHz, 5GHz, 6GHz
Technical Support: MU-MIMO,OFDMA, BSS Coloring, 320MHz, 4096QAM, Target Wake Time(TWT), Multi Link Operation(MLO), Multi-RU, Enhanced Multi-Link Single Radio(eMLSR)
Support System: Win 11/10 (64 bit)
Bluetooth Version: Bluetooth 5.4
Interface: Compatible with PCI-E X1/X4/X8/X16
Wireless Security: WPA3/WPA2 encryption

Package Contents
-1x WiFi 7 BE8800 PCIe Adapter
-1x Bluetooth Cable
-1x External Antenna Dock
-1x Low Profile Bracket
-3x Screws
-1x Drivers Download Card
-1x User Manual

Warm Tips
1. For desktops only. A bluetooth power cable needs to be connected to the motherboard 9-pin interface, or the bluetooth function won't work.
2. This Wi-Fi card will not boost the speed of the original router, which only helps your computer to receive a better signal and speed of the router(Increase the maximum wireless bandwidth limit).
3. It has nothing to do with the quality of this adapter when you can't get the maximum speed. The network environment, router, barriers, laptop and PC 's internal memory…the interference of many factors can affect the speed.
4. Please turn off the built-in Wi-Fi when using on a desktop pc.( If there is a built-in Wi-Fi function on your desktop pc).
5. Please note that to utilize 6GHz band, the PC must be on Windows 11 version.
6. Please remove the plastic film on gold-plated fingers before connecting to the PC's PCI-e slot.
