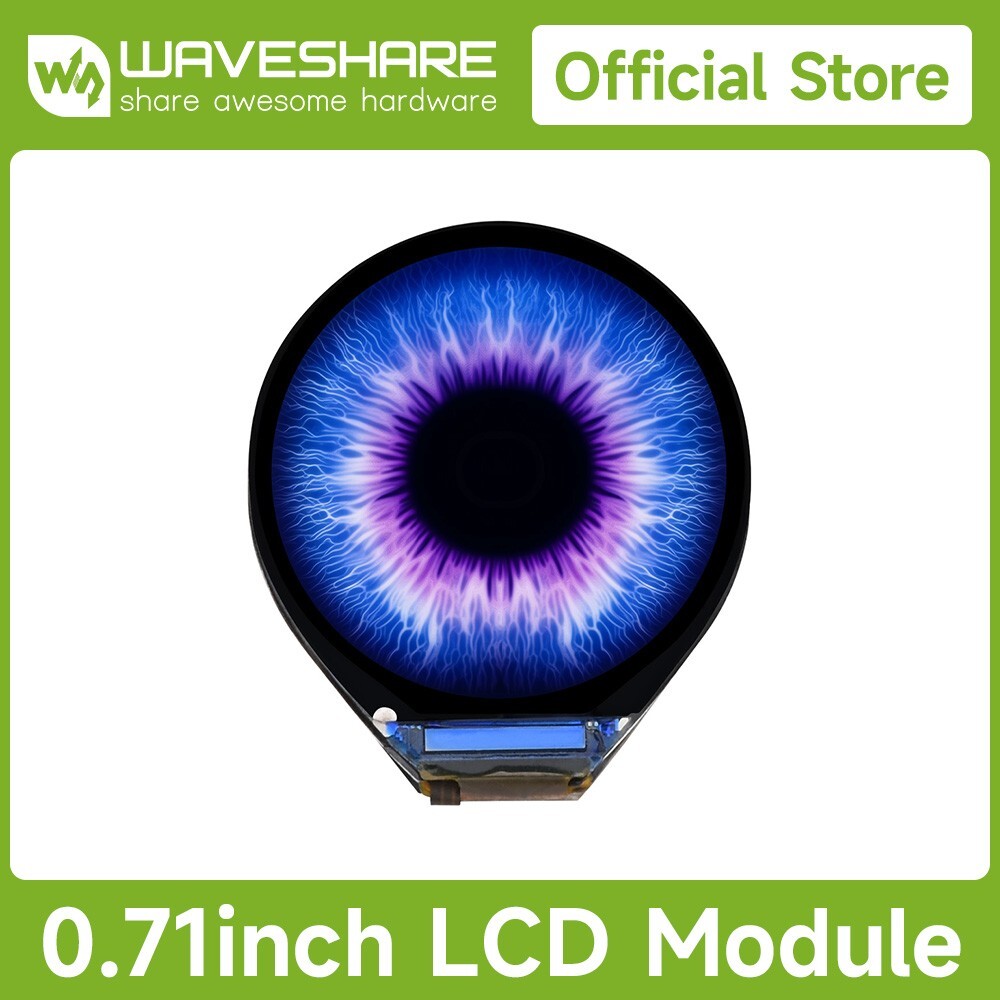

Waveshare 0.71inch Round LCD Display Module, 160��160 Resolution, SPI 65K colors
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 0.71inch Round LCD Display Module, 160��160 Resolution, SPI 65K colors
Price: CN $16.52
Description
0.71inch Round LCD Display Module, 160×160 Resolution, SPI Interface, 65K colors0.71inch LCD Display Module

IPS Panel, 160×160 Resolution, Embedded GC9D01 Driver, Using SPI Bus



  • Size0.71"
  • Display Color65K colors

  • Display PanelIPS
  • InterfaceSPI
  • Features at a glance
    • Adopts 0.71inch round LCD display, IPS panel, wide viewing angle
    • 160×160 resolution, 65K colors, clear and colorful displaying effect
    • SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

    SpecificationsOperating voltage3.3V / 5VResolution160 × 160 pixelsCommunication Interface4-wire SPIDisplay size18 × 18 (mm)Display PanelIPSPixel pitch37.5 × 112.5 (μm)DriverGC9D01Dimensions20.12 × 22.3 (mm)
    Controlled via SPI Bus

    supports controller boards like Raspberry Pi Pico / ESP32 / Arduino


    Hardware connection

    * for reference only, please refer to the Package Content for detailed part list


    Outline dimensions
    Resources & Services
    Package Content

    Weight:0.007 kg

    1. 0.71inch LCD Module x1
    2. SH1.0 8PIN cable x1
    3. Convex lens x1
