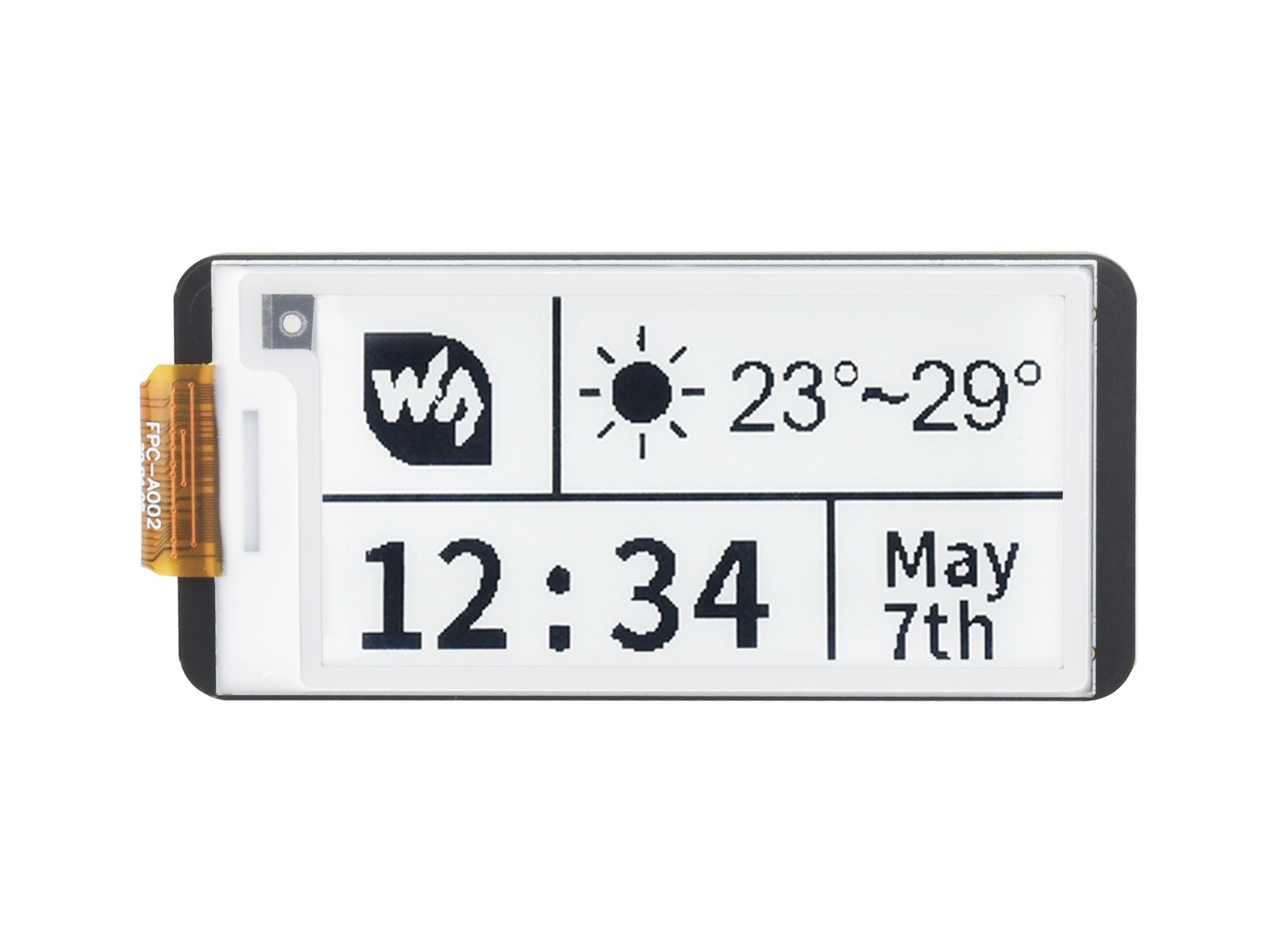

2.13inch E-Paper HAT+ For Raspberry Pi, E-Ink Display, 250x122, Immersion Gold Process, SPI Interface, HAT+ Standard, With Pwnagotchi Tutorial2.13″E-Paper HAT+

Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect

• Size2.13"
• Resolution250×122
• Viewing Angle>170°
• Display ColorBlack and White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• RefreshingPartial Refresh Support
• Immersion GoldDurable And Reliable
• HAT+ StandardImproves interoperability

Features At A Glance

• Onboard high-precision RTC chip for accurate time control
• Optimized PCB layout with additional mounting holes for fixing screws
• Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties, with better durability and reliability to meet various applications
• Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
• Comes with online development resources and manual
  • driver board circuit diagram
  • examples for Raspberry Pi OS / Jetson Nano, etc. and provides pwnagotchi porting tutorial
• No backlight, keeps displaying last content for a long time even when power down

SpecificationsOPERATING VOLTAGE3.3VGREY SCALE2INTERFACE3-wire SPI, 4-wire SPIFULL REFRESH TIME2sOUTLINE DIMENSIONS65 × 30.5mmPARTIAL REFRESH TIME0.3sDISPLAY SIZE48.55 × 23.70mmFAST REFRESH TIME1.8sDOT PITCH0.194 × 0.194mmREFRESH POWER10.5mW (typ.)RESOLUTION250 × 122 pixelsSTANDBY POWER<0.01mW(typ.)DISPLAY COLORblack, whiteVIEWING ANGLE>170°

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series Boards, Jetson Nano

* for reference only, the Raspberry Pi in the picture is NOT included

Thin And Light Design

Compact In Size, More Space-Saving

High-Precision RTC Chip, Adopts Immersion Gold Anti-Oxidation Process

Adopts Immersion Gold process, anti-oxidation and anti-corrosion, enhances soldering performance and improves electrical properties; Onboard high-precision RTC chip for accurate time control; Adopts Raspberry Pi HAT+ standard to improve interoperability.

What's On Board

1. E-Paper display connector
2. Mounting hole
3. Rechargeable Lithium battery

4. RTC chip
5. EEPROM
6. 40PIN GPIO header

Outline Dimensions
Resources & ServicesWIKI:[link removed by ]

* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

Selection GuidePART NUMBERCOLORSGREY SCALERESOLUTIONDISPLAY SIZE (MM)OUTLINE DIMENSION (MM)FULL REFRESH TIME (S)PARTIAL REFRESH1PI HEAD-ER2FLEXI-BLEINTERFACE1.02inch e-Paper Moduleblack, white2128×8021.76 × 14.0042.0 × 27.02√SPI1.54inch e-Paper Moduleblack, white2200×20027.60 × 27.6048.0 × 33.02√SPI1.54inch e-Paper Module (B)red, black, white2200×20027.60 × 27.6048.0 × 33.014SPI1.54inch e-Paper Module (C)yellow, black, white2152×15227.51 × 27.5148.0 × 33.027SPI1.64inch e-Paper Module (G)red, yellow, black, white2168×16829.568 × 29.56847 × 3812SPI2.13inch e-Paper HATblack, white2250×12248.55 × 23.7065.0 × 30.22√√SPI2.13inch e-Paper HAT+black, white2250×12248.55 × 23.7065.0 × 30.52√√SPI2.13inch e-Paper HAT (B)red, black, white2250×12248.55 × 23.7065.0 × 30.215√SPI2.13inch e-Paper HAT (C)yellow, black, white2212×10448.55 × 23.7065.0 × 30.215√SPI2.13inch e-Paper HAT (D)black, white2212×10448.55 × 23.7059.2 × 29.22√√√SPI2.13inch e-Paper HAT (G)red, yellow, black, white2250×12248.55 × 23.7065.0 × 30.225√SPI2.13inch Touch e-Paper HATblack, white2250×12248.55 × 23.7069.15 × 38.902√√SPI2.13inch Touch e-Paper HAT (with case)black, white2250×12248.55 × 23.7072.20 × 41.902√√SPI2.36inch e-Paper Module (G)red, yellow, black, white2296×16852.096 × 29.56869.5 × 38.512SPI2.66inch e-Paper Moduleblack, white2296×15230.704 × 60.08837.0 × 83.56√SPI2.66inch e-Paper Module (B)red, black, white2296×15230.704 × 60.08837.0 × 83.515SPI2.66inch e-Paper Module (G)red, yellow, black, white2360×18460.05 × 30.6985.0 × 38.526SPI2.7inch e-Paper HATblack, white4264×17657.29 × 38.1985.0 × 56.06√√SPI2.7inch e-Paper HAT (B)red, black, white2264×17657.288 × 38.19273.5 × 56.015√SPI2.9inch e-Paper Moduleblack, white4296×12866.89 × 29.0589.5 × 38.03√SPI2.9inch e-Paper Module (B)red, black, white2296×12866.89 × 29.0589.5 × 38.015SPI2.9inch e-Paper Module (C)yellow, black, white2296×12866.89 × 29.0589.5 × 38.015SPI2.9inch e-Paper HAT (D)black, white2296×12866.90 × 29.0679.0 × 36.72√√√SPI2.9inch Touch e-Paper HATblack, white4296×12866.89 × 29.0589.10 × 42.703√√SPI3inch e-Paper Module (G)red, yellow, black, white2400×16870.4 × 29.56888.5 × 4112SPI3.52inch e-Paper HATblack, white2360×24074.51 × 49.6786.5 × 571.5√SPI3.7inch e-Paper HATblack, white4480×28047.32 × 81.1258.0 × 96.53√√SPI4.01inch e-Paper HAT (F)7-Color2640×40086.40 × 54.0098.5 × 70.030√SPI4.2inch e-Paper Moduleblack, white4400×30084.80 × 63.60103.0 × 78.55√SPI4.2inch e-Paper Module (B)red, black, white2400×30084.80 × 63.60103.0 × 78.515SPI4.26inch e-Paper HATblack, white4800×48092.80 × 55.68107.0 × 64.04√√SPI4.3inch e-Paper UART Moduleblack, white4800×60088.00 × 66.00118.0 × 75.01.5UART4.37inch e-Paper Module (G)red, yellow, black, white2512×36890.11 × 64.77101.5 × 81.514SPI5.65inch e-Paper Module (F)7-Color2600×448114.9 × 85.8138.5 × 100.5<35SPI5.79inch e-Paper Moduleblack, white4792×272139.00 × 47.74152.50 × 58.503.5√SPI5.79inch e-Paper Module (B)red, black, white2792×272139.00 × 47.74152.50 × 58.5024SPI5.83inch e-Paper HATblack, white2648×480119.232 × 88.320125.4 × 99.55√SPI5.83inch e-Paper HAT (B)red, black, white2648×480119.232 × 88.320125.4 × 99.520√SPI6inch e-Paper HATblack, white16800×600122.4 × 90.6138.4 × 101.8<1√√USB/SPI/
I806inch HD e-Paper HATblack, white161448×1072122.4 × 90.6138.4 × 101.8<1√√USB/SPI/
I807.3inch E-Paper HAT (F)7-Color2800×480160 × 96170.2 × 111.235√SPI7.3inch E-Paper HAT (G)red, yellow, black, white2800×480160 × 96170.2 × 111.216√SPI7.5inch e-Paper HATblack, white2800×480163.20 × 97.92170.2 × 111.25√√SPI7.5inch HD e-Paper HATblack, white2880×528163.24 × 97.94170.2 × 111.25√SPI7.5inch e-Paper HAT (B)red, black, white2800×480163.20 × 97.92170.2 × 111.226√SPI7.5inch HD e-Paper HAT (B)red, black, white2880×528163.24 × 97.94170.2 × 111.221√SPI7.5inch e-Paper HAT (C)yellow, black, white2640×384163.20 × 97.92170.2 × 111.216√SPI7.8inch e-Paper HATblack, white161872×1404158.18 × 118.64173.8 × 127.6<1√√USB/SPI/
I809.7inch e-Paper HATblack, white161200×825202.8 × style="box-sizing: border-box;">I8010.3inch e-Paper HATblack, white161872×1404209.66 × 157.25216.7 × 174.4<1√√USB/SPI/
I8010.3inch e-Paper HAT (D)black, white161872×1404209.66 × 157.25227.7 × 165.8<1√√√USB/SPI/
I8010.3inch e-Paper HAT (G)black, white161872×1404209.66 × 157.25225.70 × 183.40<1√√USB/SPI/
I8012.48inch e-Paper Moduleblack, white21304×984252.98 × 190.90280.0 × 229.5<8√SPI12.48inch e-Paper Module (B)red, black, white21304×984252.98 × 190.90280.0 × 229.537√SPI13.3inch e-Paper HATblack, white161600×1200270.40 × 202.80285.80 × 213.65<1√√USB/SPI/
I8013.3inch e-Paper HAT (B)red, black, white2960×680275.52 × 195.16286.32 × 212.2622√√SPI13.3inch e-Paper HAT (K)black, white4960×680275.52 × 195.16286.32 × 212.265√√SPI

1. It usually takes about 0.3s for partial refresh
2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

PACKAGE CONTENT

Weight:0.156 kg

1. 2.13inch e-Paper HAT+ x1
2. Screws pack x1

12
