Description
3.97inch E-Paper Display, E-Ink Display, 800 × 480 pixels, Black/White, 4 Grey Scales, SPI Interface, Standard Raspberry Pi 40PIN GPIO header3.97″e-Paper display

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the driver board is optional, please refer to the Package Content for detailed part list

• Size3.97″
• Resolution800 × 480
• Viewing Angle>170°
• Display ColorBlack/White
• Grey Scale4
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• HAT+ StandardImproves interoperability

Version Options

3.97inch e-Paper
raw display, without driver board

3.97inch e-Paper HAT+
with driver board

Features at a glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32/ESP32)
• Optional for e-Paper driver board

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi and Jetson Nano series boards
  • Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
  • Adapting SPI interface for connecting with controller boards like Raspberry Pi/Arduino/STM32/ESP32, etc.
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specificationsoperating voltageRaw display: 3.3Vdisplay colorBlack/Whitewith driver board: 3.3V/5Vinterface3-wire SPI, 4-wire SPIgrey scale4outline dimensionsRaw display: 96.62 × 56.24 × 0.92 (mm)full refresh time3.5swith driver board: 99.50 × 60.00 (mm)fast refresh time2.8sdisplay size86.40 × 51.84 (mm)Partial refresh time0.6sRESOLUTION800 × 480 pixels4-gray refresh time3.5sDOT PITCH0.108 × 0.108 (mm)refresh power<40mWviewing angle>170°standby current<0.01uA (almost none)
Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper driver board

Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards, Jetson Nano

* for reference only, the Raspberry Pi is NOT included.

Onboard SPI control interface

for use with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32

PWRPower on/off controlBUSYBusy status output pinRSTExternal reset, low activeDCData/Command selection (high for data, low for command)CSSPI chip selection, low activeSCLKSPI SCLK pinDINSPI MOSI pinGNDGroundVCCPower (3.3V / 5V input)
Onboard Voltage Translator

Compatible With 3.3V / 5V MCUs

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Outline dimensions

3.97inch e-Paper

3.97inch e-Paper HAT+

Resources & Services
Package Content

Weight:0.057 kg

3.97inch e-Paper

3.97inch e-Paper × 1

3.97inch e-Paper HAT+

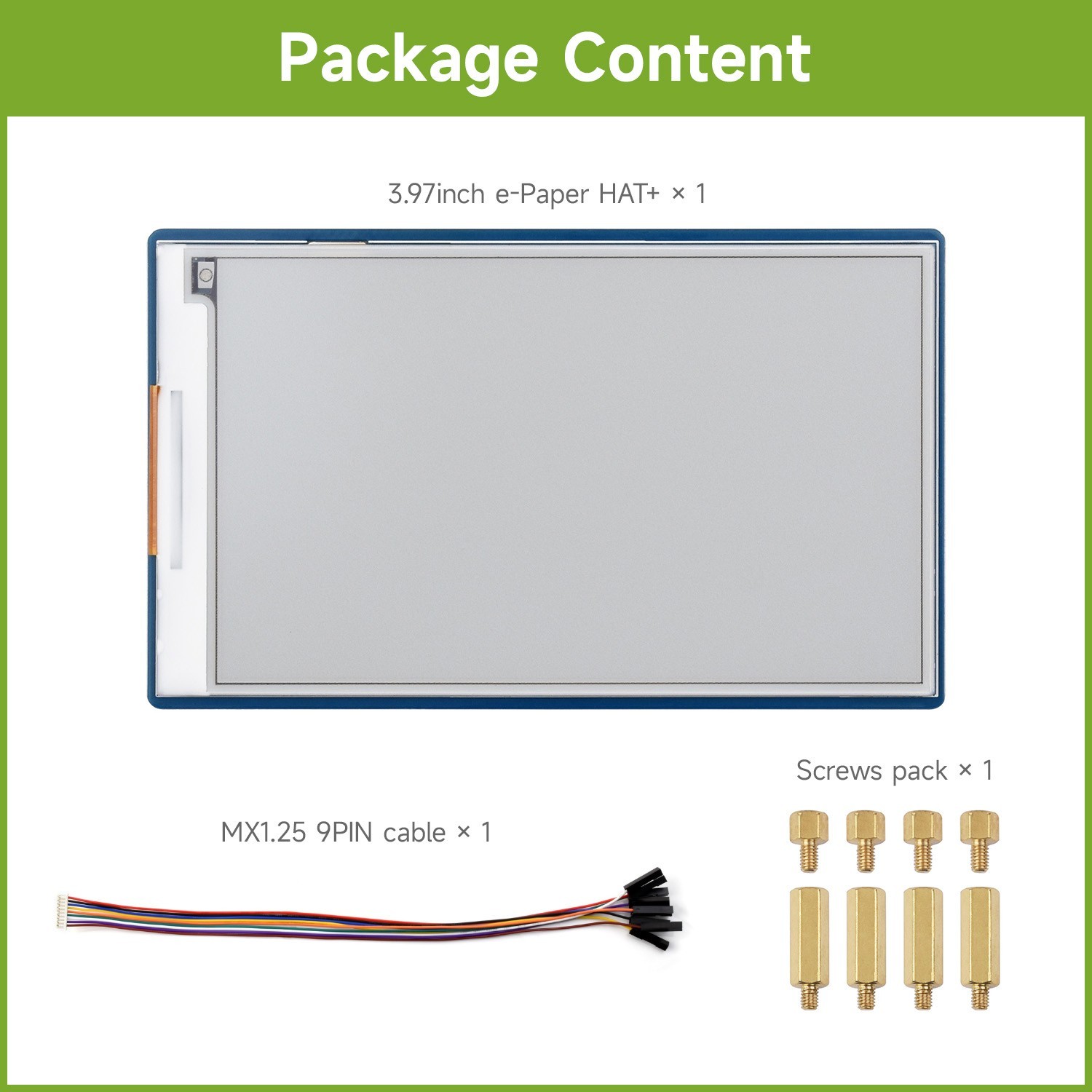

1. 3.97inch e-Paper HAT+ × 1
2. MX1.25 9PIN cable × 1
3. Screws pack × 1
