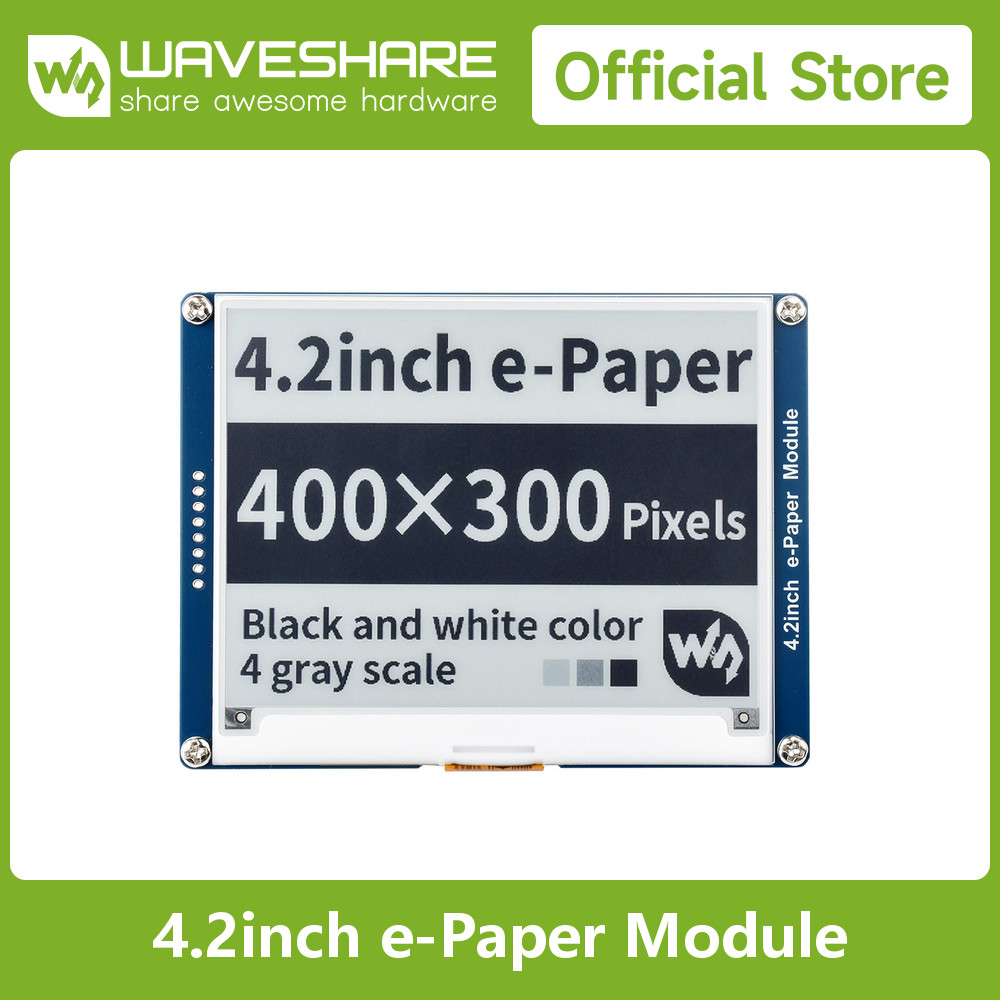

Waveshare 4.2inch e-Paper Module for Raspberry Pi 400x300 E-lnk Display SPI

Price: CN $37.40

Description
400x300, 4.2inch E-Ink display module, SPI interface4.2″e-Paper Module

partial refresh support, low power, wide viewing angle, paper-like effect

Ideal for price tags, shelf labels, industrial instruments...

Size4.2"
Resolution400×300
Viewing Angle>170°
Display ColorBlack and White
Grey Scale4
CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective
RefreshingPartial Refresh Support

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
Onboard voltage translator, compatible with 3.3V / 5V MCUs
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specificationsoperating voltage3.3V/5Vdisplay colorBlack/Whiteinterface3-wire SPI, 4-wire SPIgrey scale4outline dimensions103.0 × 78.5mmfull refresh time5sdisplay size84.8 × 63.6mmFast Refresh time1.5s*DOT PITCH0.212 × 0.212mmPartial refresh time0.4sviewing angle>170°refresh power26.4mW(typ.)RESOLUTION400 × 300 pixelsstandby current<0.01uA (almost none)

* Fast refresh function is only available in V2 version

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Onboard SPI control interface

for use with other controller boards like Raspberry Pi/Jetson MOSI pinCLKSPI SCK pinCSSPI chip selection, low activeDCData / Command selection (high for data, low for command)RSTExternal reset, low activeBUSYBusy status output
Onboard voltage translator

compatible with 3.3V / 5V MCUs

Application examples

Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...

Product show
Outline dimensions
Product CertificationResources & ServicesPackage Content

Weight:0.052 kg
