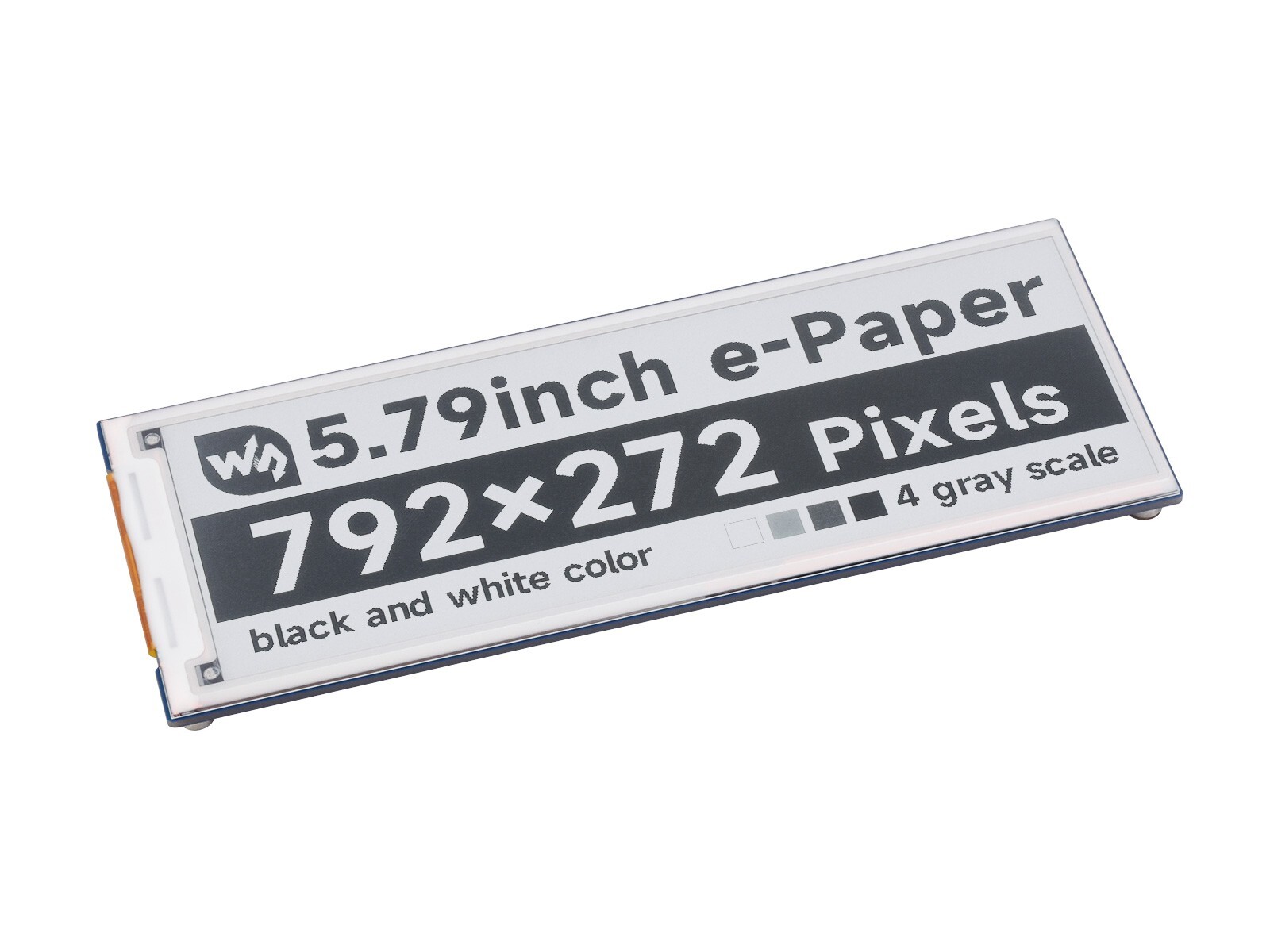

5.79inch E-Paper Display Module, E-Ink Display, 792x272, Black/White, SPI Interface5.79″E-Paper Module

Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

• Size5.79″
• Resolution792×272
• Viewing Angle>170°
• Display ColorBlack/White
• Grey Scale4
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective
• RefreshingPartial Refresh Support

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• SPI interface, for connecting with other controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc.
• Onboard voltage translator, compatible with 3.3V/5V MCUs
• Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson VOLTAGE3.3V/5VDISPLAY COLORBlack/WhiteINTERFACE3-wire SPI, 4-wire SPIGREY SCALE4OUTLINE DIMENSIONS152.50 × 58.50mmFULL REFRESH TIME3.5sDISPLAY SIZE139.00 × 47.74mmPARTIAL REFRESH TIME0.8sDOT PITCH0.1755 × 0.1755mmREFRESH POWER<50mWVIEWING ANGLE>170°STANDBY CURRENT<0.01uA (almost none)RESOLUTION792 × 272 pixelsAdvantages Of EINK

  E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
  E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.


  Onboard SPI Control Interface

  For Use With Controller Boards Like Raspberry Pi/Jetson Nano/Arduino/STM32

  PWRPower on/off controlBUSYBusy status output pinRSTExternal reset, low activeDCData/Command selection (high for data, low for command)CSSPI chip selection, low activeCLKSPI SCK pinDINSPI MOSI pinGNDGroundVCCPower (3.3V / 5V input)
  Onboard Voltage Translator

  Compatible With 3.3V / 5V MCUs


  Usage Example

  Connecting With Raspberry Pi 5

  * for reference only, the Raspberry Pi 5 is NOT included.


  Application Examples

  Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...


  Outline Dimensions
  Resources & Services


  * Resources for different product may vary, please check the wiki page to confirm the actually provided resources.

  Selection GuidePART NUMBERCOLORSGREY SCALERESOLUTIONDISPLAY SIZE (MM)OUTLINE DIMENSION (MM)FULL REFRESH TIME (S)PARTIAL REFRESH1PI HEAD-ER2FLEXI-BLEINTERFACE1.02inch e-Paper Moduleblack, white2128×8021.76 × 14.0042.0 × 27.02√SPI1.54inch e-Paper Moduleblack, white2200×20027.60 × 27.6048.0 × 33.02√SPI1.54inch e-Paper Module (B)red, black, white2200×20027.60 × 27.6048.0 × 33.014SPI1.54inch e-Paper Module (C)yellow, black, white2152×15227.51 × 27.5148.0 × 33.027SPI1.64inch e-Paper Module (G)red, yellow, black, white2168×16829.568 × 29.56847 × 3812SPI2.13inch e-Paper HATblack, white2250×12248.55 × 23.7065.0 × 30.22√√SPI2.13inch e-Paper HAT (B)red, black, white2250×12248.55 × 23.7065.0 × 30.215√SPI2.13inch e-Paper HAT (C)yellow, black, white2212×10448.55 × 23.7065.0 × 30.215√SPI2.13inch e-Paper HAT (D)black, white2212×10448.55 × 23.7059.2 × 29.22√√√SPI2.13inch e-Paper HAT (G)red, yellow, black, white2250×12248.55 × 23.7065.0 × 30.225√SPI2.13inch Touch e-Paper HATblack, white2250×12248.55 × 23.7069.15 × 38.902√√SPI2.13inch Touch e-Paper HAT (with case)black, white2250×12248.55 × 23.7072.20 × 41.902√√SPI2.36inch e-Paper Module (G)red, yellow, black, white2296×16852.096 × 29.56869.5 × 38.512SPI2.66inch e-Paper Moduleblack, white2296×15230.704 × 60.08837.0 × 83.56√SPI2.66inch e-Paper Module (B)red, black, white2296×15230.704 × 60.08837.0 × 83.515SPI2.66inch e-Paper Module (G)red, yellow, black, white2360×18460.05 × 30.6985.0 × 38.526SPI2.7inch e-Paper HATblack, white4264×17657.29 × 38.1985.0 × 56.06√√SPI2.7inch e-Paper HAT (B)red, black, white2264×17657.288 × 38.19273.5 × 56.015√SPI2.9inch e-Paper Moduleblack, white4296×12866.89 × 29.0589.5 × 38.03√SPI2.9inch e-Paper Module (B)red, black, white2296×12866.89 × 29.0589.5 × 38.015SPI2.9inch e-Paper Module (C)yellow, black, white2296×12866.89 × 29.0589.5 × 38.015SPI2.9inch e-Paper HAT (D)black, white2296×12866.90 × 29.0679.0 × 36.72√√√SPI2.9inch Touch e-Paper HATblack, white4296×12866.89 × 29.0589.10 × 42.703√√SPI3inch e-Paper Module (G)red, yellow, black, white2400×16870.4 × 29.56888.5 × 4112SPI3.52inch e-Paper HATblack, white2360×24074.51 × 49.6786.5 × 571.5√SPI3.7inch e-Paper HATblack, white4480×28047.32 × 81.1258.0 × 96.53√√SPI4.01inch e-Paper HAT (F)7-Color2640×40086.40 × 54.0098.5 × 70.030√SPI4.2inch e-Paper Moduleblack, white4400×30084.80 × 63.60103.0 × 78.55√SPI4.2inch e-Paper Module (B)red, black, white2400×30084.80 × 63.60103.0 × 78.515SPI4.26inch e-Paper HATblack, white4800×48092.80 × 55.68107.0 × 64.04√√SPI4.3inch e-Paper UART Moduleblack, white4800×60088.00 × 66.00118.0 × 75.01.5UART4.37inch e-Paper Module (G)red, yellow, black, white2512×36890.11 × 64.77101.5 × 81.514SPI5.65inch e-Paper Module (F)7-Color2600×448114.9 × 85.8138.5 × 100.5<35SPI5.79inch e-Paper Moduleblack, white4792×272139.00 × 47.74152.50 × 58.503.5√SPI5.79inch e-Paper Module (B)red, black, white2792×272139.00 × 47.74152.50 × 58.5024SPI5.83inch e-Paper HATblack, white2648×480119.232 × 88.320125.4 × 99.55√SPI5.83inch e-Paper HAT (B)red, black, white2648×480119.232 × 88.320125.4 × 99.520√SPI6inch e-Paper HATblack, white16800×600122.4 × 90.6138.4 × 101.8<1√√USB/SPI/
  I806inch HD e-Paper HATblack, white161448×1072122.4 × 90.6138.4 × 101.8<1√√USB/SPI/
  I807.3inch E-Paper HAT (F)7-Color2800×480160 × 96170.2 × 111.235√SPI7.3inch E-Paper HAT (G)red, yellow, black, white2800×480160 × 96170.2 × 111.216√SPI7.5inch e-Paper HATblack, white2800×480163.20 × 97.92170.2 × 111.25√SPI7.5inch HD e-Paper HATblack, white2880×528163.24 × 97.94170.2 × 111.25√SPI7.5inch e-Paper HAT (B)red, black, white2800×480163.20 × 97.92170.2 × 111.226√SPI7.5inch HD e-Paper HAT (B)red, black, white2880×528163.24 × 97.94170.2 × 111.221√SPI7.5inch e-Paper HAT (C)yellow, black, white2640×384163.20 × 97.92170.2 × 111.216√SPI7.8inch e-Paper HATblack, white161872×1404158.18 × 118.64173.8 × 127.6<1√√USB/SPI/
  I809.7inch e-Paper HATblack, white161200×825202.8 × style="box-sizing: border-box;">I8010.3inch e-Paper HATblack, white161872×1404209.66 × 157.25216.7 × 174.4<1√√USB/SPI/
  I8010.3inch e-Paper HAT (D)black, white161872×1404209.66 × 157.25227.7 × 165.8<1√√√USB/SPI/
  I8012.48inch e-Paper Moduleblack, white21304×984252.98 × 190.90280.0 × 229.5<8√SPI12.48inch e-Paper Module (B)red, black, white21304×984252.98 × 190.90280.0 × 229.537√SPI13.3inch e-Paper HATblack, white161600×1200270.40 × 202.80285.80 × 213.65<1√√USB/SPI/
  I8013.3inch e-Paper HAT (K)black, white2960×680275.52 × 195.16286.32 × 212.265√SPI
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards







  PACKAGE CONTENT




  Weight:0.035 kg

  1. 5.79inch e-Paper Module x1
  2. GH1.25 9PIN cable 20cm x1
