DESCRIPTION
Network Attached Storage(NAS) All-In-One Mini-Computer For Raspberry Pi Compute Module 4, Personal Network Storage Server, Optional For CM4 ModuleNAS Mini-Computer For CM4

Designed For Raspberry Pi Compute Module 4
Personal Network Storage Server

Features At A Glance

• All-in-one Mini-Computer, mainly designed for home or small home office, but not limited to the above applications
• Out of the box, no expert knowledge of networking and storage systems required
• Built-in 2x SATA slots for installing 2.5-inch Solid State Drives
• 2-inch SPI LCD screen for real-time monitoring the working status of CM4: CPU, RAM, system disk usage, network speed and temperature, etc.
• Easy to use, convenient to online access the documents, videos, and music at any time

SpecificationsPROCESSOR *Broadcom BCM2711 Quad-Core Cortex-A72 (ARM v8)
64-bit SoC @ 1.5GHzRAM *CM4104008: 4GB
CM4102032: 2GBEMMC FLASH *CM4104008: 8GB
CM4102032: 32GBCONNECTIVITYDual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac wireless WiFi, Bluetooth 5.0, BLE with onboard and external antenna options *Gigabit Ethernet RJ45 connector2 x USB 2.0 ports2 x SATA slots (2.5inch SATA)TF card slot for Compute Module 4 Lite (without eMMC) variantsHDMI × 1, supports 4K 30fps outputOPERATING VOLTAGE5V DC* the CM4104008 or CM4102032 is optional. You can choose and purchase other variants ofCompute Module 4according to your needs
Built-In Dual Hard Drive Slots
Support Large Capacity HDD StorageComes With SPI 2inch LCD Display

For Monitoring The Working Status Of CM4 In Real-Time

Rich Interfaces
Aluminum Alloy Case Design

Alloy Case For Large Area Heat Dissipation, With Fan Vents And Nonskid Feet At The Bottom, Better Heat Dissipation And More Stable Placement

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Product Show




Dimensions
Resources & Services
PACKAGE CONTENT

Weight:0.526 kg

CM4-NAS-Double-Deck-C4A

1. CM4-NAS-Double-Deck with CM4104008 included (assembled) x1
2. OPTIONS5V 3A Type C power supply x1
3. Screwdriver style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial; line-height: 1.6;">
4. CM4-NAS-Double-Deck with CM4102032 included (assembled) x1
5. OPTIONS5V 3A Type C power supply x1
6. Screwdriver x1

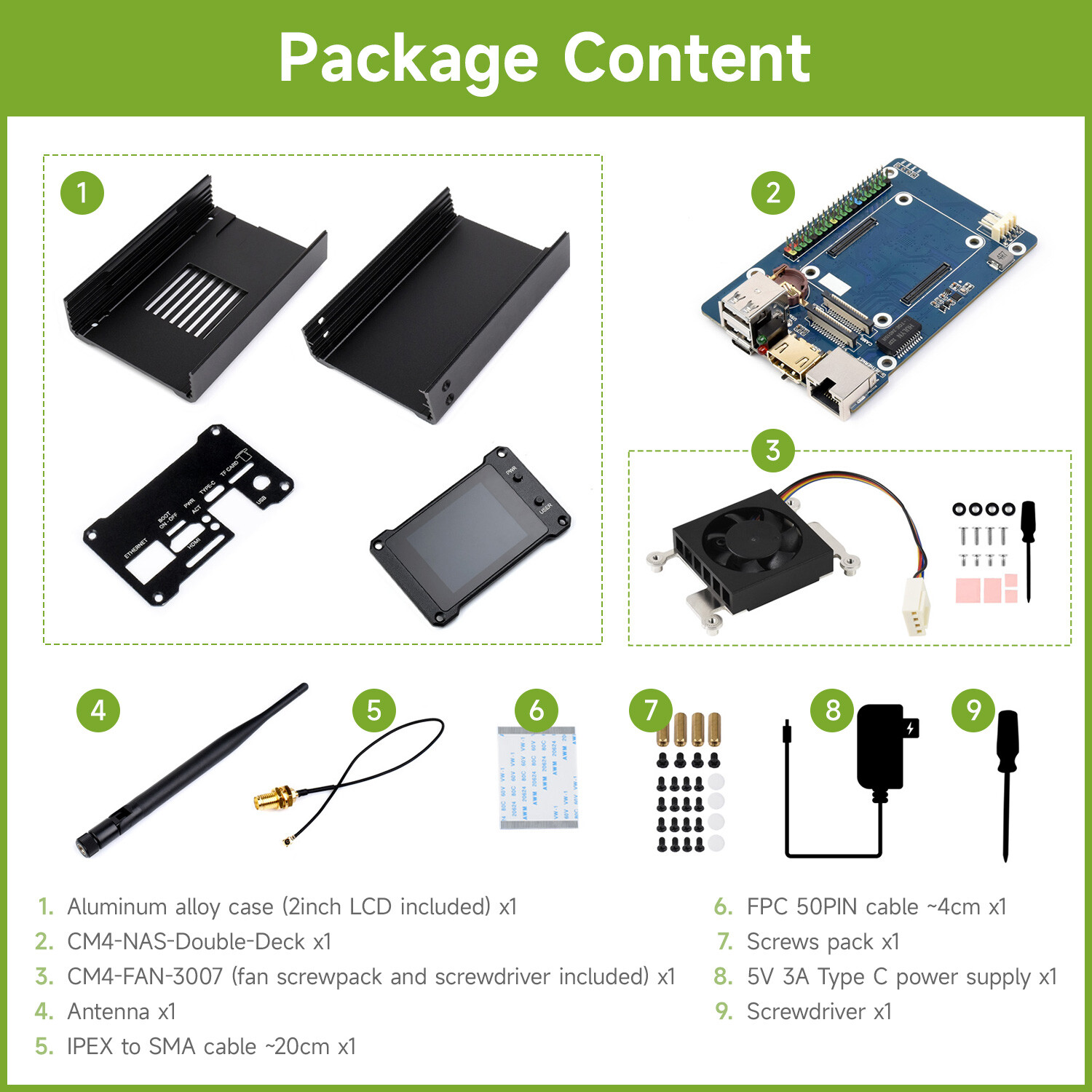

123CM4-NAS-Double-Deck

1. Aluminum alloy case (2inch LCD included) x1
2. CM4-NAS-Double-Deck x1
3. CM4-FAN-3007 (fan screwpack and screwdriver included) x1
4. Antenna x1
5. IPEX to SMA cable ~20cm x1
6. FPC 50PIN cable ~4cm x1
7. Screws pack x1
8. OPTIONS5V 3A Type C power supply x1
9. Screwdriver x1
