DESCRIPTION

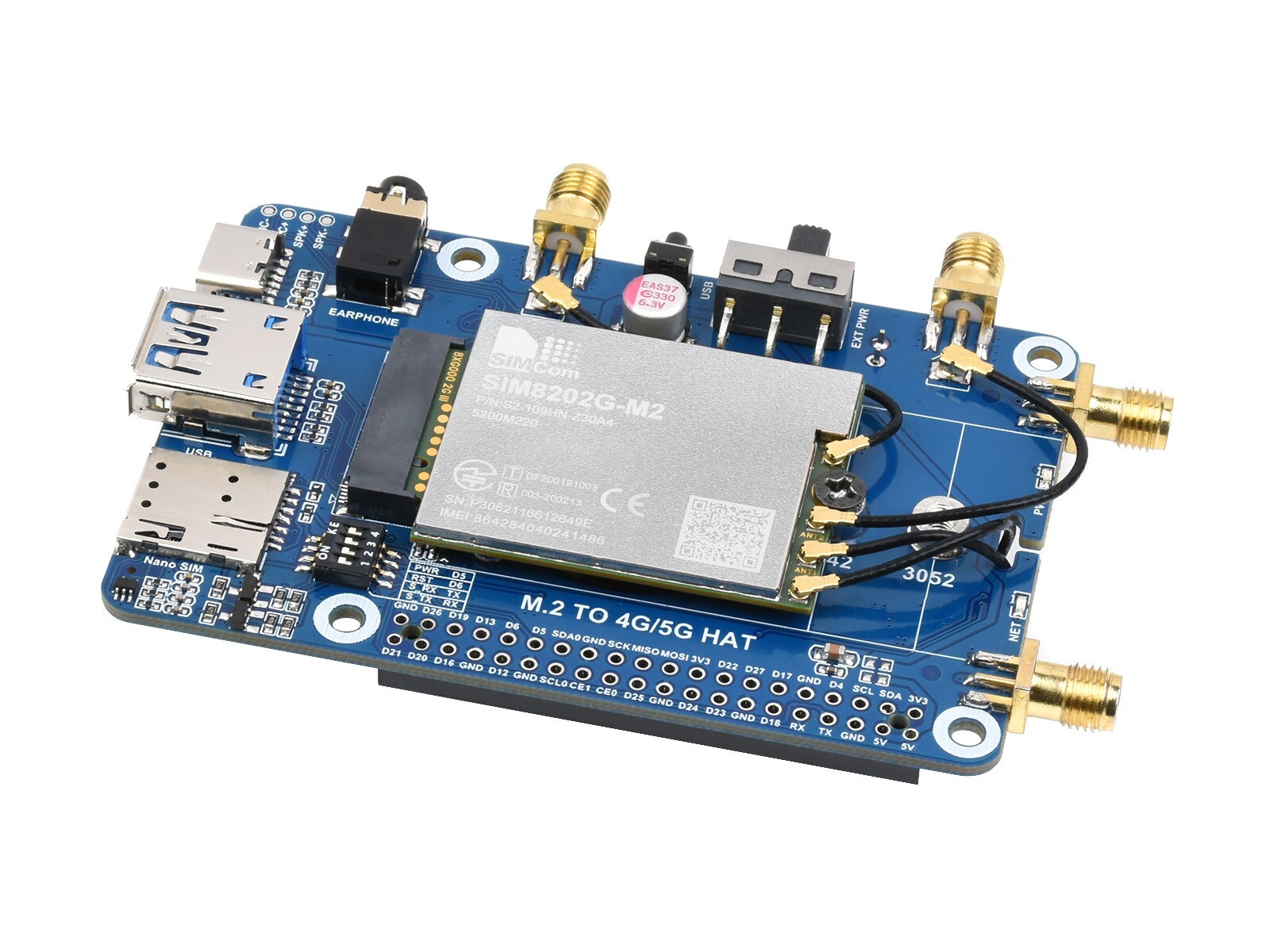

Prohibited by the module manufacturer SIMCOM, we're not allowed to ship this product, or to provide any tech support, to the following countries/regions: Iran, North Korea, Cuba, Sudan, Syrian.SIM82XX-M2 5G HAT For Raspberry Pi, Quad Antennas 5G NSA, Multi-Band, 5G/4G/3G Compatible, With Case(Optional)Raspberry Pi SIM82XX-M2 5G HAT

Supports 5G NSA And SA Networking, GNSS Positioning

Features At A Glance

• Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band
• Multi-constellation dual-band positioning: GPS, Beidou, Glonass, Galileo, and QZSS
• Operating system support: Windows/Linux/Android
• USB 3.1 port (USB 2.0 compatible) for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G communication
• Standard M.2 B KEY slot, compatible with different 5G modules: SIM8202X-M2 / SIM8200EA-M2 / SIM8262X-M2 / RM5XX series, setting via DIP switches
• Onboard UART, PWR, and RST control pin, built-in voltage level translator, enabled via DIP switch, for use with hosts like Raspberry Pi or Arduino
• Onboard USB-C connector, enabled via switch, for connecting standalone power supply for the module, allows more loads, stable amd flexible power supply
• Onboard power supply on/off switch, reset button and LED indicator, easy to turn on/off the module or monitor the operating status
• 4x SMA to IPEX antenna connectors, with pre-soldered SMA terminals for connecting antennas
• 2x SIM card slot, dual card single standby, switchable via AT command
• Onboard audio jack and audio decoder, allows audio operation like making phone call
• High efficiency power supply circuit, up to 3A output current

Version Options

Without Case

With Case

Multi Mode Multi Band

Applicable For Most Of The Countries And Regions

Based on Qualcomm platform, support 5G NSA and SA networking, support multi-mode & multi-band

* the frequency band diagram above is for reference only, please confirm the supported bands according to your local service provider.

Multi System Support, Easy To Use

Supports Windows 7/8/10/11, Ubuntu, Raspberry Pi OS, OpenWRT...

Just plug it into USB port, go through some simple configuration, the high speed 5G network connection will be ready to use

Connection Examples

For Windows PC Or Jetson Nano Series, Use A USB Cable
For Raspberry Pi 4B/3B+, Or CM4-IO-BASE-A/B, Use The Purpose-Made USB Adapter

connecting withRaspberry Pi 4B

connecting withRaspberry Pi 3B+

connecting withCM4 IO Base

Cloud CommunicationMulti-Constellation High-Precision GNSS

Supports GPS, Beidou, Glonass, Galileo, QZSS

Phone Call & SMS Support

Allows Using AT Commands To Make Phone Call Or Send SMS

Standard Raspberry Pi 40PIN GPIO Header

Compatible With Raspberry Pi Series And Jetson Nano, Stackable Design For More HATs

* for reference only, please check the Package Content section for exact part list.High Speed Cooling Fan

Better Heat Dissipation For Both Raspberry Pi And The 5G Module

Optional Case

Multi Installation Methods, Convenient For Various Application Scenarios Such As Industry

Application Examples

5G Wireless Router
Combined with OpenWrt, turns the Raspberry Pi into a 5G wireless router, providing WiFi hotspot for smartphones to easily access the 5G Network.

5G Live Streaming
While mounting an additional camera, it is able to do live streaming on webpage or live platform through ffmpeg video stream.

More PossibilitiesOutline Dimensions
PACKAGE CONTENT

Weight:0.468 kg

The power supply of this product is not included, it is recommended to used with a5V/3A Power Supply

1. OPTIONSProtection case kit x1
2. M.2 TO 4G/5G HAT x1
3. OPTIONSSIM82XX-M2 5G module x1
4. Antenna 4pcs x1
5. IPEX adapter cable 4pcs x1
6. 2*20PIN pin header x1
7. Passive GPS antenna x1
8. Dual plug USB3.0 cable x1
9. USB3.0 adapter x1
10. USB2.0 adapter x1
11. SMA protective cap 4pcs x1
12. Screws pack x1
