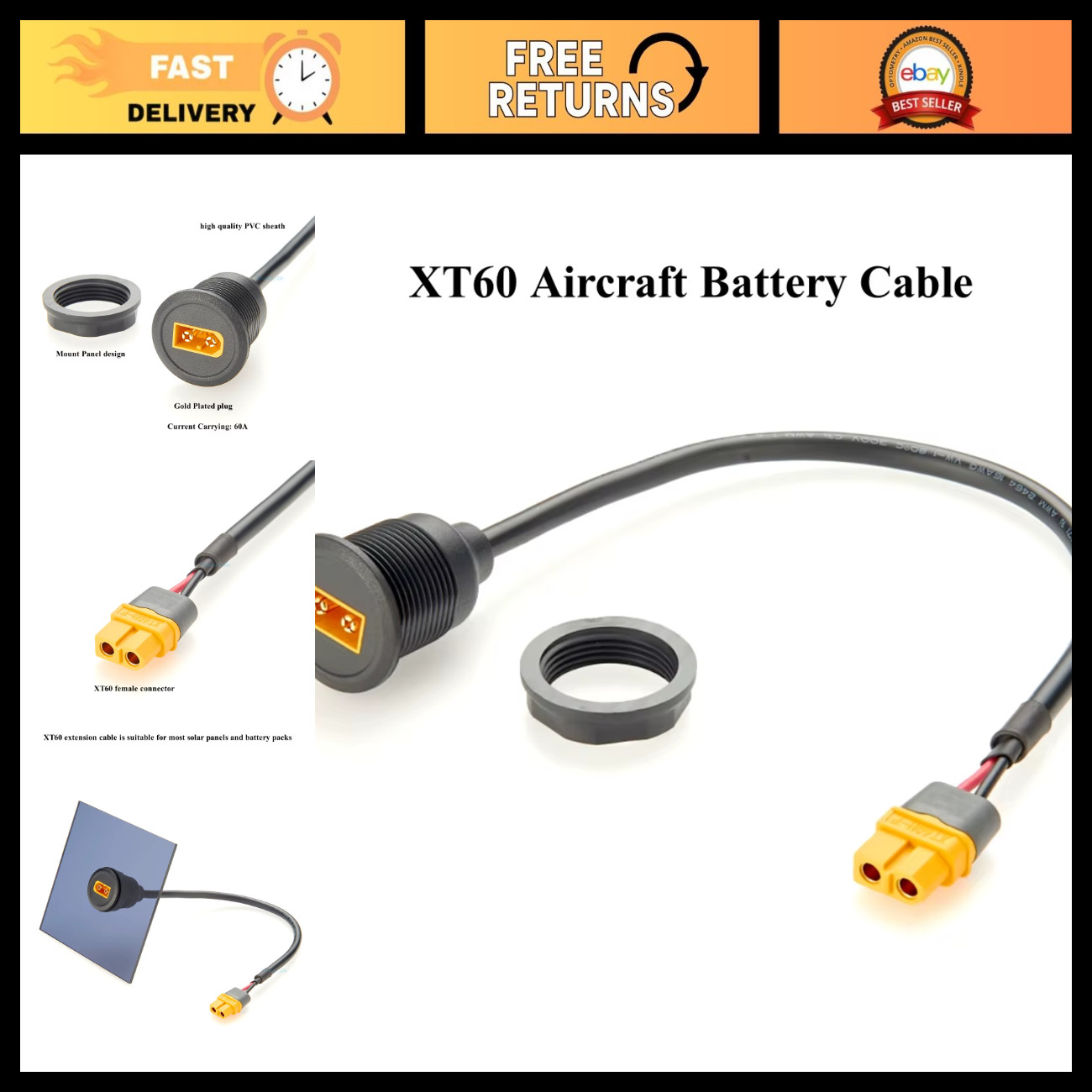

XT60H-F Female Panel Mount Connector with 300mm Cable

Experience reliable power connections with the XT60H-F female panel mount connector, designed for high-performance applications. Ideal for drones, remote control vehicles, electric scooters, and more, this adapter cable ensures stable current transmission.

Key Features:

• Cable Length: 300mm (11.8 inches) for flexible charging options.
• Connector Types: XT60H-M male and XT60H-F female.
• Panel Mounting: Includes a nut for easy installation; recommended panel cutout size is 22mm or 23mm.
• Cable Specifications: UL2464 16#*2C + PVC with a 6.0mm outer diameter in black color.
• Nut Material: Durable PVC 45P in black color.
• Overmold Material: Black PVC 45P MA-001 for enhanced protection.
• Pin Assignment: P1 positive (red wire), P2 negative (black wire).
• Electrical Testing: 100% open, short, and miswire tests; insulator resistance minimum of 10 MΩ at DC 300V; contact resistance maximum of 3 mΩ.
• Heat Shrink Tube Size: 6.0mm diameter by 20mm length in black color.
• RoHS Compliant: Meets environmental safety standards.

Specifications:

• Connector 1: XT-60 Male
• Connector 2: XT-60 Female
• Color: Black
• Material: Pure copper + PVC
• Wire Gauge: 16 AWG wire
<
