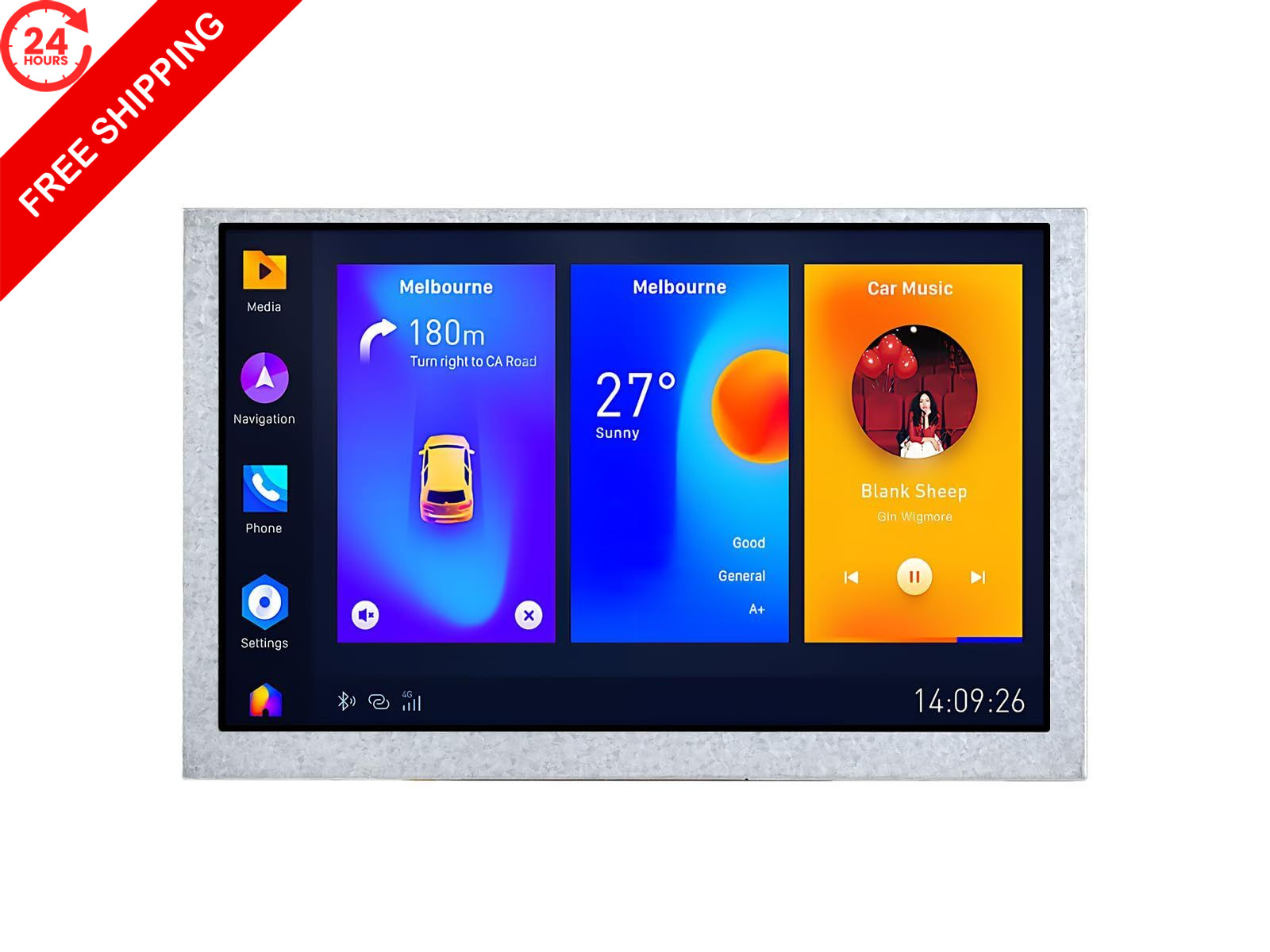

waveshare ESP32-S3 5inch Display LCD Development Board 800×480 Solution IPS Display with 2.4GHz WiFi and BLE 5 Support,32-bit LX7 Dual-core Processor Description

ESP32-S3 5inch Display Development Board, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard AntennaFeaturesThis product is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 5inch LCDscreen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the quick development of the HMIand other ESP32-S3 applicationsEquipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequencySupports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antennaBuilt in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAMOnboard 5inch LCD display, options for 800×480 resolution, 65K colorOnboard voltage regulator, supports 7~36V wide range power supplyOnboard RTC chip and rechargeable battery to ensure time data is not lost when power lossOnboard CAN, RS485, I2C interface, TF card slot, MX1.25 2P battery header, and digital isolated IO interfaces, etc.Supports passive and active digital input, with bi-directional optocoupler isolationSupports digital output with optocoupler isolation, provides higher driving capability with up to 450mA sinking currentOnboard LED indicators for indicating the power and battery recharging statusSupports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenariosPackage ContentESP32-S3-LCD-5 (with bottom wiring 16PIN screw terminal) x1

Features:

• ESP32-S3 5″ LCD Development Board,Integrates RGB Interface LCD
• IPS Display Panel.Excellent Display Performance, 178° Wide Viewing Angle *
• Supports Multiple Peripherals.Supports The Expansion Of Multiple Peripherals Via CAN, RS485, I2C And Isolated IO Interfaces
• Support Batch Customization.Support Software And Hardware Customization Including Hardware Interface, LOGO, Label, Case And Web Page, Etc.
• 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

Product Details:

• Publisher: waveshare
• Publication date: 0
• Item weight: 120 g
