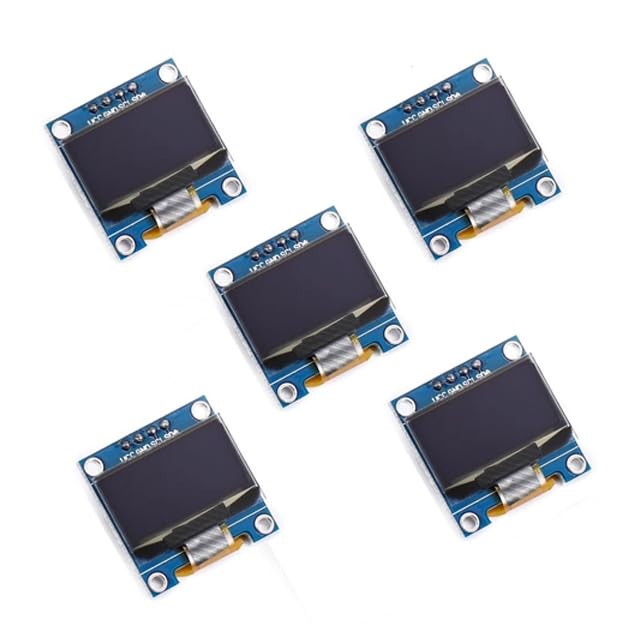

Super high brightness and contrast are adjustable With embedded driver/controller Interface type is IIC Pin Definition: VCC , GND,SCL, SDA Voltage: 3V ~ 5V DC Working Temperature: -30 ° ~ 70 ° Character Colors: White Drive Duty: 1/64 Duty High resolution: 128 * 64 Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx) Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx) Driver IC: SSD1306(Original)
Pins has been soldered,comes in a small box to prevent it from being dropped during transportation
There is also a removable transparent film on each OLED glass surface for scratch resistant protection until use.
Pin Definition: VCC,GND,SCL, SDA
Voltage: 3V ~ 5V DC
Ultra-low power consumption: full screen lit 0.08W
