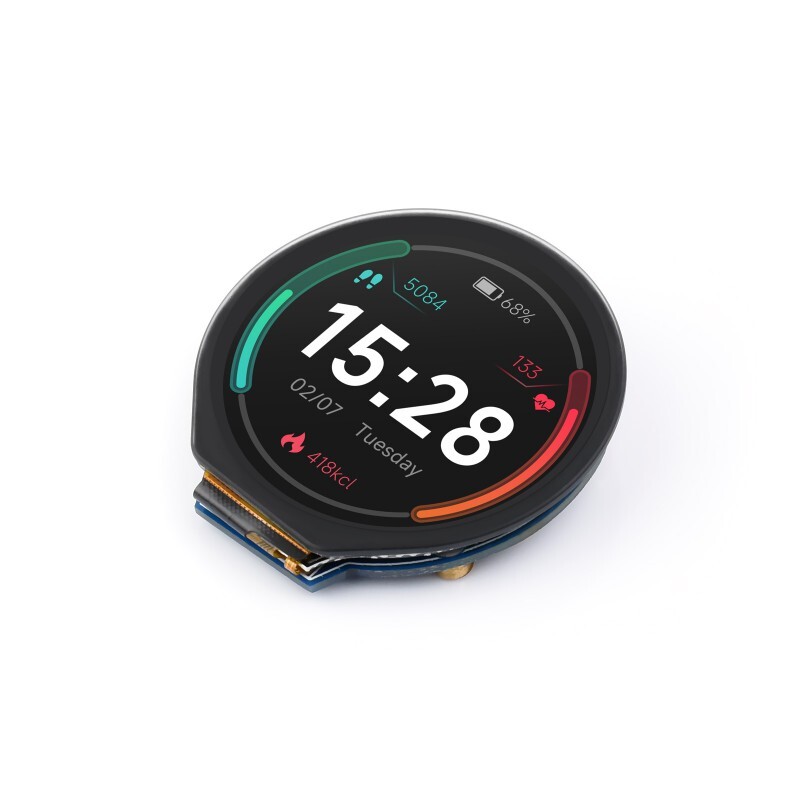

1.28inch Round LCD Display Module With Touch Panel, 240×240 Resolution, IPS, SPI And I2C Communication1.28inchTouch LCD Display Module
Embedded GC9A01 Driver And CST816S Capacitive Touch Control Chip
Using SPI And I2C Communication Respectively
Comes with examples for Raspberry Pi, Raspberry Pi Pico, Arduino, STM32, etc.
- Size1.28"
- Display Color65K
- Display PanelIPS
- Display DriverGC9A01
- Display InterfaceSPI
- Touch DriverCST816S
- Touch InterfaceI2C
Features At A Glance
- 240×240 resolution, 65K colors, clear and colorful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
- Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)
SpecificationsOPERATING VOLTAGE3.3V / 5VRESOLUTION240 × 240 pixelsDISPLAY DRIVERGC9A01DISPLAY INTERFACE4-wire SPITOUCH DRIVERCST816STOUCH INTERFACEI2CDISPLAY PANELIPSTOUCH TYPECapacitiveDISPLAY SIZEΦ32.4mmPIXEL SIZE0.135 × 0.135 mmMODULE SIZE39.89 × 38.50mm Φ38.50mm
Small Size, Touch More Possibilities
Suitable For Various Smart Devices Development, Can Realize Human-Computer
Interaction Function
Control Interfaces
For Use With Controller Boards Like Raspberry Pi / Raspberry Pi Pico / Arduino / STM32
VCCPower (3.3V / 5V input)GNDGroundMISOSPI MISO pinMOSISPI MOSI pinSCLKSPI Clock pinLCS_CSLCD Chip Selection, low activeLCS_DCLCD Data/Command selection (high for data, low for command)LCS_RSTLCD Reset, low activeLCS_BLLCD BacklightTP_SDATP Data pinTP_SCLTP Clock pinTP_INTTP Interrupt pinTP_RSTTP Reset, low active
Pin Connection Reference
1.28INCH TOUCH LCDRASPBERRY PI style="box-sizing: border-box;">Usage Example
Product Show
Outline Dimensions
Development Resources
Wiki: contains
- 1.28inch Touch LCD x1
- GH1.25 13Pin cable x1
