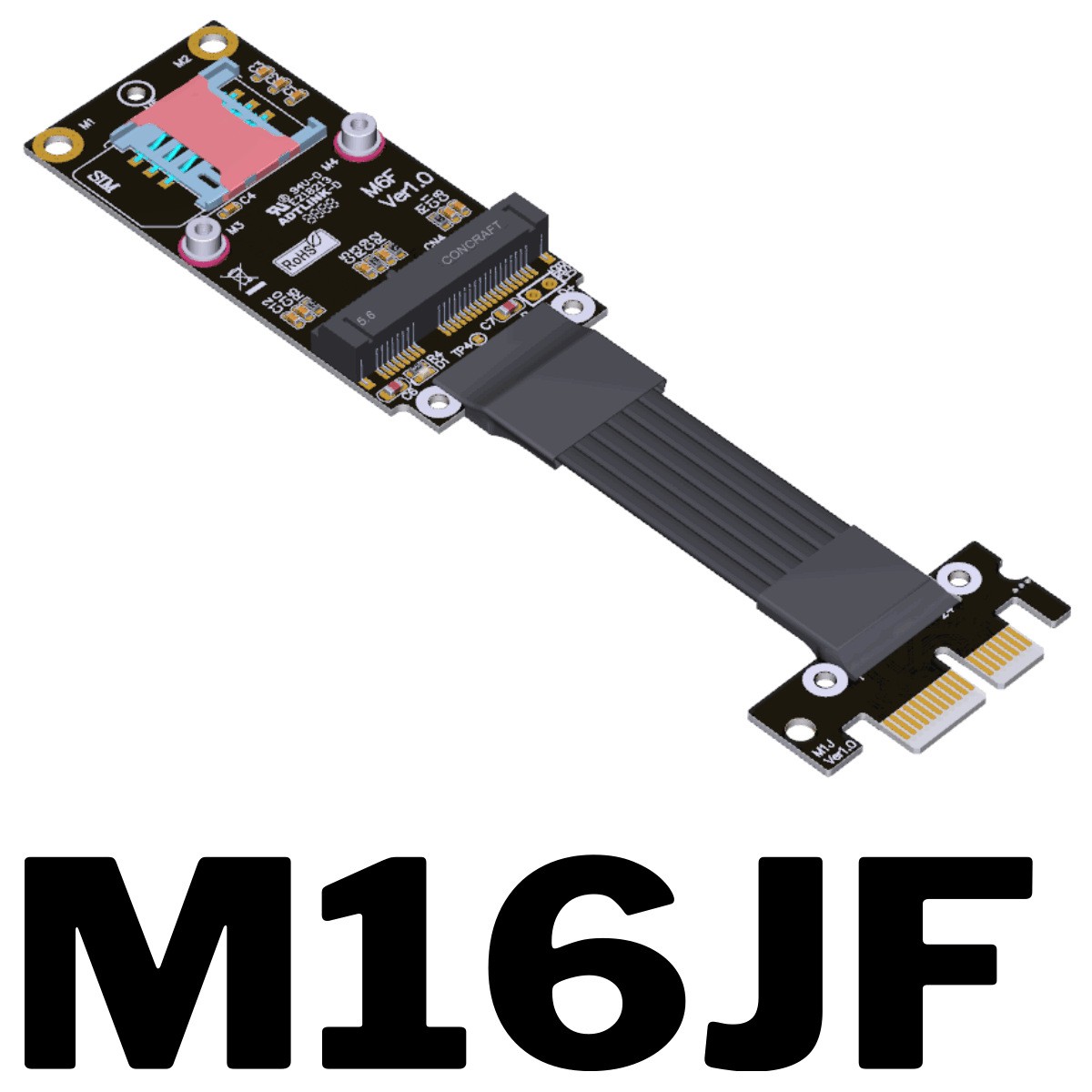

ADT M16JF Mini PCIe to PCI-E x1 Extension Cable, PCIe 4.0 Gen4 16Gbps Shielded High Speed Signal Cable, Custom Length 5cm~100cm
Product Description
Direct from ADT Factory. Every unit undergoes 100% power-on inspection and full testing before shipment.Brand: ADT (Erdate Electronics)Model: M16JFProduct Name: Mini-PCIe to PCI-E X1 Signal Extension CableCable Length: 5cm ~ 100cmBandwidth: PCIe 4.0 Gen4, 16GbpsApplication: Industrial control & server equipment, high-speed PCIe signal transmission
Important Usage Restrictions
✅ Only for PCIe-based mPCIe cards❌ NOT compatible with mSATA or WWAN modulesThis item is restricted for purchase by professional engineers for lab testing only. It is NOT suitable for general consumer use. General buyers please do NOT purchase.
Product Advantages
✅ 4th Generation ADT Self-developed Shielded High-Speed CableEquipped with premium-grade connectors. Supports stable PCIe 4.0 x1 high-frequency signal transmission.
✅ Customizable Cable LengthCustom lengths available from 3cm up to 100cm. Low-impedance cable design, full PCIe4.0 speed is stable for cable lengths within 60cm.
✅ Differential Signal No-Via PCB DesignEliminates signal attenuation and interference caused by parasitic capacitance and inductance. Prevents CAF micro-short faults for extended service life.
✅ High TG Thickened PCB with Gold-Plated ContactsPCB built with high-frequency low-loss high TG material. Copper thickness upgraded to 1oz. Sufficient gold plating on gold fingers for superior conductivity. Reduces system freeze and audio distortion issues caused by oxidation and rising impedance.
✅ Heavy-Duty Reinforced Soldering Joints3mm thick PCB reinforcement pads at soldering points, secured with screws and hex lock nuts. Tear-resistant, robust and anti-interference construction, prevents broken wires and lifted pins.
✅ Low-Profile & Widened PCB DesignLow-profile PCB avoids collision with graphics cards. Widened & elongated PCB simplifies installation and lowers risk of hardware damage.
FAQ
Q: What is the cable quality? Does it have shielding?A: Features full metal layer shielding with advanced EMI conductive polymer shielding material for flat ribbon cable.This technology fully wraps each cable with conductive polymer EMI shielding to block incoming & outgoing electromagnetic emissions. It minimizes interference and performance degradation while reducing cable weight.
Q: Cable thickness? Is it flexible? Can it be bent?A: Cable thickness is only 1.3mm. The flat ribbon cable is soft and flexible. Proper bending will not affect performance.
Important Purchase & Installation Notes
- Observe Connector Polarity: Always align the connector correctly before plugging in. Do NOT reverse or misalign the connector, otherwise hardware burnout may occur. Hold the socket firmly during insertion, avoid excessive force which may break socket pins.Do NOT bend or pull the cable within 2cm from the soldering points on both cable ends.
- Signal driving capability varies between motherboards and devices. Our lab test results do not guarantee identical performance on your hardware. Signal loss is unavoidable when using extension cables. Do NOT purchase if you require zero-loss perfect performance.
- Electronic hardware including motherboards and adapters will age and oxidize over time. Using extension cables on aged hardware will increase instability. Not compatible with devices older than 4 years. Do NOT buy for old equipment.
- This item is intended for purchase by professional product engineers only, for hardware testing purposes. Not for other applications. Please do not purchase if you do not meet this requirement.
Comparison Reference (R16SF vs R16JF 4.0)ItemR16SFR16JF 4.0Max BandwidthPCIe 3.0 x1 ; 8G/bpsPCIe 4.0 x1 ; 16G/bpsSMB_BUS Pass-throughNot SupportedSupportedWAKE# Signal Pass-throughNot SupportedSupportedCLKREQ# Signal Pass-throughNot SupportedSupportedDifferential Signal Metal ShieldingNoYes
