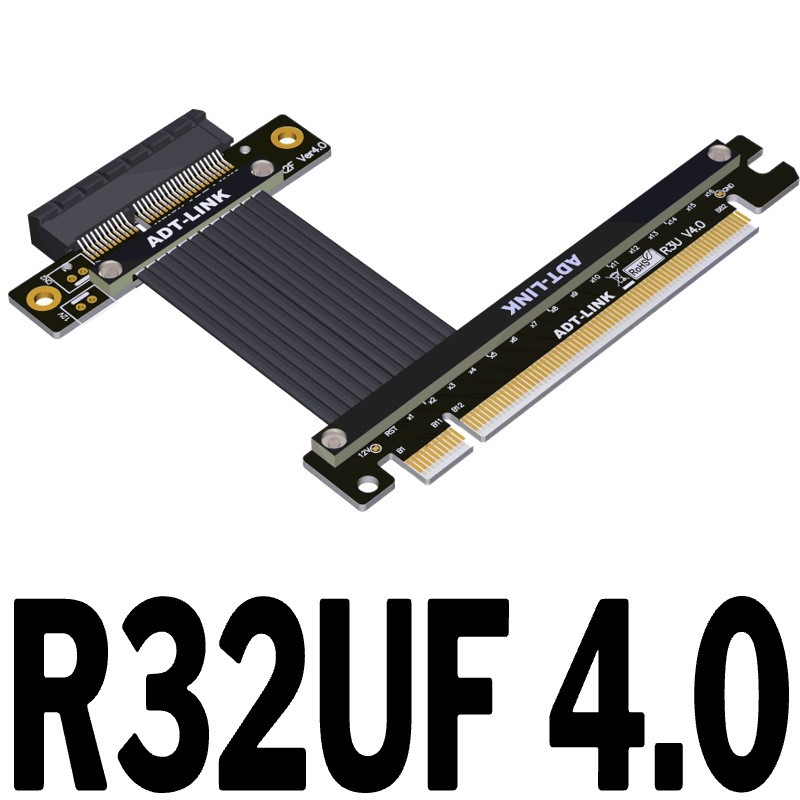

ADT R32 Series PCIe 4.0 x16 to x4 Riser Cable Gen4 64Gbps Flexible Flat Ribbon Extender for WiFi NIC, LAN Card, Capture Card, USB Card
Product Overview
Factory Direct Sale from ADT Electronics. Every cable is 100% fully inspected and power-on tested before shipment for reliable quality.
Brand: ADT
Model Series: R32
Product Name: PCIe 4.0 x16 to x4 Adapter Extension Riser Cable
Cable Length: 5~100cm, custom lengths available
Bandwidth: PCIe 4.0 x4 Gen4, up to 64Gbps
Compatible PCIe Cards:Wireless network card, wired LAN card, video capture card, USB expansion card, PCIe SSD card. Works with any PCIe x4 card installed into motherboard PCIe x16 slot.
Bulk Purchase Notice:For bulk orders, please purchase 1~2 samples first for compatibility testing before large-volume procurement.
Important Friendly Reminder:This product has many compatibility considerations. Improper assembly or operation may damage your hardware. Intended for purchase by professional engineers only. This is a custom product, non-refundable and non-returnable. Please confirm carefully before ordering.
Cable Length Definition:The listed length refers only to the visible flat cable body, excluding PCB boards and connectors. Add approximately 3cm for PCB + connectors. For example, a 5cm cable will have a total overall length of roughly 8cm including hardware. Please refer to dimension drawing.
Key Advantages
- Shielded High-Speed Custom CableADT self-developed 4th generation shielded high-speed ribbon cable with premium connectors. Stable high-frequency PCIe 4.0 x1 signal transmission at 8Gbps per lane.
- Custom Length & Low ImpedanceCustom lengths available from 3cm up to 100cm. Low impedance cable design maintains full PCIe4.0 speed stably for lengths ≤60cm.
- Via-Free Differential Signal PCB DesignNo vias on differential signal traces. Eliminates signal attenuation and interference caused by parasitic capacitance and inductance. Prevents CAF micro-short faults for long service life.
- High-Grade Low-Loss PCB MaterialPrecision-manufactured high TG low-loss high-frequency PCB substrate. 1oz thick copper layer, heavy gold-plated edge fingers. Excellent conductivity, reduces oxidation and rising contact resistance to avoid system freeze or audio crackling.
- Reinforced Solder Joint Protection3mm thick PCB spacer protects soldering points. Secured with screws and hex lock nuts. Tear-resistant, anti-interference, prevents wire breakage and pad lifting.
- Low-Profile & Reinforced PCB DesignLow-profile PCB avoids collision with add-on cards. Widened, elongated PCB for easier installation and lower risk of damage.
FAQQ: What is the cable quality? Is it shielded?
A: It features full metal layer shielding with advanced EMI conductive polymer flat ribbon cable. The entire cable is fully wrapped by EMI shielding polymer material. It blocks incoming and outgoing electromagnetic radiation, minimizes signal interference and performance drop, while keeping the ribbon cable lightweight.
Q: Cable thickness? Is it flexible and bendable?
A: Cable thickness is only 1.3mm. The ribbon cable is soft and flexible. Proper bending will not affect function.
Purchase & Safety Notes
- Check orientation before plugging in: Never reverse or misalign the connector, otherwise hardware burnout may occur. Hold the port firmly when inserting; avoid excessive force that can break pins. Do NOT bend or pull the cable within 2cm of soldering points on both PCB ends.
- Motherboards and peripherals have different signal driving capabilities. Our lab test results may differ from your hardware environment. Signal loss always exists with extension cables. If you require absolutely perfect signal performance, please do not buy this product.
Electronic hardware ages and oxidates over time. Adding a riser cable reduces stability on older hardware.
This riser is NOT supported for equipment older than 4 years.
- Designed for professional engineers, for hardware testing purposes only. Not recommended for other use cases.
