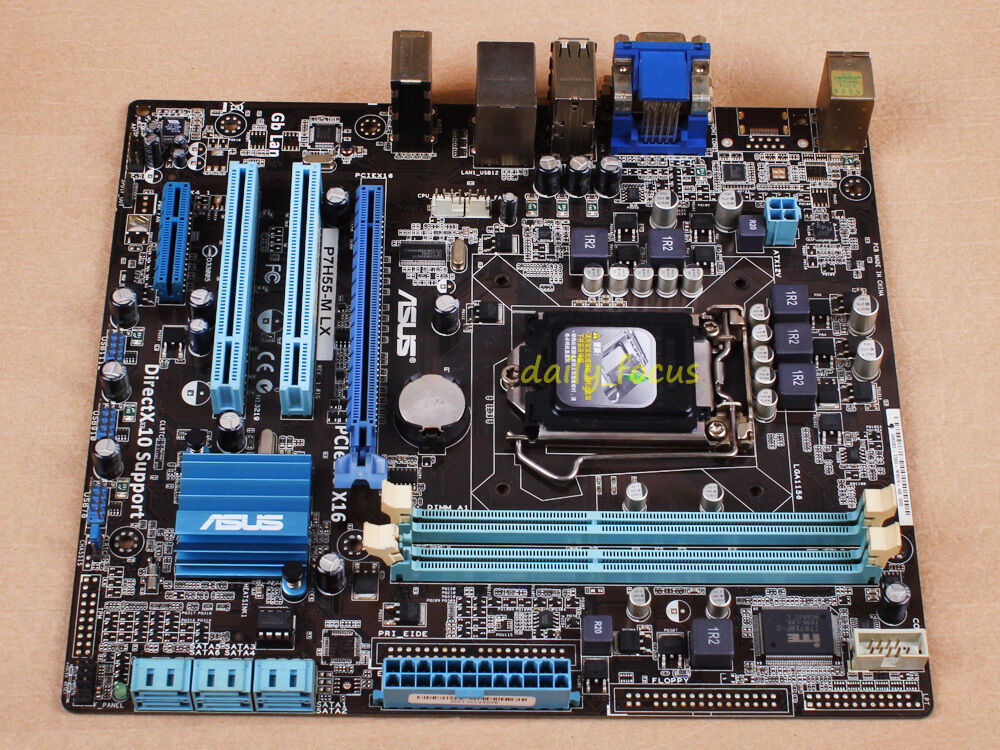

ASUS P7H55-M LX Motherboard LGA 1156 DDR3 Intel H55
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
ASUS P7H55-M LX Motherboard LGA 1156 DDR3 Intel H55
Price: CN $73.85
Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.
Packet Contained:
1 x motherboard
2 x SATA II cablesParts Specification:

CPU

Intel® Socket 1156 Core™ i7 Processor/Core™ i5 Processor/Core™ i3 Processor/ Pentium®
Support Intel next generation 32nm Multi-Core CPU

Chipset

Intel® H55

Memory

2 x DIMM, Max. 8 GB, DDR3 1333/1066 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots

1 x PCIe 2.0 x16
1 x PCIe 2.0 x4
2 x PCI

VGA

Multi-VGA Output Support: DVI-D and RGB Ports
Supports Microsoft® DirectX 10
D-SUB with Max. Resolution : 2048 X 1536 @75Hz
DVI with Max. Resolution : 1920 X 1200 @60Hz

Storage

Intel® H55 Express Chipset built-in
6 xSATA 3.0 Gb/s ports

LAN

Realtek 8112L Gigabit LAN PCIe controller

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC
- Support Multi-streaming

USB

12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)

ASUS Unique Features

ASUS Quiet Thermal Solution
- ASUS Q-Fan 2
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS MyLogo 2
ASUS AI NET 2
ASUS Anti-Surge

Back Panel I/O Ports

1 x DVI
1 x D-Sub
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x LAN(RJ45) port
6 x USB 2.0/1.1
3 -Channel Audio I/O

Internal I/O Connectors

3 x USB connectors support additional 6 USB ports
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x S/PDIF Out connector
COM connector
System Panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector

BIOS

64 Mb Flash ROM , AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a

Manageability

WOR by Ring, WOL, PXE, PME Wake up

Form Factor

uATX Form Factor
9.6 inch x 8.6 inch ( 24.4 cm x 22.9 cm )

Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching


Buy Now
