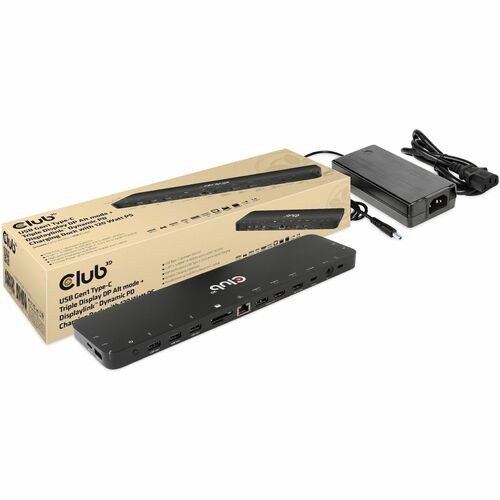

Club 3D CSV-1566 Docking Station - for Notebook, Monitor, Smartphone - Memory Card Reader - SD, microSD - 120 W - USB Type C - 4K - 3840 x 2160 - 5 x USB Type-A Ports - USB Type-A - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - DisplayPort - Wired - Gigabit Ethernet - Windows, macOS
The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio,video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile device(Apple,samsung phones, pads,etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts. Features: Support DP1.2 Alt mode and Displaylink™/ USB mode Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter)to be multiple video,data and power ports Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and window system HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz HDMI™ 2 (USB mode) supports max 4K/60Hz DP™(USB mode) support max 4K/60Hz Support DP++ Support smart charging with max 5V/2.4A Support Gigabit Ethernet to get access to super fast network Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously Support audio in and out Support max 120W DC power in and bypass 80W to host Short-circuit, over-current, over-voltage protection
ManufacturerClub 3D Manufacturer Part NumberCSV-1566 Brand NameClub 3D Product ModelCSV-1566 Product NameCSV-1566 Docking Station Product TypeDocking Station Technical Information Connectivity TechnologyWired Device SupportedNotebook,Monitor,Smartphone Memory Card ReaderYes Memory Card SupportedSD,microSD Screen Mode Supported4K Supported Resolutions3840 x 2160 Network & Communication Ethernet TechnologyGigabit Ethernet Interfaces/Ports Host InterfaceUSB Type C USB Type-AYes Number of USB Type-A Ports5 USB Type-CYes USB Type-C Detail1 Type-C Female for Connecting to Host Network (RJ-45)Yes Number of RJ-45 Ports1 DisplayPortYes DisplayPort Version1.2++ Headphone/Microphone Combo PortYes HDMIYes Number of HDMI Ports2 Software Operating System SupportedWindows,macOS Power Description Maximum Power Supply Wattage120 W Physical Characteristics Height11.97" Width3.03" Depth0.71" Weight (Approximate)12.63 oz Miscellaneous Package Contents CSV-1566 Docking Station PowerSupply Plugs USB Gen2 Type-C Cable 10G, 20V5A M/M, 1 m / 3.28 ft Quick Install Guide Brand CompatibilityApple,Samsung Environmentally FriendlyYes Environmental ComplianceRestriction of Hazardous Substances (RoHS) WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
