Specifications:

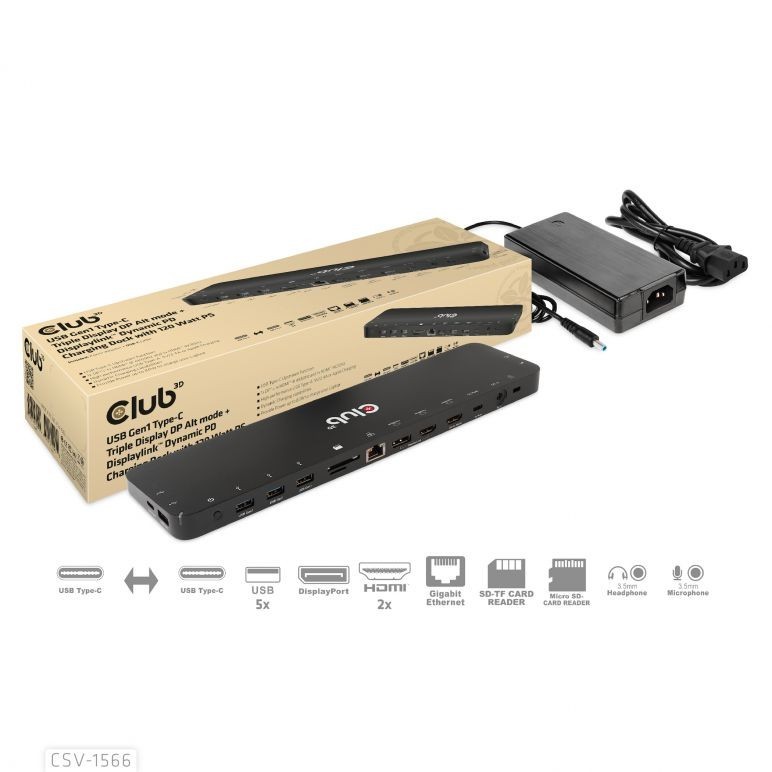

Product Name: USB Gen1 Type-C Triple Display DP Alt mode + Displaylink™ Dynamic PD Charging Dock with 120 Watt PSProduct Series: DockingProduct Code: CSV-1566EAN code: 8719214472092UPC code: 841615102310
Features:• Support DP1.2 Alt mode and Displaylink™/ USB mode• Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter) to be multiple video, data and power ports• Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and Window system• HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz• HDMI™ 2 (USB mode) supports max 4K/60Hz• DP™(USB mode) support max 4K/60Hz• Support DP++• Support smart charging with max 5V/2.4A• Support Gigabit Ethernet to get access to super fast network• Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously• Support audio in and out• Support max 120W DC power in and bypass 80W to host• Short-circuit, over-current, over-voltage protection
Available InterfacesInput:• 1x USB Gen1 Type-C Female for connecting to HostOutput:• 1x USB Gen1 Type-C Female (data)• 4x USB Gen1 Type-A Female• 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max.• 1x HDMI™ Female (DP Alt Mode)• 1x HDMI™ Female (USB Mode) DisplayLink™• 1x DP™ Female (USB Mode) DisplayLink™• 1x SD Female• 1x TF Female• 1x RJ45• 1x 3.5 mm Phone Socket (microphone and headphone)• 1x DC Power 20.5V
OS Support:• Microsoft Windows® 10• Mac OSX®
In the box:• CSV-1566 Docking Station• PowerSupply Input: 100-110/240VAC, Output: up to 120W, Various Power plugs depending on Country (Specify on order)• USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft• Quick Install Guide
Other info:• Box size: 36 x 11.5 x 6.5 cm / 14.17 x 4.53 x 2.56"• Device size: 30.4 x 7.7 x 1.8 cm / 11.97 x 3.03 x 0.7"• USB host Cable length approx.: 1m / 3.28 ft• Device Weight: 358 gr / 12.63oz• USB Cable Weight: 44 gr / 1.55 oz• Powersupply weight: depending on power plug ≈ 580 gr / 20.46 oz• Box Weight: 168gr. / 5.92 oz• LDPE Bag Weight: 5 gr / 0.18 oz• Total Weight: ≈ 726gr / 25.06 oz• Meets ROHS, FCC, and CE EMI requirements
