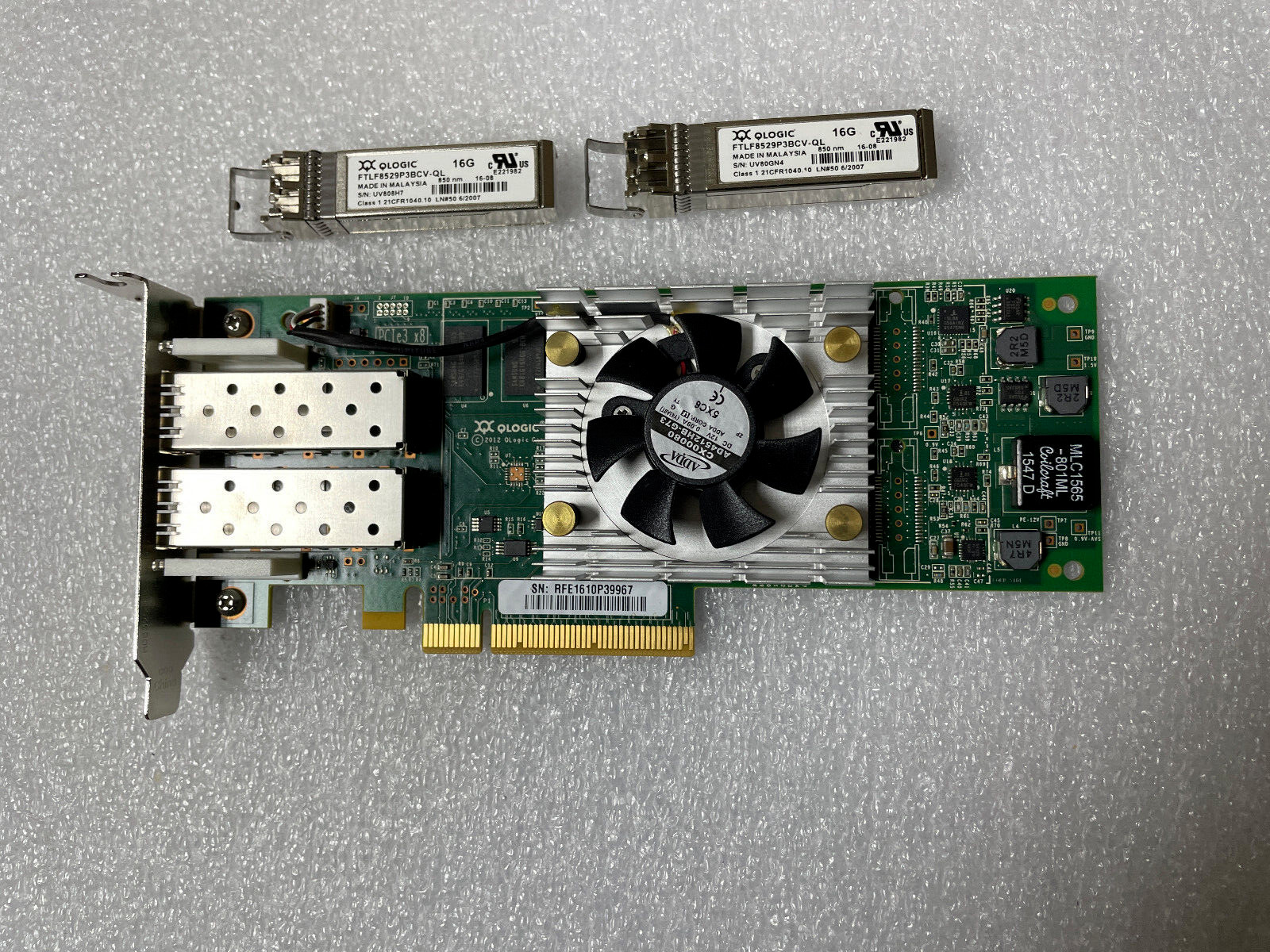

Fujitsu QLogic Dual Port 16Gb QLE2672-F HBA S26361-F5313-L202 + 2x 16Gb SFP's
Model: QLE2672-F
In Good Condition, Full Working OrderTestedLow Profile Card With Half Height Bracket
Includes 2x 16G SFP's
Included:

• 1 xFujitsu QLogic Dual Port 16Gb QLE2672-F HBA S26361-F5313-L202
• 2 x QLogic 16Gb FTLF8529P3BCV-QL SFP's

Specification:
Host Bus Interface Specifications

• Bus Interface:
• PCI Express 3.0 x4 and 2.0 x8 (x8 physical connector)
• Host Interrupts:
• INTx and MSI-X
• Compliance:
• PCI Express Base Specification, Rev. 3.0
• PCI Express Card Electromechanical Specification, Rev. 3.0
• PCI Bus Power Management Interface Specification, Rev. 1.2

Fibre Channel Specifications

• Throughput:
• 16Gbps line rate per port (maximum)
• Logins:
• Support for 2,048 concurrent logins and 2,048 active exchanges
• Expandable to 16K concurrent logins and 32K active exchanges
• Port style="font-weight: bold;">Compliance:
• SCSI-3 Fibre Channel Protocol (SCSI-FCP)
• Fibre Channel Tape (FC-TAPE) Profile
• SCSI Fibre Channel Protocol-2 (FCP-2)
• Second Generation Fibre Channel Generic Services (FC-GS-2)
• Third Generation Fibre Channel Generic Services (FC-GS-3)

Tools and Utilities

• Management Tools and Device a unified management tool (GUI and CLI) for FC, FCoE, iSCSI, and networking

Boot Support:

• BIOS, Unified Extensible Firmware Interface (UEFI), Forth code (FCode)

APIs:

• SNIA HBA API Provisioning and Management FeaturesThe following features require a supported Brocade switch running Fabric OS version 7.3.0a or later.
  • Performance:QoS CS_CTL
  • Diagnostics:ClearLink D_Port
  • Deployment and Ping
  • FC Traceroute
  • Fabric device management interface (FDMI) enhancements

Physical Gen 5 FC

Form Factor:

• Low profile card half height bracket

Environment and Equipment 0°C to 55°C (32°F to 131°F)

Storage: –20°C to 70°C (–4°F to (noncondensing): 10% to 90%

Storage: 5% to 95%
