Package Included:

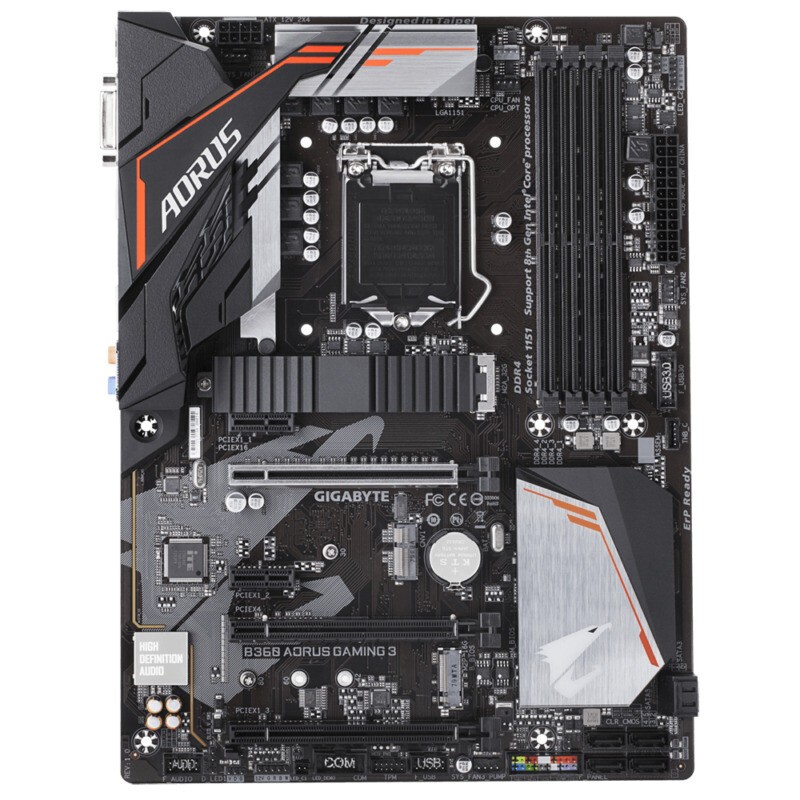

1 x motherboard

1 x I/O back panel

2 x SATA II cable

Technical Tips:

A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C.If the motherboard can't run correctly, please first check your CPUwhether can be compatible with our motherboard, then check your videocard or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.

Parts Specification:

CPU

Supports 8th generation processors in LGA1151 socket: Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor

L3 cache depends on CPU

Chipset

Intel® B360 Express Chipset

RAM

4 DDR4 DIMM slots, support up to 64 GB

Supports dual-channel memory technology

Support DDR4 2666/2400/2133 MHz

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

* To support 2666 MHz or XMP memory requires 8th and 9th generation Intel® Core™ i9 / i7 / i5 processors.

Display function

Built-in display capable processor - supports Intel® HD Graphics:

1 DVI-D socket, can support resolution up to 1920x1200@60 Hz

* This DVI-D socket does not support the function of converting to VGA.

1 HDMI socket, can support resolution up to 4096x2160@30 Hz

* Support HDMI 1.4 version and HDCP 2.2.

Supports *Maximum Shared Display Memory*1 GB

Sound effect

Built-in Realtek® ALC892 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Built-in Intel® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI Express x16 slot, supporting x16 running specification (PCIEX16)

* To maximize the performance of the display adapter, be sure to install the *PCIEX16 slot when installing a display adapter.

1 PCI Express x16 slot, supporting x4 running specification (PCIEX4)

* Since the PCIEX4 slot shares the bandwidth with the PCIEX1_2/PCIEX1_3 slot, when an expansion card is installed in the PCIEX1_2/PCIEX1_3 slot, the PCIEX4 slot operates at a maximum of x2 bandwidth.

1 PCI Express x16 slot, supporting x1 running specification (PCIEX1_3)

2 PCI Express x1 slots (PCIEX1_1, PCIEX1_2)

(All PCI Express slots support PCI Express 3.0)

1 M.2 Socket 1 socket for Intel® CNVi Wireless Module only (CNVI)

* Since the CNVi socket and the F_USB2 socket share the bandwidth, when the CNVi socket is installed with a wireless network module, one of the ports extended by the F_USB2 will be unavailable.

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™

Technology

Storage device interface

Built into the chipset:

1x M.2 socket (support Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2A_32G)

1x M.2 socket (support Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD) (M2P_16G)

6 SATA 3.0 sockets

Intel® Optane™ Memory Ready

*Only M2A_32G socket supports Intel Optane Memory system acceleration function.

USB

Built into the chipset:

1x USB 3.1 Gen 2 Type-A port (red) on the rear panel

1x USB Type-C™ port on the rear panel, supports USB 3.1 Gen 1

4 USB 3.1 Gen 1 ports (2 on the rear panel, 2 need to be connected from the USB socket on the motherboard via a cable)

6 USB 2.0/1.1 ports (4 on the rear panel, 2 need to be connected from the USB socket in the motherboard via a cable)

Internal socket

1 24-pin ATX main power socket

1 x 8-pin ATX 12V power socket

1 CPU fan header

1 CPU water cooling fan socket

2 system fan sockets

1 system fan/water cooling pump socket

2 digital LED strip power sockets

2 digital LED strip voltage adjustment pins

2 RGB (RGBW) LED strip power sockets

6 SATA 6Gb/s sockets

2 M.2 Socket 3 sockets

1 front control panel socket

1 front audio socket

1 USB 3.1 Gen 1 socket

1 USB 2.0/1.1 socket

1 S/PDIF output socket

1 Thunderbolt™ Expansion Daughter Card Socket

1 security encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)

1 serial interface socket

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 keyboard/mouse socket

1 DVI-D interface

1 HDMI interface

1 USB 3.1 Gen 2 Type-A port (red)

1x USB Type-C™ port, supports USB 3.1 Gen 1

2 USB 3.1 Gen 1 ports

4 USB 2.0/1.1 ports

1 RJ-45 interface

6 audio interfaces

I/O Controller

Built-in iTE® I/O controller chip

BIOS

2 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Dimensions

ATX; 30.5cm x 22.5cm
