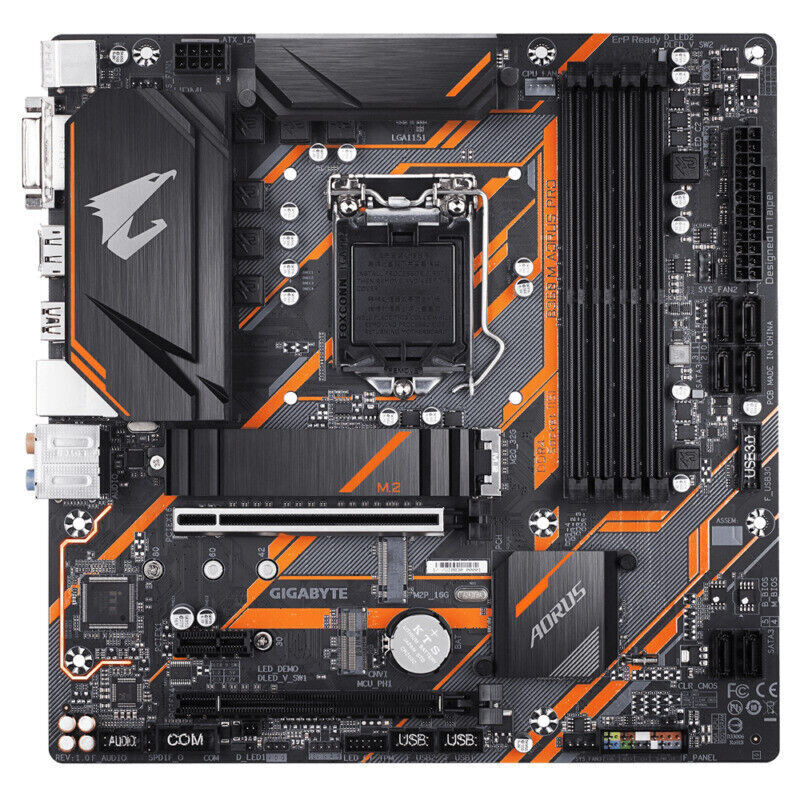

Gigabyte B360M AORUS PRO Motherboard Intel B360 LGA 1151 DDR4 M.2 Micro ATX

CPU

Supports 9th and 8th generation processors in LGA1151 socket: Intel® Core™ i7 processor / Intel® Core™ i5 processor / Intel® Core™ i3 processor / Intel® Pentium® processor / Intel® Celeron® processor

L3 cache depends on CPU

Chipset

Intel® B360 Express Chipset

RAM

4 DDR4 DIMM slots, support up to 64 GB

Supports dual-channel memory technology

Support DDR4 2666/2400/2133 MHz

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operating in non-ECC mode)

Support non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

* 8th Generation Intel® Core™ i9 / i7 / i5 processor is required to support 2666 MHz or XMP memory

Display function

Built-in display capable processor - supports Intel® HD Graphics:

1 DVI-D interface, can support up to 1920x1200@60 Hz resolution

* This DVI-D interface does not support the function of converting to VGA.

1 x DisplayPort interface, can support up to 4096x2304@60 Hz resolution

* Supports DisplayPort version 1.2 and HDCP 2.2, and HDR.

1 HDMI port, can support resolution up to 4096x2160@30 Hz

* Support HDMI 1.4 version and HDCP 2.2.

Sound effect

Built-in Realtek® ALC892 chip

Support High Definition Audio

Support 2/4/5.1/7.1 channel

Support S/PDIF output

The internet

Built-in Intel® GbE network chip (10/100/1000 Mbit)

Expansion slot

1 PCI Express x16 slot, supporting x16 running specification (PCIEX16)

* To maximize the performance of the display adapter, be sure to install the *PCIEX16 slot when installing a display adapter.

1 PCI Express x16 slot, supporting x4 running specification (PCIEX4)

1 PCI Express x1 slot

(All PCI Express slots support PCI Express 3.0)

1 x M.2 Socket 1 for Intel® CNVi Wireless Module only (CNVI)

Multiple Display Technology

Supports AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technology

Storage device interface

Built into the chipset:

1 x M.2 slot (support Socket 3, M key, type 2242/2260/2280/22110 PCI-E x4/x2 SSD) (M2Q_32G)

1 M.2 slot (support Socket 3, M key, type 2242/2260/2280 SATA and PCI-E x2 SSD) (M2P_16G)

6 SATA 3.0 sockets

USB

Chipset:

1 x USB 3.1 Gen 1 Type-C™ connector on rear panel

1x USB 3.1 Gen 2 Type-A port (red) on the rear panel

4 x USB 3.1 Gen 1 ports (2 on the rear panel, 2 need to be connected to the USB socket on the motherboard via a cable)

6 x USB 2.0/1.1 ports (2 on the rear panel, 4 need to be connected to the USB socket on the motherboard via a cable)

* Since the CNVi slot shares the bandwidth with the F_USB2 socket, when a wireless module is installed in the CNVi slot, one of the ports extended by the F_USB2 will be unavailable.

Internal socket

1 24-pin ATX main power socket

1 x 8-pin ATX 12V power socket

1 CPU fan header

3 system fan sockets

2 digital LED strip power sockets

2 digital LED strip voltage adjustment pins

2 RGB LED strip power sockets

6 SATA 6Gb/s sockets

2 M.2 Socket 3 sockets

1 front control panel socket

1 front audio socket

1 S/PDIF output socket

1 USB 3.1 Gen 1 socket

2 USB 2.0/1.1 sockets

1 security encryption module (TPM) socket (2x6 pin, only used with GC-TPM2.0_S)

1 serial port socket

1 clear CMOS data pin

Rear panel unit connection socket

1 PS/2 keyboard/mouse interface

1 DVI-D interface

1 HDMI interface

USB 3.1 Gen 1 (USB Type-C™)

1 x USB 3.1 Gen 2 Type-A

2 x USB 3.1 Gen 1

2 x USB 2.0/1.1

1 x RJ-45

6 x Audio Interfaces

I/O Controller

Built-in iTE® I/O controller chip

BIOS

2 x 128 Mbit flash

Use an authorized AMI UEFI BIOS

DualBIOS™ support

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

OS

Support Windows 10 64-bit

Form factor

Micro ATX; 24.4cm x 24.4cm

• 1 x motherboard.

• 2 x SATA II cables.

• 1 x I/O shield.
