Dear Buyers:
Welcome to our store.Before shipping, we'll test and examine all the items,ensure there is no defects or DOA.
We'll put the item into an Anti-electrostatic plastic bag, then put it into a safe package to avoid being injured by shipping.Warranty:
Our item warranty 90 days, the following reason we don't accept returns:
A. Wrong order.
B. The item didn't buy from us.
C. Damage the item on purpose.Kindly Tips:
A. If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
B. Please DO NOT use single-sidememory, most motherboards can't support suchmemory.C. We DO use genuine brandmemory, please do not use fakememory or if you're not sure whether yourmemoryfake or not, please do not try it on our motherboard.Packet Contained:

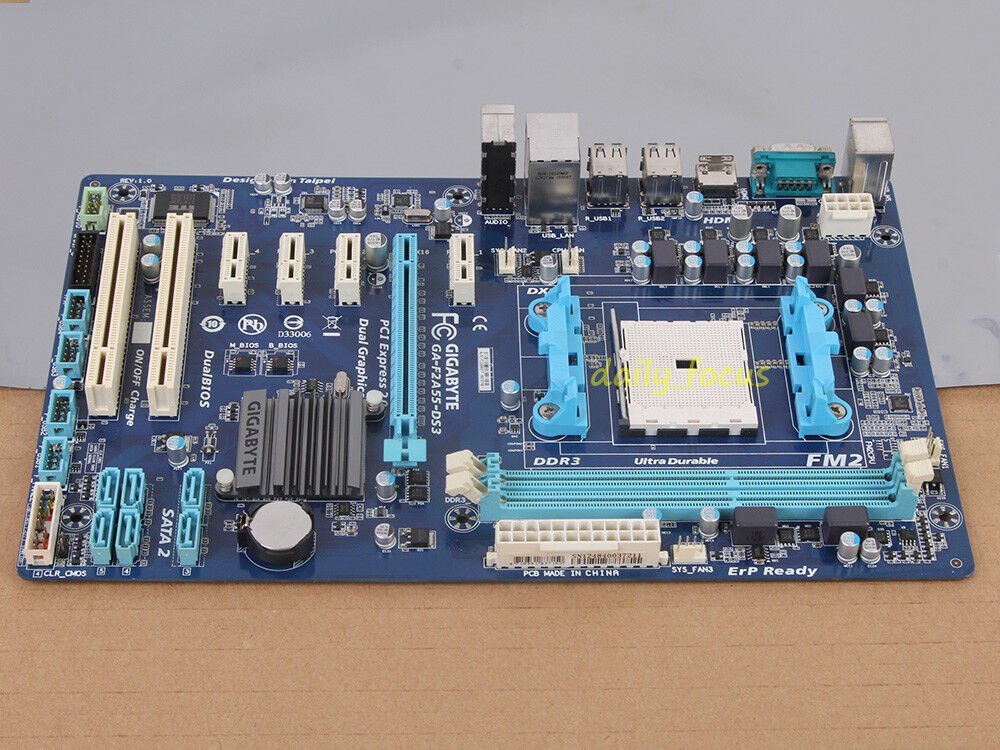

1 x motherboard
2 x SATA II cables
1 x I/O shield
Parts Specification:

APU

FM2 Socket:

1. AMD A series processors
2. AMD Athlon™ series processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD A55

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory

* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2. Dual channel memory architecture
3. Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules
4. Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules

“Memory support is dependent on memory module compatibility and system OS”.
(Please refer "Memory Support List" for more information.)

Onboard Graphics

APU with integrated AMD Radeon™ HD 8000/7000 series graphics:
* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.

1. 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

4. Support for S/PDIF Out

LAN

1. Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. 4 x PCI Express x1 slots

(All PCI Express slots conform to PCI Express 2.0 standard.)

3. 2 x PCI slots

Storage Interface

Chipset:

1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
2. Support for RAID 0, RAID 1, RAID 10, and JBOD

Multi-Graphics Technology

1. Support for AMD Dual Graphics technology

* Only A series APUs support AMD Dual Graphics.

USB

Chipset:

1. Up to 14 USB 2.0/1.1 ports (6 ports on the back panel, 8 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x APU fan header
5. 3 x system fan headers
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 4 x USB 2.0/1.1 headers
10. 1 x Clear CMOS jumper
11. 1 x Trusted Platform Module (TPM) header

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x serial port
4. 1 x HDMI port
5. 6 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. APU/System temperature detection
3. APU/System/Power fan speed detection
4. APU overheating warning
5. APU/System/Power fan fail warning
6. APU/System fan speed control

* Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install.

BIOS

1. 2 x 32 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for atBIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

5. Support for Smart Recovery 2
6. Support for Auto Green
7. Support for ON/OFF Charge
8. Support for 3TB+ Unlock
9. Support for Q-Share

Operating System

1. Support for Windows 8/7/Vista/XP

* Windows Vista/XP supported only with AMD FM2 Trinity APU.
* It requires Service Pack 3 to support Windows XP driver installation.

Form Factor

ATX Form Factor; 30.5cm x 19.0cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Shipping:
CountryAgentEstimate timeUSAExpedited Shipping3-5 business Shipping3-6 business daysUK,Germany,FranceExpedited Shipping4-6 business daysOther EuropeCountryExpedited Shipping5-8 business daysOther CountryExpedited Shipping6-10 business days Custom Tax:
Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.
Customer Service:
Dear buyer, we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
Thank you for watching
