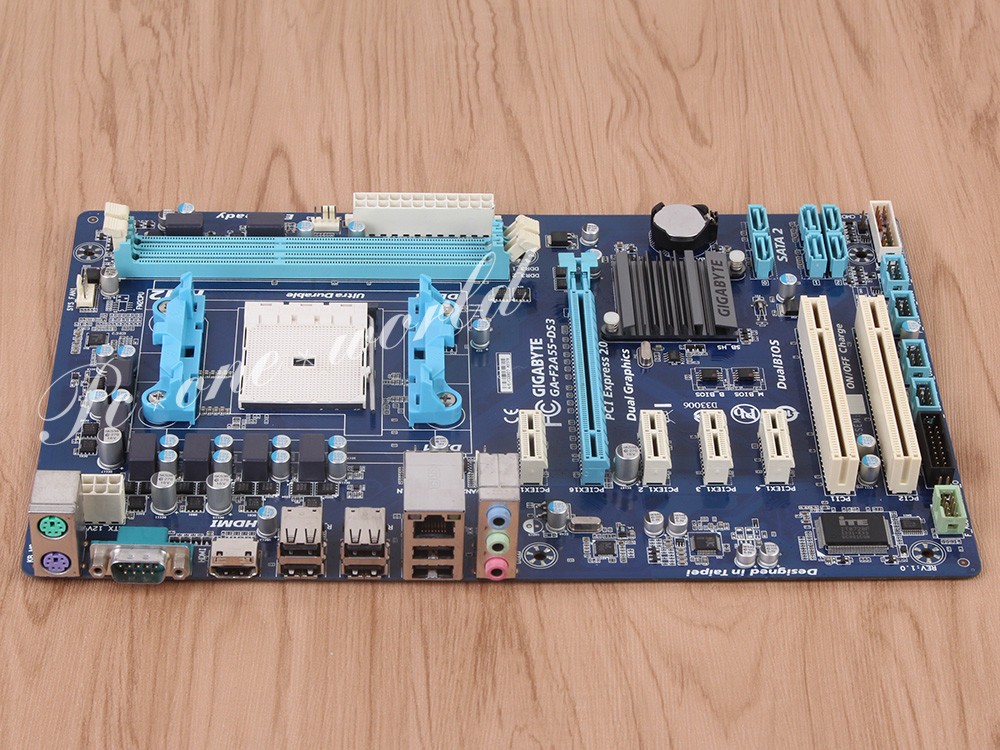

Welcome to our storeDear valued buyer, thank you for viewing our items.
We will provide you the best service and high quality products.
Each motherboard will be tested before shipping, we ensure it 100% working, and with safty package.
You must be happy to do business with us.

Warm Tips

1. Please do usegenuinebrand RAM, this motherboard can't work with fake RAM.2. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard.3. Most of "can't boot" problem was caused by RAM, please don't use "single side" RAM.Sepcifiction

APU

FM2 Socket:

1. AMD A series processors
2. AMD Athlon™ series processors

(Please refer "CPU Support List" for more information.)

Chipset

AMD A55

Memory

1. 2 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory

* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2. Dual channel memory architecture
3. Support for DDR3 2400(OC)/1866/1600/1333/1066 MHz memory modules
4. Support for AMD Memory Profile (AMP)/ Extreme Memory Profile (XMP) memory modules

“Memory support is dependent on memory module compatibility and system OS”.
(Please refer "Memory Support List" for more information.)

Onboard Graphics

APU with integrated AMD Radeon™ HD 8000/7000 series graphics:
* To use the onboard graphics ports, you must install an AMD APU with integrated graphics.

1. 1 x HDMI port, supporting a maximum resolution of 1920x1200

Audio

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

4. Support for S/PDIF Out

LAN

1. Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. 4 x PCI Express x1 slots

(All PCI Express slots conform to PCI Express 2.0 standard.)

3. 2 x PCI slots

Storage Interface

Chipset:

1. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
2. Support for RAID 0, RAID 1, RAID 10, and JBOD

Multi-Graphics Technology

1. Support for AMD Dual Graphics technology

* Only A series APUs support AMD Dual Graphics.

USB

Chipset:

1. Up to 14 USB 2.0/1.1 ports (6 ports on the back panel, 8 ports available through the internal USB headers)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 6 x SATA 3Gb/s connectors
4. 1 x APU fan header
5. 3 x system fan headers
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 4 x USB 2.0/1.1 headers
10. 1 x Clear CMOS jumper
11. 1 x Trusted Platform Module (TPM) header

Back Panel Connectors

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x serial port
4. 1 x HDMI port
5. 6 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

1. iTE I/O Controller Chip

H/W Monitoring

1. System voltage detection
2. APU/System temperature detection
3. APU/System/Power fan speed detection
4. APU overheating warning
5. APU/System/Power fan fail warning
6. APU/System fan speed control

* Whether the APU/system fan speed control function is supported will depend on the APU/system cooler you install.

BIOS

1. 2 x 32 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

1. Support for atBIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

5. Support for Smart Recovery 2
6. Support for Auto Green
7. Support for ON/OFF Charge
8. Support for 3TB+ Unlock
9. Support for Q-Share

Operating System

1. Support for Windows 8/7/Vista/XP

* Windows Vista/XP supported only with AMD FM2 Trinity APU.
* It requires Service Pack 3 to support Windows XP driver installation.

Form Factor

ATX Form Factor; 30.5cm x 19.0cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

AccessoriesPlease note only the following accessories come with the mobo:

• 1 x motherboard
• 2 x SATA cables
• 1 x I/O back panel

Shipping & Handling

Item will be shipped within 1-2 working days (business days) after full payment is received

To USA,AUS,CA,UK,EU,Europe,will be shipped by via air mail service,need around 10-25 days.and other countries need around 15-35 days.In case you haven't recieved the packet, please check with your local post office first, because the packet will arrive there. Duo to different country, some local post office can't offer more detailed tracking status in time, it perhaps only show the shipment infor just left Hong Kong.

If you want to get it fast(4-7 days),Please choose expedited shipping,It must add 18-30us shipping fee (according to your country).

Please note, it maybe bring the customs tax, please understand these fees were not included in your payment, these fees will be collected by the delivery company, when sign for the packet. Please inquire your country customs office about the tax before perchasing.

Custom tax

• Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
• Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Return PolicyDear friend, the warranty is 90 days, in case the mobo exist problem, and you want to refund or replace, plase read this before purchased.

• Refund: Refund can be accepted in 90 days after you signed the package. Please send back the item in original package with all the accessories in it. When you shipped back, please give us tracking number. Generally speaking,refund or replacement will be made upon receipt of the returned item.
• Replace: Replace can be accepted in 90 days after you signed the package. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Wrong order: Dear friend, I think you have thought over before bought the item. But in case you got a wrong mobo, please first check out your order form, whether we sent a wrong mobo or your ordered a wrong mobo. Please note if you order wrong, we don't accept the refund or replace.


Customer Service

• we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
• But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
• All communications are handled through Email. We strive to answer all emails as quickly as possible

pc*one*world
