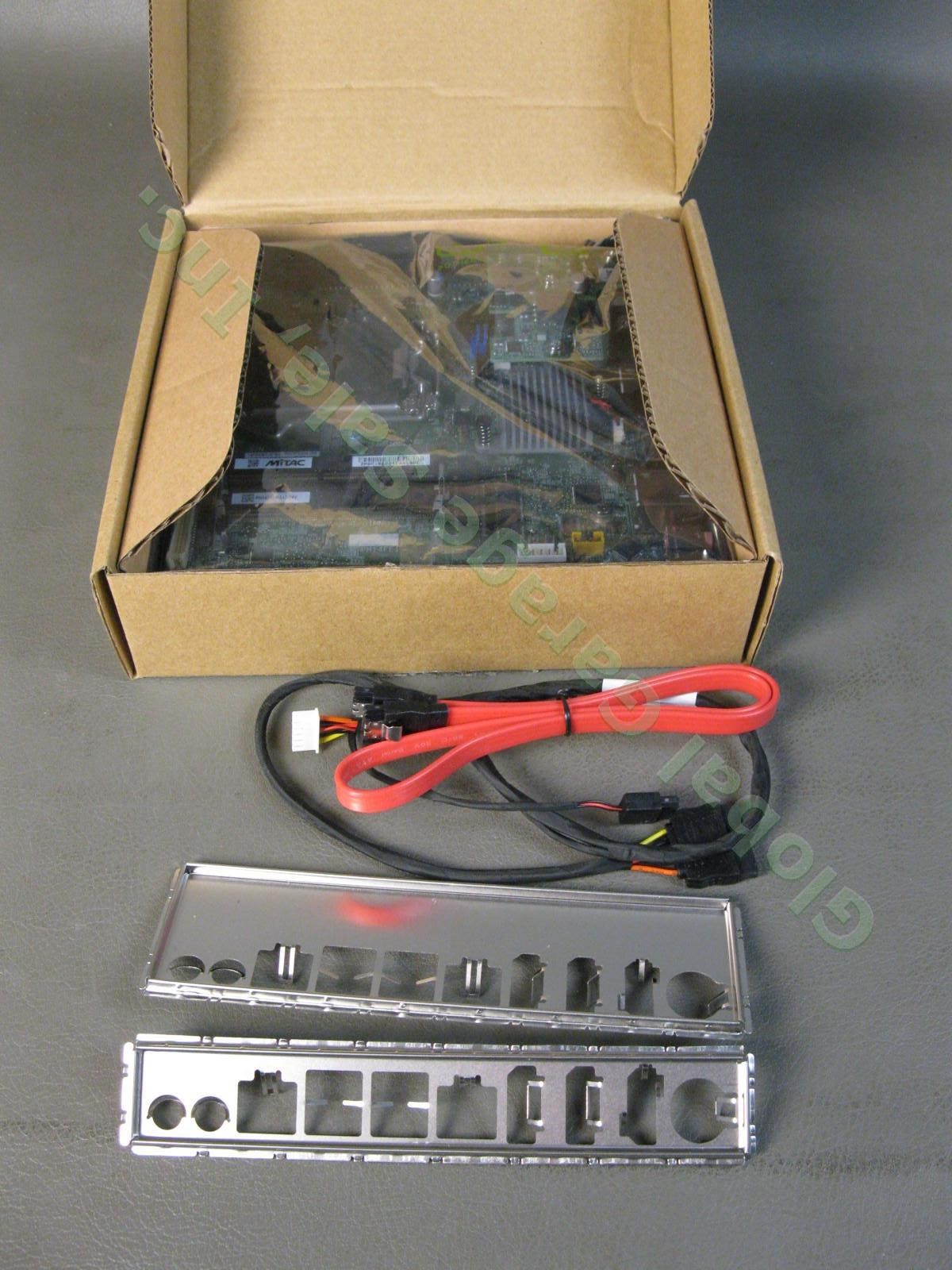

info is on our website 1. You drop it off2. We sell it on 3. You get a check! MiTAC Thin Mini ITX Motherboard PH14FEI-H310-24V LGA1151 HDMI DP LVDS eDP DDR4

Mini-ITX Form Factor Intel® Coffee Lake 9th & 8th Processor with Q370 / H310 Chipset

? Up to Intel® Coffee Lake Refresh 9th Gen Core i9 (8-core, 35W) & Core i7 (6-core, 95W) processor
? Intel® H310/Q370 Chipset
? Intel® vPro technology support (Q370)
? 2 x DDR4 SO-DIMM up to 32GB
? 5 phase power design
? Support triple display for HDMI, DisplayPort and LVDS/eDP
? 1 x M.2 M 2280, 1 x M.2 E 2230, 1 x mPCIe Full size, 1 x PCIe X16
? 2 x Intel® Gigabit Ethernet
? DC-in 12V (Optional: 12~24V)

MECHANICAL
FORM FACTOR
Mini-ITX: 6.7" x 6.7" (170 mm x 170 mm)
SYSTEM
PROCESSOR
9th & 8th Gen Intel Coffee Lake LGA1151 Socket Processor, Core i7/i5/i3 6-core TDP Max. 95W, Core i9 8-core TDP Max 35W
CHIPSET
Intel® H310 / Intel® Q370 (Support RAID 0 / 1 & vPro)
SYSTEM MEMORY
DDR4 2666MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
GRAPHICS
Intel® HD Graphics
ETHERNET
Intel® I219-LM Giga LAN + Intel® I210-AT Giga LAN
I/O CHIPSET
Nuvoton NCT6116D
AUDIO
Realtek® ALC662
TPM
TPM Header
EXPANSION SLOT
*H310 only support M.2 SATA SSD / PCIe 3.0 X16 slot / M.2 2230 E key (PCIe, USB 2.0) / M.2 2242 / 2280 M key (PCIe, SATA) / Mini PCIe Full size (PCIe / USB / SATA)
BIOS
AMI BIOS / 256 Mbit SPI
H/W MONITOR
Temperature Monitor / Voltage Monitor / Fan Monitor
WATCHDOG TIMER
1~255 steps by software program
SMART FAN CONTROL
CPU Fan / System Fan
GRAPHICS
2nd DISPLAYPORT
Up to 4K (4096 x 2304) @60 to 4K (4096 x 2160) @30 Hz
DISPLAYPORT
Up to 4K (4096 x 2304) @60 Hz
LVDS
Up to 1920 x 1200 @60 Hz
eDP (Option)
Up to 4K (4096 x 2304) @60 Hz
REAR I/O
USB
4 x USB 3.0 (H310) / 4 x USB 3.1 Gen 2 (Q370)
DISPLAY I/O
1 x HDMI 1.4 / 2 x DisplayPort 1.2
AUDIO I/O
1 x Mic-in / 1 x Line-out
LAN I/O
2 x RJ-45
SERIAL PORT
-
PS/2 PORT
-
OTHERS
DC-in 12V(DIN 4-pin)
INTERNAL CONNECTORS
STORAGE
2 x SATAIII
USB
5 x USB 2.0 (Q370) / 4 x USB 2.0 (H310)
DISPLAY I/O
1 x LVDS (*Optional eDP SKU available) / 1 x Backlight Connector
AUDIO I/O
1 x Stereo Speaker Header
SERIAL PORT
4 x RS232 (Two supports RS232 / 422 / 485 select by BIOS)
PARALLEL PORT
-
GPIO
1 x MiAPI Header (Programmable. Support 10-bit GPIO)
FAN
1 x 4-pin CPU Fan Header / 1 x 4-pin System Fan Header
POWER
1 x AT / ATX Mode Select Jumper / 1 x 4-pin ATX Power Connector
OTHERS
1 x CMOS Jumper / 1 x Front Audio Header (Mic-in & Line-out) / 1 x panel power select header / 1 x backlight power select header, / 1x buzzer header
POWER REQUIREMENT
POWER INPUT
*optional 12V-24V via DC to DC power board / DC-in 12V(DIN 4-pin)/ ATX 4-pin 12V
ENVIRONMENTAL
OPERATING TEMPERATURE
0 ~ 60°C (32 ~140°F)
STORAGE TEMPERATURE
-40 ~ 85°C (-40 ~185°F)
OPERATING HUMIDITY
10% ~ 95% R/H (Non-condensing)
