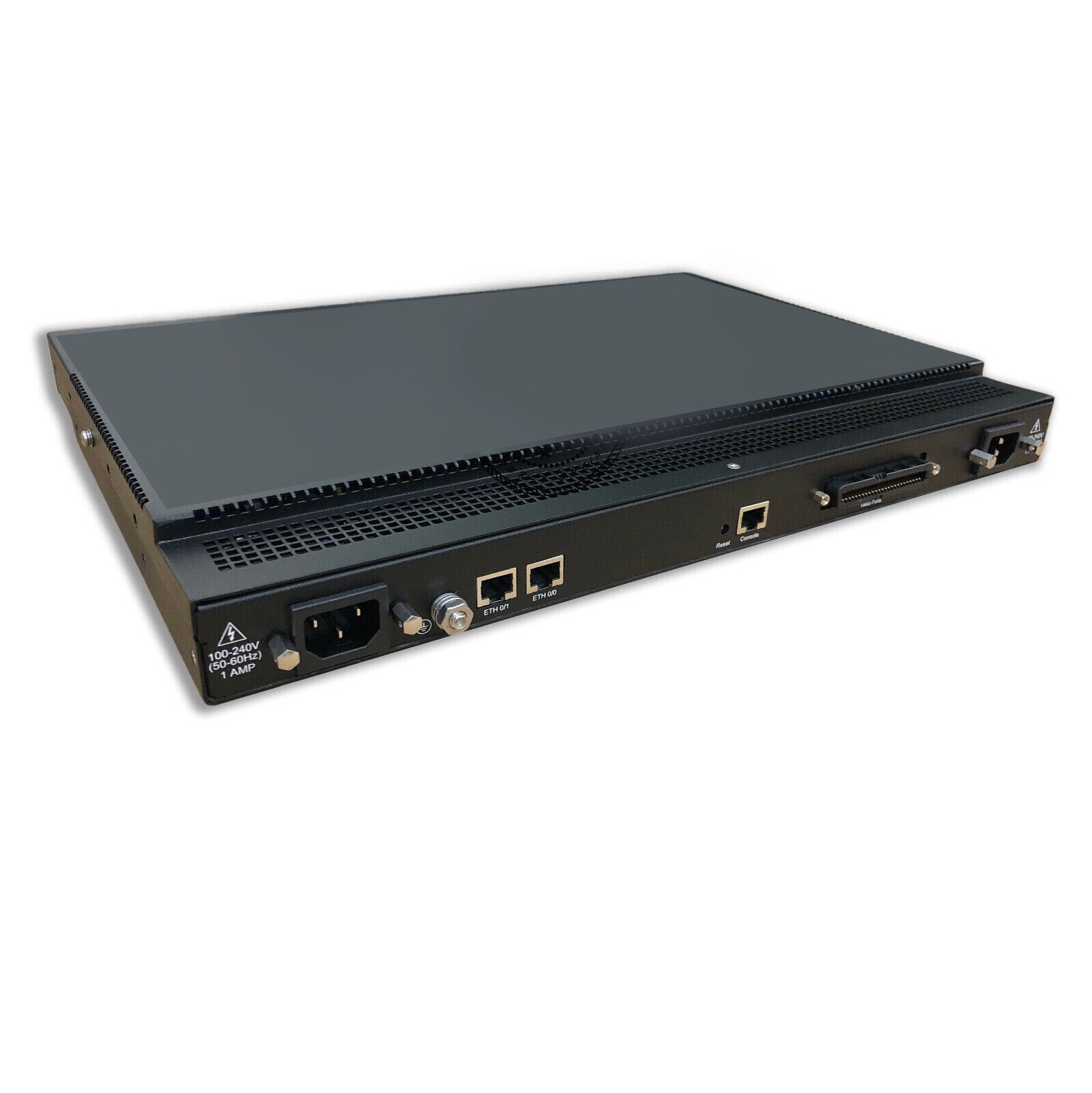

Alma.mr MSRP: $3,903.75 Patton SmartNode SN4924/JS/RUI - 802-4924
Description

The SmartNode IpChannelBank 24 FXO VoIP Gateway Router offers 2x10/100bTX interfaces and supports both H.323 and SIP protocols with redundant UI power. It features built-in Quality of Service (QoS) capabilities, including voice prioritization and traffic management through configurable service-policy profiles. Patton’s advanced DownStreamQoS technology ensures clear and uninterrupted voice communication, even over best-effort networks like the Internet. With packet classification via 802.1p, TOS, and DiffServ, it easily integrates with managed QoS networks. The SN4900 Series also provides robust security, including customizable security profiles, IPSec for data integrity, authentication, anti-replay, and data confidentiality, and firewall capabilities such as Access Control Lists (ACLs), IP address and port filtering, and Denial of Service (DoS) protection. Additionally, the second Ethernet port can be used as a DMZ. The SN4900 Series IpChannelBank offers easy setup, reliable operation, and third-party interoperability on a proven platform, delivering the investment protection needed for the future.

Key Features:

• Outstanding Interoperability - Interoperable for voice and T.38 fax with leading SIP service providers, soft-switch vendors and Asterisk IP-PBX
• Optional Integrated WAN uplink - Choose from V.35, X.21, T1/E1, ADSL or G.SHDSL data interfaces in addition to the two Ethernet ports.
• Full SIP and T.38 support - Supports the complete range of industry standard VoIP: SIP, H.323, T.38 fax, fax and modem bypass, DTMF relay. Codecs G.729, G.723 etc.
• Secure Toll-Quality VoIP - DownStreamQoS and Voice-over-VPN with adaptive traffic management and shaping for maximum voice quality and secure voice communication.
• Complete Access Routing - Two 10/100 Ethernet ports with auto MDI-X. Access router with NAT, Firewall, PPPoE, DHCP, DynDNS, multiple VLANs & VPN with IPSec*
• 12, 16, 24 or 32 FXS or FXO ports - Simultaneous voice or fax calls on all ports. Advanced local call switching.

Specs

• Capacity
• 12, 16, 24, 32 simultaneous VoIP calls Voice Signaling: SIPv2 H.323v4 (simultaneously with B2BUA capability)
• SIP call transfer, redirect
• DTMF in-band " " out-of-ban
• All tones programmable (dial, ringing, busy)


• Voice Processing
• CODEC G.711 a-law/mu-law, G.723, G.729ab,
• G.726, G.727. T.38 fax relay (9.6 k, 14.4 k)
• G.711 transparent fax and bypass
• Call Switching and Services
• Regular expression based call routing and number manipulation
• Number collection, distribution and hunt groups
• Transparent line extension
• FXS Connectivity
• 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnectorshort haul loop 1.1km @3REN
• EuroPOTS (ETSI EG201188)programmable AC impedance, feeding, ring and on-hook voltage
• Caller-ID FSK and ITU V.23/Bell 202 generation
• FXO Connectivity
• 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
• Programmable impedance, ring detection, tone detection, disconnect supervision
• Caller ID detection
• Data Services
• Two 10/100 Ethernet ports
• SIP call transfer, redirect
• DTMF in-band " " out-of-ban
• All tones programmable (dial, ringing, busy)
• Voice Processing
• CODEC G.711 a-law/mu-law, G.723, G.729ab,
• G.726, G.727. T.38 fax relay (9.6 k, 14.4 k)
• G.711 transparent fax and bypass
• Call Switching and Services
• Regular expression based call routing and number manipulation
• Number collection, distribution and hunt groups
• Transparent line extension
• FXS Connectivity
• 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
• short haul loop 1.1km @3REN
• EuroPOTS (ETSI EG201188)
• programmable AC impedance, feeding, ring and on-hook voltage
• Caller-ID FSK and ITU V.23/Bell 202 generation
• FXO Connectivity
• 2-wire Loopstart on 50pin (12 to 24 channels) or 64-pin (32 channels) Telcoconnector
• Programmable impedance, ring detection, tone detection, disconnect supervision
• Caller ID detection
• Data Services
• Two 10/100 Ethernet ports
• Complete IP access router
• DHCP Client " " server
• Packet fragmentation
• Static firewall, NAT, NAPT RFC 1631 access control lists
• DMZ port
• strong>Quality of Service
• Voice management, shaping and policing
• IEEE 802.1p, TOS, DiffServ labeling
• IEEE 802.1Q, VLAN tag insertion/deletion 4,096
• Optional WAN interfaces
• X.21/V.35 Frame Relay (8 PVCs); RFC1490, FRF.12 fragmentation; LMI, Q.933D, ANSI 617D, Gang of Four; PPP, PAP, CHAP, LCP, IPCP)
• T1/E1 (ITU-T G.703, ANSI T1.403; " " AMI, B8ZS, HDB3)
• ADSL2+ (Annex A, B, I, J, I, M, U-R2)
• G.SHDSL (G.991.2, Annex A, B, F, G, Up to 5.7Mbps, 8 PVCs, QoS)
• ManagementWeb/HTTP, CLI with local console and remote Telnet accessTFTP configuration " " firmware loadingSNMP MIB II and product MIBSecure auto-provisioning for both firmware and unit/subscriber configurationBuilt-in diagnostic tools (trace, debug, call generator)
• System
• CPU Motorola MPC875 @ 133 MHz
• Memory 32MB SDRAM/8MB Flash
• Power
• 100–240 VAC (50/60 Hz)
• Power dissipation:
• > 22W (60W max, model (non compliance: EN55022 and EN55024
• Safety compliance: EN 50950
• CE compliance
• FCC Part 15 Class A
• RoHS
