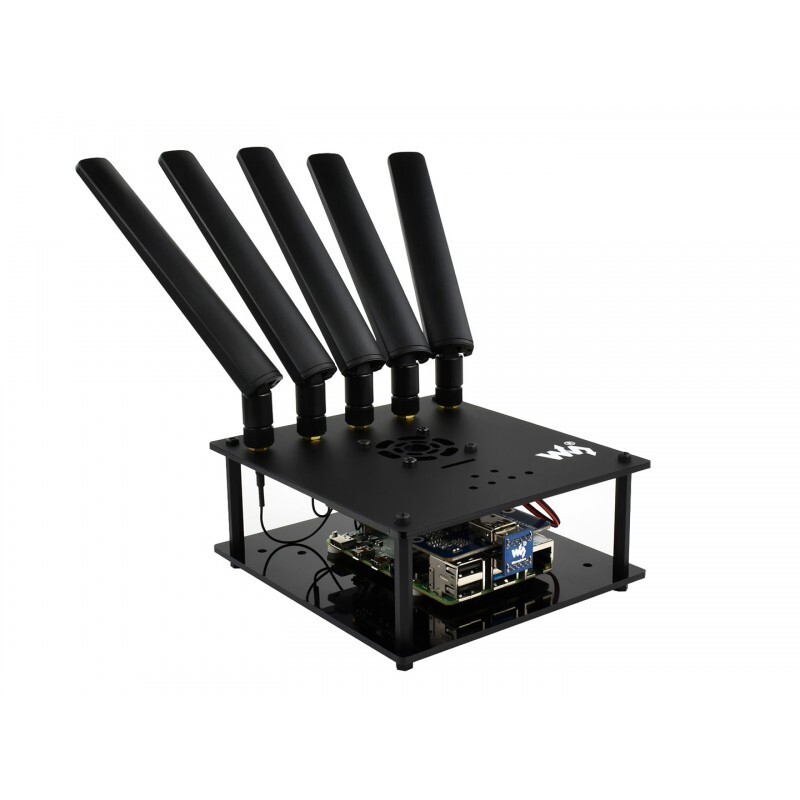

SIM8200EA-M2 5G HATFOR RASPBERRY PI Comes With SIM8200EA-M2, Supports 5G/4G/3G, Supports 5G SA And NSA,
Multi Mode Multi Band, Applicable For Regions With 5G Sub-6G Signal Coverage Except The Americas This 5G/4G/3G Raspberry Pi communication HAT adopts SIMCom5G module SIM8200EA-M2, supports 5G NSA and SA networking, providing data rate up to 2.4 Gbps (DL) / 500 Mbps (UL).
The base board features standard M2 connector, allows connecting with different 4G or 5G communication module with M2 package. There are also USB3.1 port, audio jack and decoder, SIM card slot, etc. Combined with our configuration script and development resources, it is easy to enable 5G high speed communication for the Raspberry Pi or computer. The 5G HAT is ideal for fast evaluating 5G modules, as well as being integrated into sorts of applications where 5G connection is required. Features At A Glance - Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Comes with SIM8200EA-M2 core module, based on Qualcomm snapdragon X55 platform, with multi mode multi band support
- 5G/4G/3G communication support
- USB3.1 port for testing AT commands, sending messages, cloud communication, making phone call, getting GNSS positioning data, etc.
- SIM card slot, supports 1.8V / 3V SIM card
- 2x LED indicators, easy to monitor the working status
- AT command support, based on 3GPP TS 27.007, 27.005 and V.25TER command set
- Onboard audio jack and audio decoder, allows audio operation like making phone call
- Comes with quality acrylic case and cooling fan, nice looking, better heat dissipation
- USB3.0 dual plug cable x1
- USB3.0 Adapter x1
- USB2.0 Adapter x1
- Black acrylic case panel x1
- 2×20PIN pin header x1
- 4010 cooling fan x1
- Screws pack x1
- GPS passive antenna x1
 |
|
