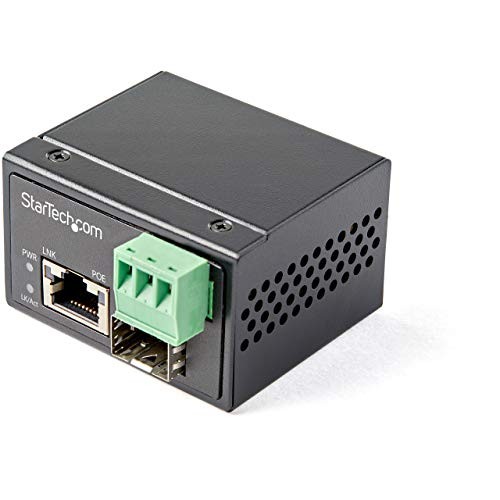

StarTech PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper Mini Size IP-30 (248820) StarTech PoE+ Industrial Fiber to Ethernet Media Converter 30W - SFP to RJ45 - SM/MM Fiber to Gigabit Copper Mini Size IP-30 (248820)

International Customers: All electronic products are packaged for sale in the US with US voltage.

Package Contents: Transceiver/Media Converter Terminal Block to Barrel Power Connector Adapter Quick-Start Guide Mounting Hardware Terminal Block

Environmentally Friendly: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

General InformationThis open SFP PoE fiber media converter offers an easy, inexpensive way to extend the reach of your data and power devices at remote locations using your network over fiber, using the SFP of your choice. It combines the data connectivity of a media converter with the flexible power supply capabilities of a PoE injector It converts a fiber network link to a POE-enabled copper RJ45 Ethernet connection to provide data and power to remote POE devices like security cameras, sensors, wireless, lighting, and more. The converter provides a powerful networking solution for campuses, warehouses, factories or any applications that require POE and connectivity over long distances. Designed for Small Spaces & Harsh Environments At 4.5 square inches and weighing approximately 80g, this mini media converter can be installed almost anywhere you need it and has been engineered to work in environments with large temperature changes. The converter also includes a set of DIN mounting rails for additional installation options. OPERATING TEMPERATURESTORAGE TEMPERATURE 40C to 75C -40C to 85C 104F to 167F104F to 185FUp to 30 Watts of Power for Connected Devices 30 watts of available support a wide range of devices such as: Surveillance Cameras Wireless Access Points Locks & Sensors Lighting Open SFP Slot to Leverage Your Current Infrastructure The Gigabit fiber media converter provides a cost-efficient way to connect remote devices over a fiber link. It features an open SFP slot that lets you choose the MSA compliant Gigabit SFP that best suits your fiber connection mode (single/multimode) and distance requirements. Industrial IoT and Bringing Connectivity Outside of the Data Center Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto-negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment. The IMC1GSFP30W is backed by a 2-year warranty and free lifetime technical support.Interfaces/PortsTotal Number of Ports: 1Network (RJ-45): YesNumber of PoE (RJ-45) Ports: 1Media & PerformanceMedia Type Supported: Optical FiberMedia Type Supported: Twisted PairFiber Mode Supported: Multi-modeFiber Mode Supported: Single-modeI/O ExpansionsNumber of Total Expansion Slots: 1Expansion Slot Type: SFP (mini-GBIC)Number of SFP Slots: 1Network & CommunicationEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-TNetwork Technology: 1000Base-XPower DescriptionPower Source: PoE+Power Consumption: 30 WPlug/Connector Type: Terminal Block (3 Wire)Plug/Connector Type: Type NPhysical CharacteristicsForm Factor: DIN Rail MountableForm Factor: Wall MountableHeight: 1.9"Width: 1.4"Depth: 2.3"Weight (Approximate): 2.80 ozMiscellaneousPackage Contents: Transceiver/Media Converter Terminal Block to Barrel Power Connector Adapter Quick-Start Guide Mounting Hardware Terminal Block Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: WEEECountry of Origin: TaiwanWarrantyLimited Warranty: 2 Year
30W POE FIBER TO ETHERNET SpecificationPower DescriptionPlug/Connector Type

• Terminal Block (3 Wire)
• Type N

Power SourcePoE+Power Consumption30 WPhysical CharacteristicsForm Factor

• DIN Rail Mountable
• Wall Mountable

Weight (Approximate)2.80 Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesTotal Number of Ports1Number of PoE (RJ-45) Ports1I/O ExpansionsTotal Number of Expansion Slots1Number of SFP Slots1Expansion Slot TypeSFP (mini-GBIC)General InformationBrand Name
