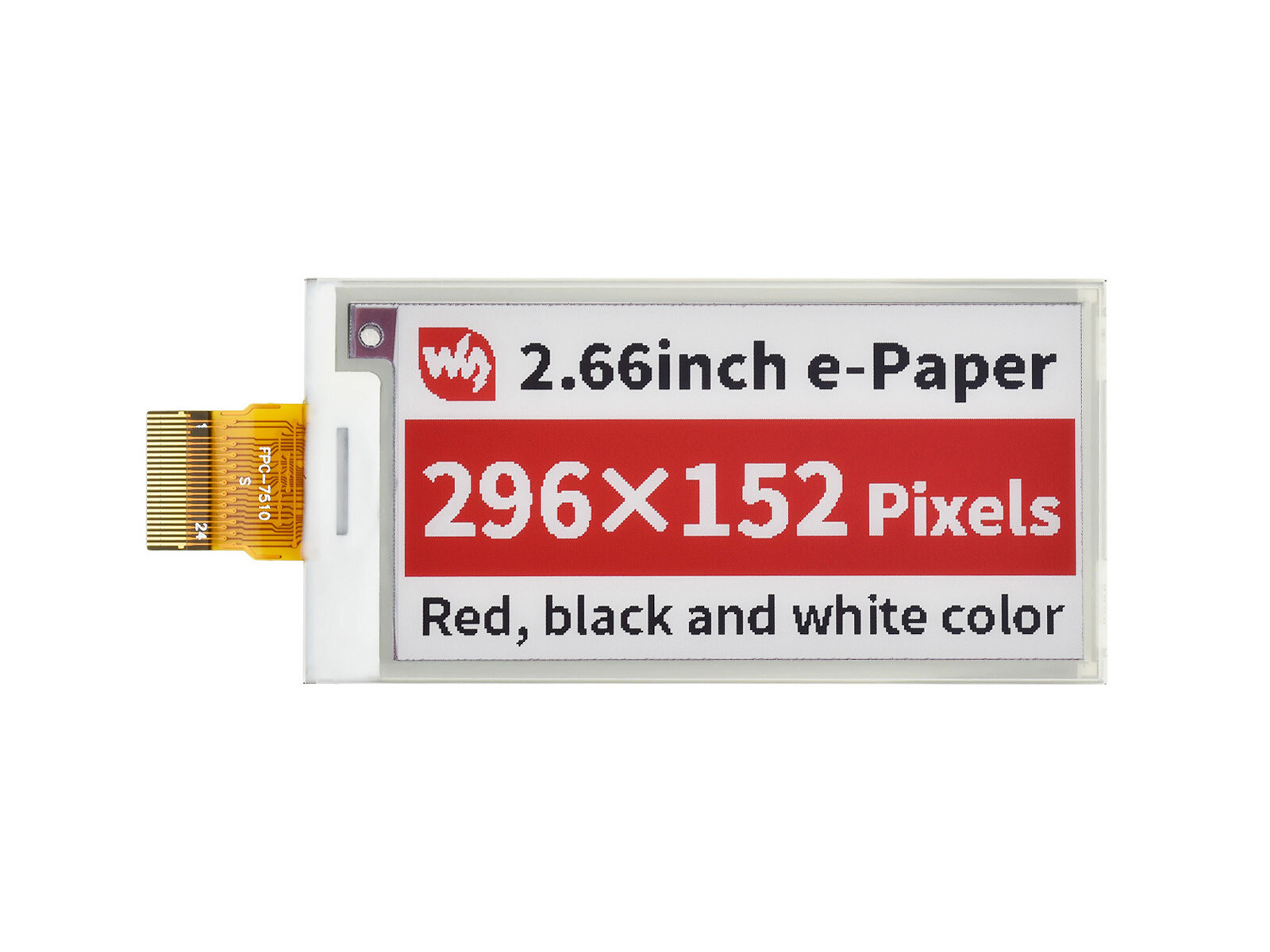

2.66inch E-Paper (B) E-Ink Raw Display, 296×152 Pixels, Red / Black / White Three-Color, SPI Interface, Without PCB2.66" E-PAPER (B)

Low Power, Wide Viewing Angle, Paper-Like Displaying Without Electricity

Ideal for price tags, shelf labels, industrial instruments...

• Size2.66"
• Resolution296×152
• Viewing Angle>170°
• Display ColorRed / Black / White
• Grey Scale2
• CommunicationSPI
• Display PanelE-paper
• ExperiencePaper-like
• EnvironmentAmbient Light Required
• Display TypePassively Reflective

Features At A Glance

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (examples for Raspberry Pi/Jetson VOLTAGE3.3VDISPLAY COLORred, black, whiteINTERFACE3-wire SPI, 4-wire SPIGREY SCALE2OUTLINE DIMENSIONS36.304 × 71.820 × 1.0mmFULL REFRESH TIME15sDISPLAY SIZE30.704 × 60.088mmREFRESH POWER16mW(typ.)DOT PITCH0.202 × 0.203mmSTANDBY CURRENT<0.01uA (almost none)RESOLUTION296 × 152 pixelsVIEWING ANGLE>170°
  Advantages Of EINK

  E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
  E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

  Application Examples

  Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...

  Outline DimensionsRecommended

  To fastly get started with this raw display, please consider the following driver boards:

  • e-Paper Driver HAT(Universal)
  • e-Paper Shield(Arduino/NUCLEO)
  • e-Paper ESP8266 Driver Board(WiFi)
  • e-Paper ESP32 Driver Board(WiFi / Bluetooth)
  Selection GuidePART NUMBERCOLORSGREY SCALERESOLUTIONDISPLAY SIZE (MM)OUTLINE DIMENSION (MM)FULL REFRESH TIME (S)PARTIAL REFRESHFLEXIBLEINTERFACE1.02inch e-Paperblack, white2128×8021.76 × 14.0032.57 × 18.60 × 0.982√SPI1.54inch e-Paperblack, white2200×20027.60 × 27.6037.32 × 31.80 × 1.052√SPI1.54inch e-Paper (B)red, black, white2200×20027.60 × 27.6037.32 × 31.80 × 1.058SPI1.54inch e-Paper (C)yellow, black, white2152×15227.51 × 27.5137.30 × 31.80 × 0.9827SPI2.13inch e-Paperblack, white2250×12248.55 × 23.7159.20 × 29.20 × 1.052√SPI2.13inch e-Paper (B)red, black, white2212×10448.55 × 23.7159.20 × 29.20 × 0.9815SPI2.13inch e-Paper (C)yellow, black, white2212×10448.55 × 23.7159.20 × 29.20 × 0.9815SPI2.13inch e-Paper (D)black, white2212×10448.55 × 23.7159.20 × 29.20 × 0.302√√SPI2.66inch e-Paperblack, white2296×15230.704 × 60.08836.304 × 71.820 × 1.006√SPI2.66inch e-Paper (B)red, black, white2296×15230.704 × 60.08836.304 × 71.820 × 1.0015SPI2.7inch e-Paperblack, white4264×17657.29 × 38.1970.42 × 45.80 × 0.986SPI2.7inch e-Paper (B)red, black, white2264×17657.29 × 38.1970.42 × 45.80 × 0.9815SPI2.9inch e-Paperblack, white2296×12866.89 × 29.0579.00 × 36.70 × 1.052√SPI2.9inch e-Paper (B)red, black, white2296×12866.89 × 29.0579.00 × 36.70 × 1.1815SPI2.9inch e-Paper (C)yellow, black, white2296×12866.89 × 29.0579.00 × 36.70 × 1.1815SPI2.9inch e-Paper (D)black, white2296×12866.90 × 29.0679.00 × 36.70 × 0.342√√SPI3.7inch e-Paperblack, white4480×28047.32 × 81.1254.90 × 93.30 × 0.783√SPI4.2inch e-Paperblack, white4400×30084.80 × 63.6091.00 × 77.00 × 1.184SPI4.2inch e-Paper (B)red, black, white2400×30084.80 × 63.6090.10 × 77.00 × 1.1815SPI4.2inch e-Paper (C)yellow, black, white2400×30084.80 × 63.6090.10 × 77.00 × 1.1815SPI5.65inch e-Paper (F)7-Color2600×448114.9 × 85.8125.4 × 99.5 × 0.9115SPI5.83inch e-Paperblack, white2648×480119.232 × 88.320125.40 × 99.50 × 1.185SPI5.83inch e-Paper (B)red, black, white2648×480119.232 × 88.320125.40 × 99.50 × 1.1820SPI5.83inch e-Paper (C)yellow, black, white2600×448118.80 × 88.26125.40 × 99.50 × 1.1826SPI6inch HD e-Paperblack, white161448×1072122.40 × 90.60138.40 × 101.80 × 1.01<1√Parallel port7.5inch e-Paperblack, white2800×480163.20 × 97.92170.20 × 111.20 × 1.185SPI7.5inch HD e-Paperblack, white2880×528163.24 × 97.94170.20 × 111.20 × 1.255SPI7.5inch e-Paper (B)red, black, white2800×480163.20 × 97.92170.20 × 111.20 × 1.1816SPI7.5inch HD e-Paper (B)red, black, white2880×528163.24 × 97.94170.20 × 111.20 × 1.2521SPI7.5inch e-Paper (C)yellow, black, white2640×384163.20 × 97.92170.20 × 111.20 × 1.1816SPI7.8inch e-Paperblack, white161872×1404158.18 × 118.64173.80 × 127.60 × 0.78<1√Parallel port9.7inch e-Paperblack, white161200×825202.8 × 139.43218.80 × 156.425 × 1.15<1√Parallel port10.3inch e-Paperblack, white161872×1404209.66 × 157.25216.70 × 174.40 × 0.78<1√Parallel port10.3inch e-Paper (D)black, white161872×1404209.66 × 157.25227.70 × 165.80 × 0.647<1√√Parallel port12.48inch e-Paperblack, white21304×984252.98 × 190.90261.50 × 211.00 × 0.30<8SPI12.48inch e-Paper (B)red, black, white21304×984252.98 × 190.90261.50 × 211.00 × 0.30<16SPI

  PACKAGE CONTENT

  Weight:0.005 kg

  This is a raw display, for easy testing and comparing, please consider the one with driver board:2.66inch e-Paper Module (B)
  1. 2.66inch e-Paper (B) x1
