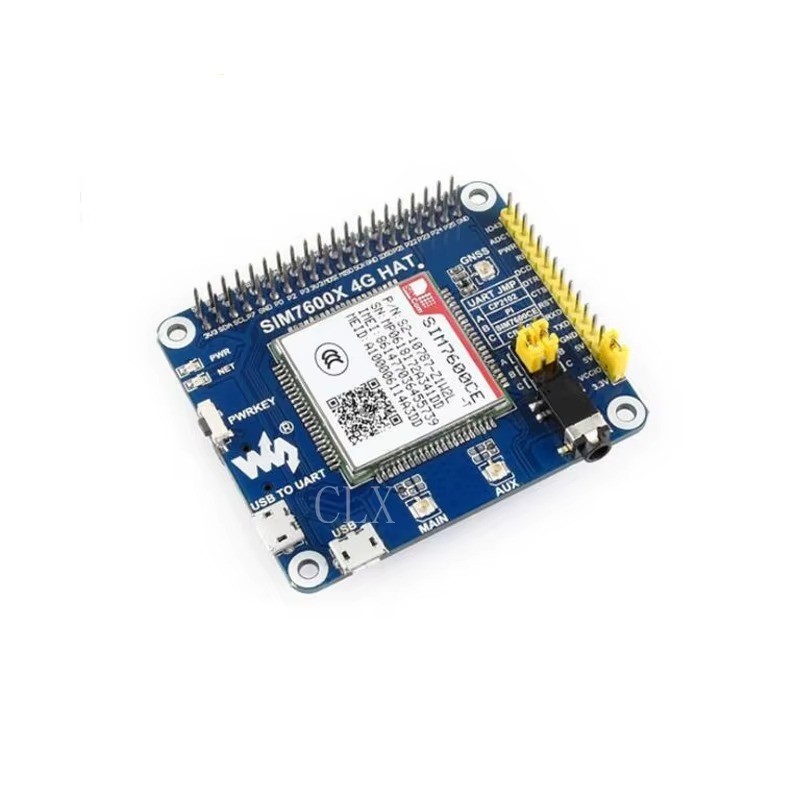

📡 Waveshare SIM7600E-H 4G/3G/2G GNSS HAT
4G LTE CAT4 Communication + GPS Positioning for Raspberry Pi
Important: This module's cellular bands (LTE-FDD B1/B3/B5/B7/B8/B20, LTE-TDD B38/B40/B41, UMTS B1/B5/B8, GSM 900/1800MHz) are optimized for Southeast Asia, West Asia, Europe and Africa carriers. Please verify your local carrier's supported bands before purchasing, as it may not connect to North American cellular networks.Overview
Key Features📶 4G/3G/2G Connectivity
Supports dial-up internet, phone calls, SMS, MMS, TCP/UDP, HTTP/FTP and more.
🛰️ GNSS Positioning
16-channel receiver with GPS, BeiDou and GLONASS support, position accuracy under 2.5m CEP.
🔌 Raspberry Pi Ready
Compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ via GPIO header.
🎧 Audio & Debug Ports
Onboard audio jack for calls, USB and UART interfaces for AT command testing and debugging.
💳 Card Slots
SIM card slot (1.8V/3V) and TF card slot for local data storage.
⚙️ Configurable Voltage
Onboard voltage translator lets you set operating voltage to 3.3V or 5V via LTE CAT4 / 3G / 2GDownlink SpeedUp to 150 Mbps (LTE CAT4)Uplink SpeedUp to 50 Mbps (LTE CAT4)GNSS SupportGPS, BeiDou, GLONASSPosition Accuracy<2.5m CEPCold Start / Hot Start<35s / <1sPower Supply5V, configurable 3.3V/5V via jumperOperating Temperature-30°C to 80°CDimensions56.21mm x 65.15mmCompatible WithRaspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+, Arduino, STM32Applicable RegionSoutheast Asia, West Asia, Europe, AfricaPackage ContentsSIM7600E-H 4G HATx1LTE Antennax1GPS External Antennax1USB Type-A to Micro Cablex2Raspberry Pi Screw Packx1
Product ImagesFAQWill this work with my carrier?
Please check the band specifications above against your local carrier's supported frequencies before purchasing, as this module is optimized for Southeast Asia, West Asia, Europe and Africa networks.
Is a SIM card included?
No, a standard 1.8V/3V SIM card is required but not included.
Does it work with Arduino or STM32?
Yes, breakout UART control pins allow connection with Arduino, STM32 and other host boards, in addition to Raspberry Pi.
What GNSS systems are supported?
GPS, BeiDou and GLONASS satellite positioning are all supported for accurate location data.
