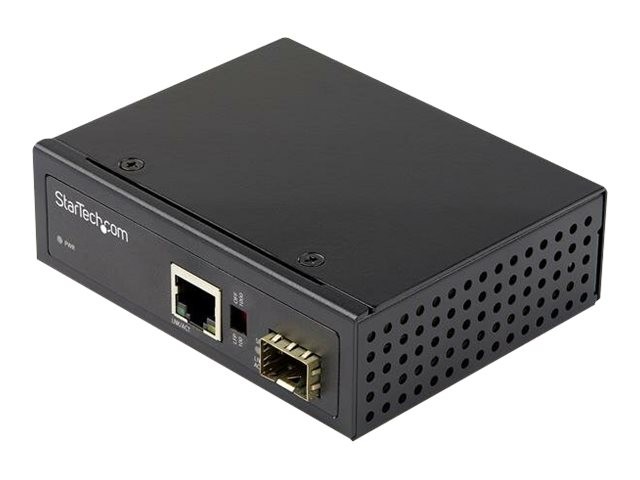

StarTech Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/CAT6 - SM/MM Fiber to Copper Gigabit Network IP-30 12V Input (248818) StarTech Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/CAT6 - SM/MM Fiber to Copper Gigabit Network IP-30 12V Input (248818)

International Customers: All electronic products are packaged for sale in the US with US voltage.

End of Life Manual Availability: Yes

WEEE Statement: RoHS Declaration URL: Contents: Transceiver/Media Converter Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block

Environmental Certification: EU RoHS

Environmentally Friendly: Yes

REACH Declaration URL: free of SVHC: Yes

Environmental Compliance:

Restriction of Hazardous Substances (RoHS) 2
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

Product Description

This item is brand-new, factory sealed.

Industrial Fiber to Ethernet Media Converter - 1Gbps SFP to RJ45/ Cat6 - Singlemode/Multimode Optical Fiber to Copper Gigabit Network - 12-56V DC - IP-30/ -40 to +75C (IMC1GSFP)

• INDUSTRIAL FIBER TO ETHERNET MEDIA CONVERTER: Extends & converts 1Gbps fiber to RJ45 copper w/ hardened operating temp -40C to 75C; powered by 12V-56V DC for compatibility with solar, auto & rail
• OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
• ROBUST DESIGN: Industrial Gigabit Network Media Converter w/MTBF of 500,000+ hrs @ 50C | Vibration, shock & free fall rated | Rugged IP-30 aluminum housing
• TECH SPECS: 1 Gbps | 12V-56VDC | Single Mode SMF & Multi-Mode MMF Fiber | 16K Jumbo Frames | LFP | IP-30 Housing | DIN or Wall Mountable | Terminal Block and/or Barrel Adapter for power redundancy
• STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; this media converter is backed for 2-years by , including free 24/5 North America based multi-lingual tech support

• Brand: StarTech
• Item Weight: 13 ounces
• Product Dimensions: 7 x 9 x 3 inches
• Item Dimensions LxWxH: 7 x 9 x 3 inches
• Manufacturer: STARTECH.COM

An industrial media converter that converts fiber to copper at a network endpoint.

A Flexible Solution Covering Different Requirements

This media converter features an open SFP slot for any standard gigabit SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 12V-56V DC for solar, automotive, rail, and other applications and requires a minimum 12V power input. Includes hardware for DIN rail or wall mounting.

For Mission-Critical Applications

Designed with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

The IMC1GSFP is backed by a 2-year warranty and free lifetime technical support.

Package Contents:

• Transceiver/Media Converter
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block to Barrel Power Connector Adapter
• Terminal Block

SpecificationPower DescriptionPlug/Connector Type

• Terminal Block (4 Wire)
• Type N

Power SourcePower SupplyPower Consumption3 WPhysical CharacteristicsForm Factor

• DIN Rail Mountable
• Wall Mountable

Weight (Approximate)5.10 Warranty2 YearInterfaces/PortsNetwork (RJ-45)YesTotal Number of Ports1Number of Network (RJ-45) Ports1I/O ExpansionsTotal Number of Expansion Slots1Number of SFP Slots1Expansion Slot TypeSFP (mini-GBIC)General InformationBrand Name
